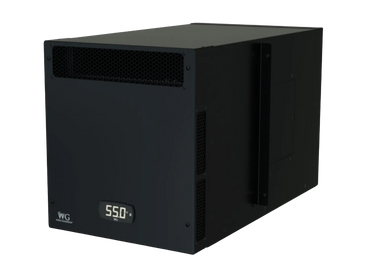

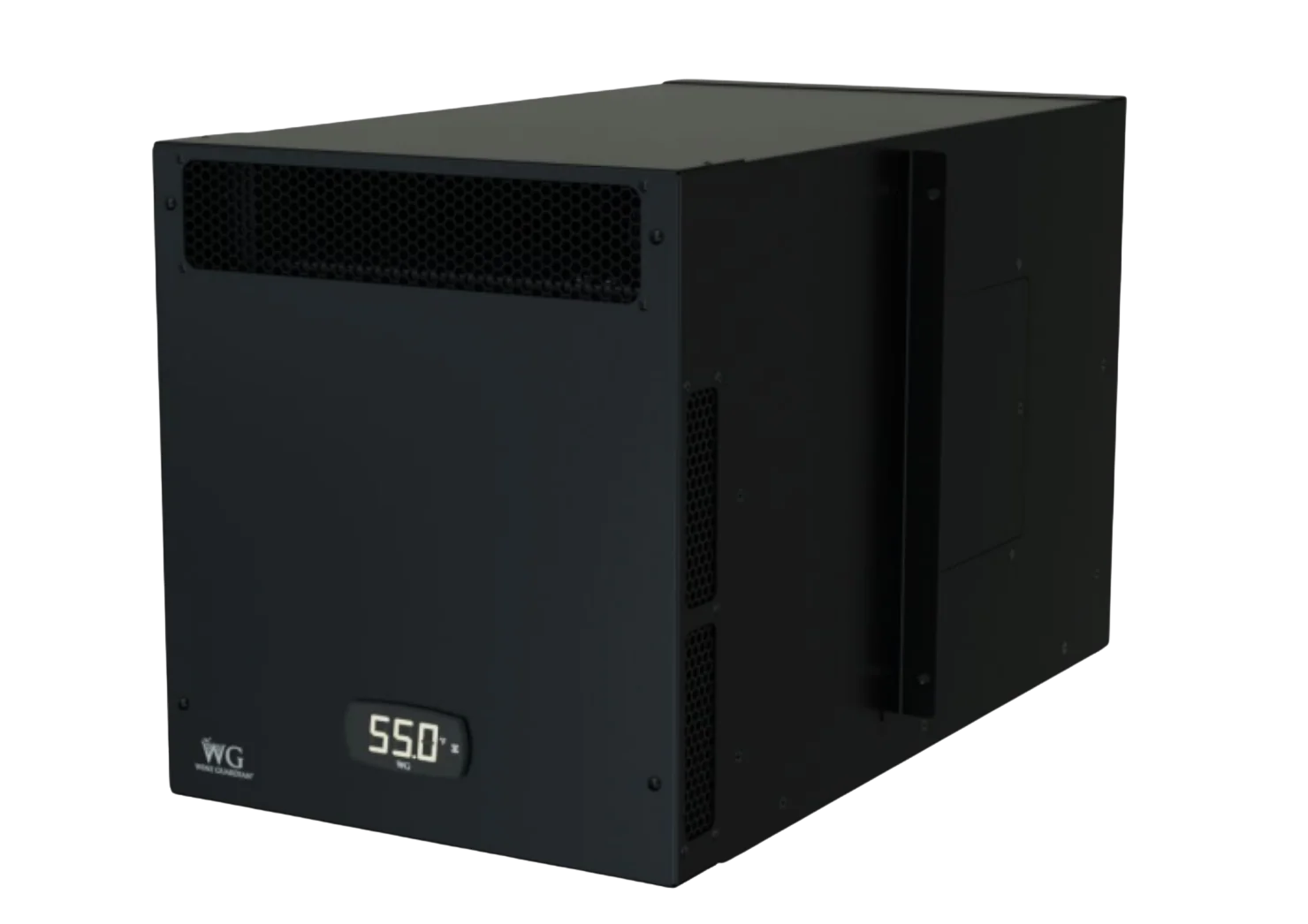

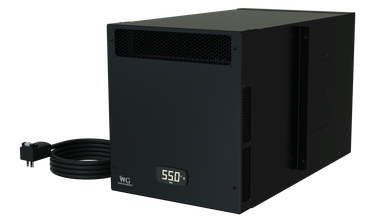

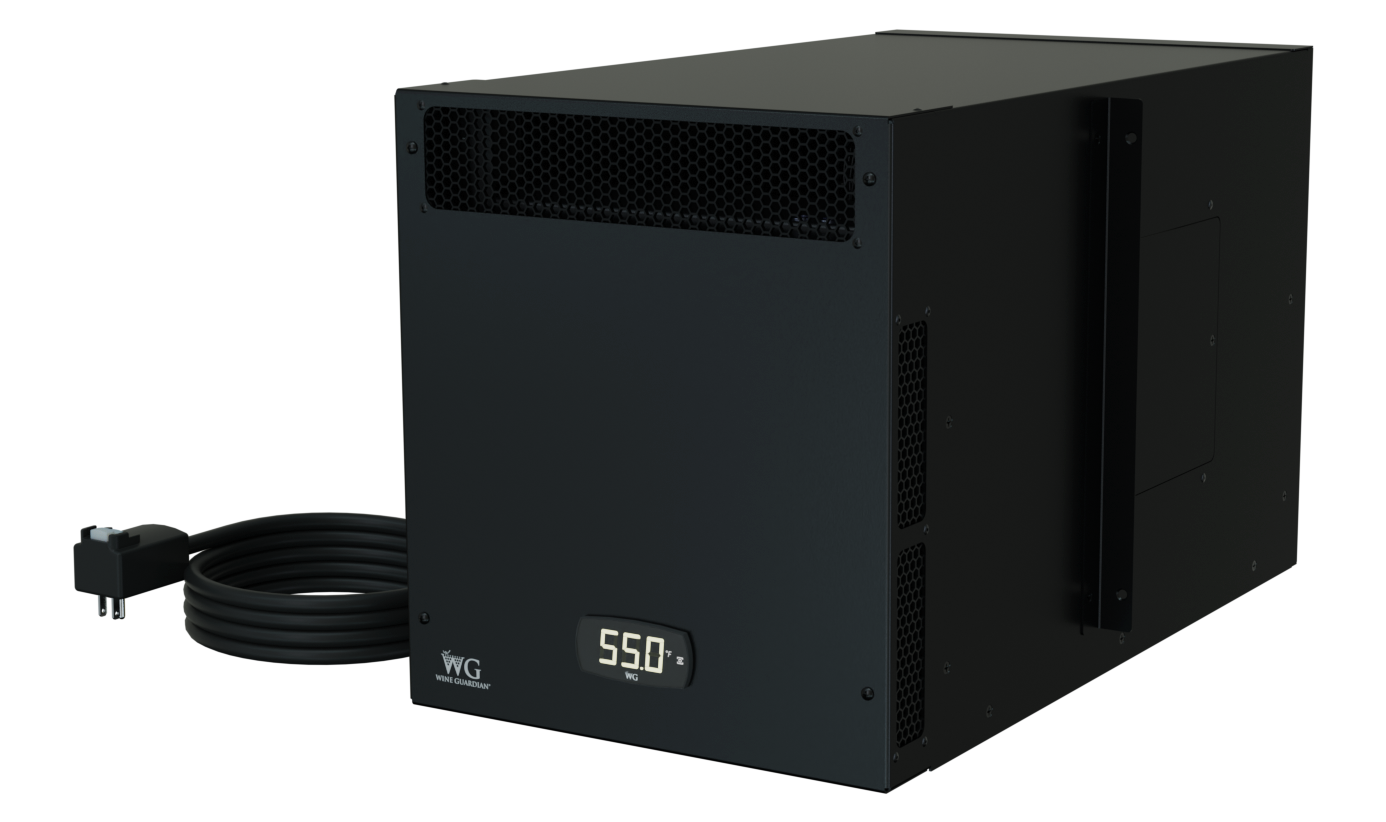

TTW04B Defender 4000 BTU Wine Cellar Cooling Unit

 • The Defender is the premium model in the TTW lineup, offering expanded features for demanding applications. With a cooling capacity of 4,000 BTU/h, it is ideal for larger residential or commercial wine cellars requiring ultimate performance, control, and flexibility.

This unit is also easy to install, and can be installed on your own without the support of a contractor.

Although the cooling units are rated for various size rooms, the thermal load may require a larger sized cooling unit. Thermal load may be affected by glass in the cellar, room positioning or other factors. Please let a Rosehill Wine Cellar rep make some suggestions for you if needed.

Wine Guardian Through-the-Wall cooling units offer excellent airflow for your wine cellar, which assists to maintain optimal temperature & humidity — all this with whisper-quiet operation.

The TTW04B Defender is a self-contained, ductless, air-cooled system designed for energy efficiency, reliability, and advanced climate control. With expanded temperature settings (42°F to 75°F), enhanced sound insulation, and an exterior wall package, it is the most versatile and feature-rich option in the TTW Series.

FEATURES of the Through the Wall – TTW04B Defender:

4,000 BTU/h cooling capacity
Expanded cellar temperature range: 42°F (6°C) to 75°F (24°C)
Ultra Quiet Package with additional sound reduction material
Exterior Wall Package: exterior grille, coated condenser coil, heater, and 125°F (52°C) max ambient temperature rating
Electric Heater: integrated heating coil to warm cellar air if temperatures fall below set point
Smartphone controllable via Bluetooth/NFC and Wi-Fi connectivity (iOS support coming soon)
Eco-friendly R513A refrigerant with low global warming potential
Humidity sensor (combined thermostat and humidistat) for seamless humidifier integration
Integrated condensate evaporator prevents leakage without the need for a drain line
Fail-safe protections: condensate overflow switch, loss-of-charge switch, auto-reset high pressure switch
Easy DIY installation — slides through wall sleeve or mounts with bracket system
Designed and assembled in the USA

 • What’s Included:
Humidity Sensor
Condensate Evaporator
Ultra Quiet Package
Exterior Wall Package
