Split Water Cooled 5/8 Ton 6000Swc #30339

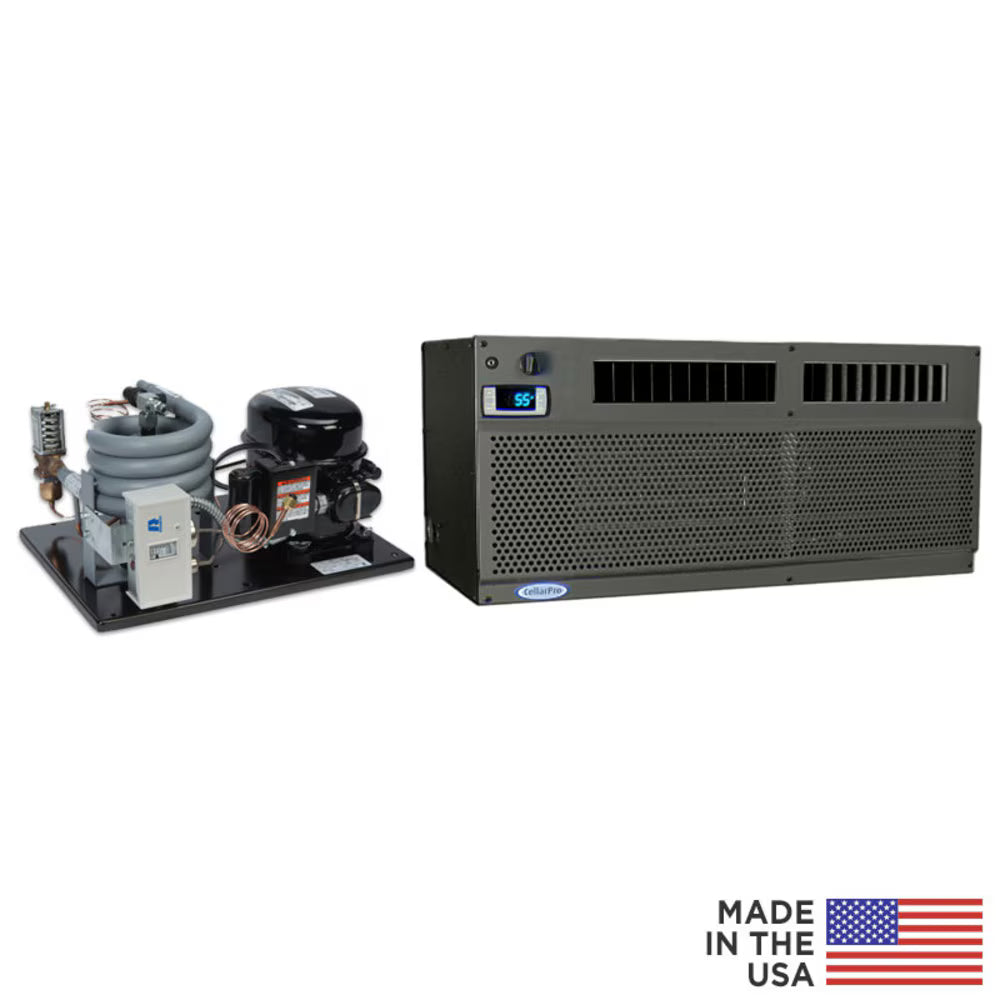

CellarPro 6000Swc-EC Cooling Unit (P/N 30339). NOW WITH ENERGY-EFFICIENT EC FANS! CellarPro engineered the 6000Swc-EC cooling system to provide maximum cooling power and adjustable humidity control for cellars up to 1,750 cubic feet. Split refrigeration systems separate the evaporator from the condensing unit, allowing the noise and heat from the condensing unit to be located away from interior living areas. The 6000Swc-EC includes a variable-speed fan on the evaporator with a low setting for quieter operation and a high setting for maximum power. The condensing unit requires a continuous flow of water to cool itself, and does not need ventilation like air-cooled units. The Evaporator can be located inside the cellar with or without a decorative grill - not included.

Size: 16 5/8w x 12 5/8d x 22 1/8h (in)

Weight: 161 lbs

Power/Rating:
115V AC / 60 Hz

Condensing Unit Dimensions:
- 82 lbs
- 14w x 21.4d x 10.5h
Evaporator Unit Dimensions:
- 68 lbs
- 30.4w x 14.4d x 13.2h

System Amps:
- Common dedicated 20-amp circuit is required to power the unit.
- Startup: 48.0 Amps
- Unit Amp Rating: 11.1 Amps (high fan speed)

BTUH @ 55F / Evaporator Decibels
- Low Fan Speed: 4725 / 54 dbA
- Med Fan Speed: 5610 / 58 dbA
- High Fan Speed: 5895 / 66 dbA
- 5/8 Ton Nominal

Condensing Unit Decibels: 63 dbA

Capacity: 5895 BTUH @ 55F

Sizing Table: Click here to view sizing table

Warranty:
- 2 Years (Entire System) / 5 Years (Compressor) To activate your warranty, you must complete and return our Installation Checklist, which can be found in the Owner's Manual, under the Resources tab for each item, and in our Learning Center.
