Split Water Cooled 1/2 Ton 4000Swc #7649

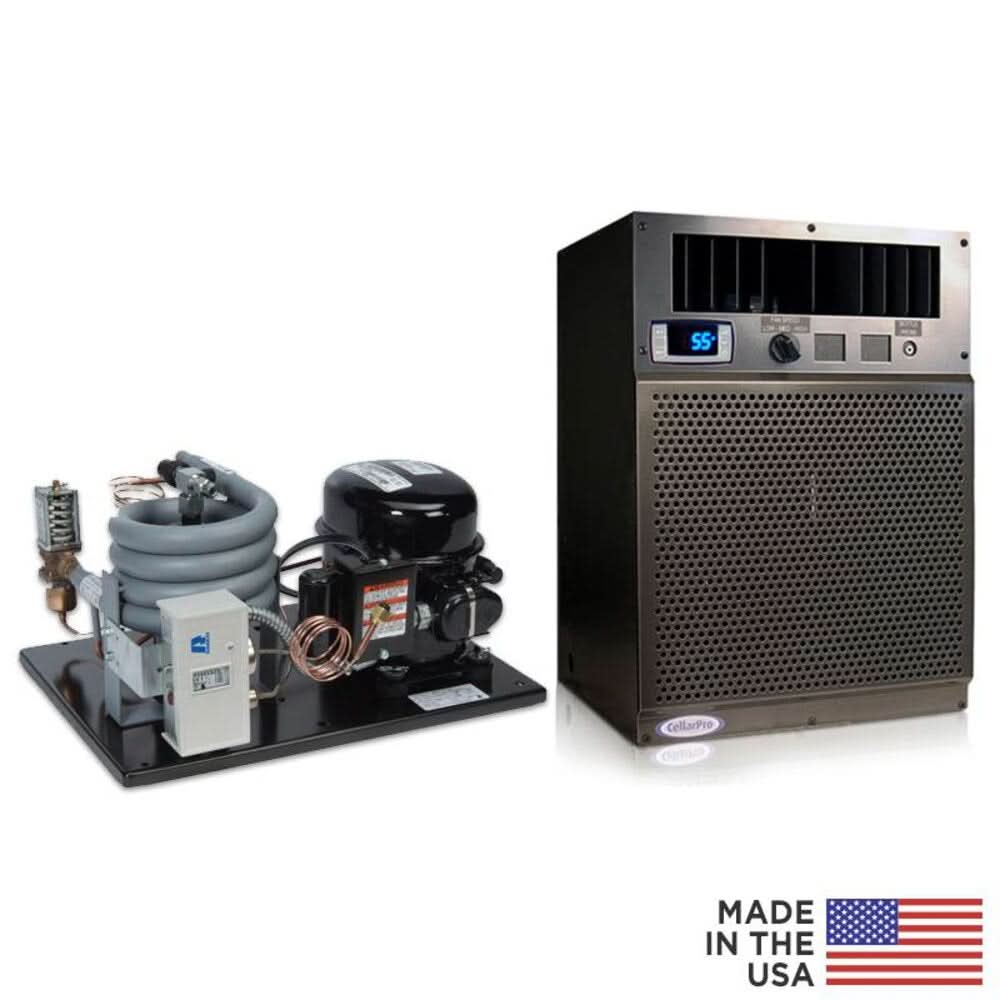

CellarPro 4000Swc-EC Cooling Unit (P/N 7649). NOW WITH ENERGY-EFFICIENT EC FANS! CellarPro engineered the 4000Swc-EC cooling system to provide maximum cooling power and adjustable humidity control for cellars up to 1,000 cubic feet. Split refrigeration systems separate the evaporator from the condensing unit, allowing the noise and heat from the condensing unit to be located away from interior living areas. The 4000Swc-EC includes a variable-speed fan on the evaporator with a low setting for quieter operation and a high setting for maximum power. The condensing unit requires a continuous flow of water to cool itself, and does not need ventilation like air-cooled units. The Evaporator can be remotely located and ducted to/from the cellar using our cold-side duct hood, or located inside the cellar (with or without a decorative grill - not included.)

Size: 16 5/8w x 12 5/8d x 22 1/8h (in)

Weight: 86 lbs

Power/Rating:
115V AC / 60 Hz

Condensing Unit Dimensions:
- 45 lbs
- 13.8w x 18.4d x 10.2h
Evaporator Unit Dimensions:
- 48 lbs
- 14.1w x 12.6d x 19.5h

System Amps:
- Common dedicated 15-amp circuit is required to power the unit.
- Startup: 32.0 Amps
- Unit Amp Rating: 6.7 Amps (high fan speed)

BTUH @ 55F / Evaporator Decibels
- Low Fan Speed: 3130 / 53 dbA
- Med Fan Speed: 3430 / 59 dbA
- High Fan Speed: 3680 / 67 dbA
- 1/2 Ton Nominal

Condensing Unit Decibels: 60 dbA

Capacity: 3680 BTUH @ 55F

Sizing Table: Click here to view sizing table

Material: Metal

Warranty:
1 Year (Entire System) To activate your warranty, you must complete and return our Split Installation Checklist.
- Optional Extended Warranty sold separately.

Click on one of the following links for more information:

• Sizing Table
• Cut Sheet
• Evaporator Mounting Instructions
• Line Sizing Chart
• Configuration Options
• Refrigerant Piping Handbook
• Owner's Manual
• Product Brochure
• Installation Checklist
