Split Wall Mounted Horizontal 1/2 Ton 4000Sh #7401

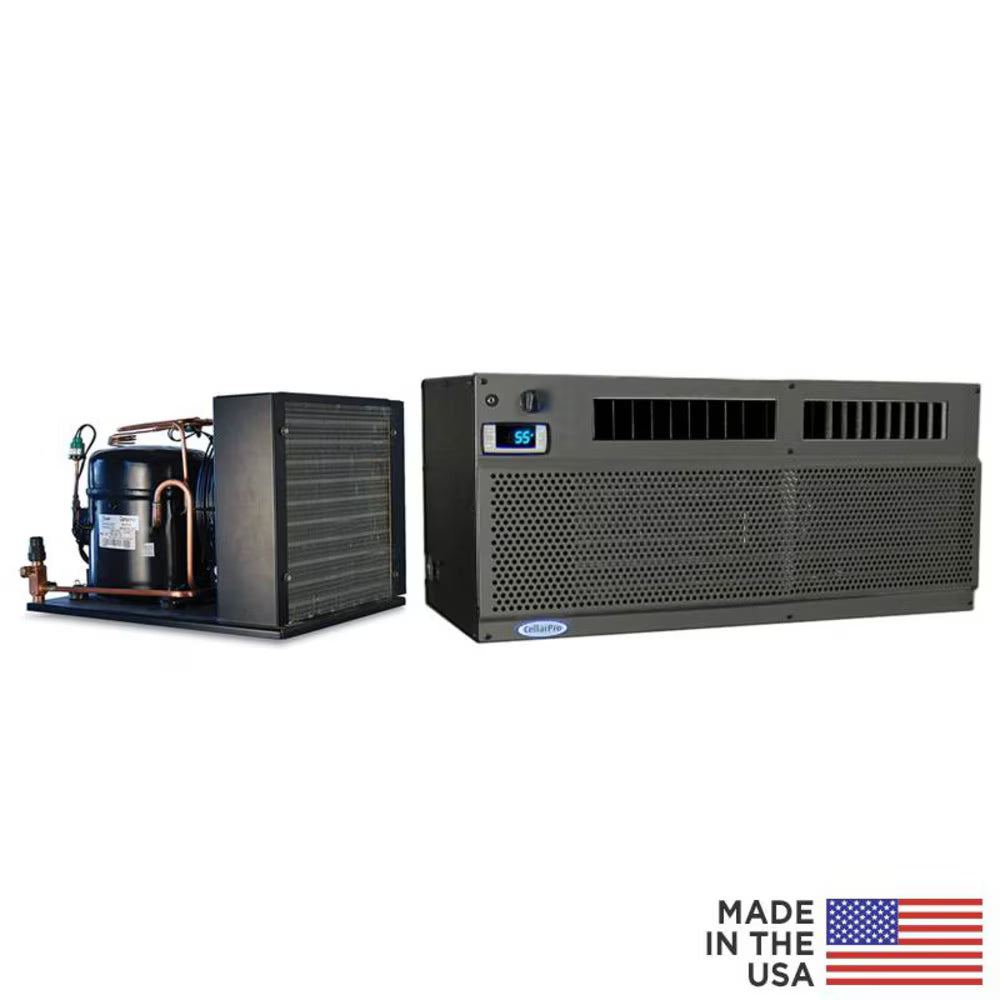

CellarPro 4000Sh-EC Cooling Unit (P/N 7401). NOW WITH ENERGY-EFFICIENT EC FANS! CellarPro engineered the 4000Sh-EC cooling system to provide maximum cooling power and adjustable humidity control for cellars up to 1,000 cubic feet. Split refrigeration systems separate the evaporator from the condensing unit, allowing the noise and heat from the condensing unit to be located away from interior living areas. Configurable for internal or external installations, the 4000Sh-EC includes a variable-speed fan on the evaporator with a low setting for quieter operation and a high setting for maximum power. This unit is the same as the 4000S, except that the evaporator is horizontal instead of vertical.

All air-cooled refrigeration equipment requires fresh air intake to dissipate the heat generated by the cooling unit. The fresh air intake CANNOT come from the wine cellar space - it must come from space outside the cellar.

Size:
Condensing Unit Dimensions:
- 45 lbs
- 19 3/8w x 23 1/4d x 18 3/4h(in)
Evaporator Unit Dimensions:
- 65 lbs
- 30 3/8w x 14 1/4d x 13 1/4h (in)
Shipping Weight: 144 lbs

Power/Rating:
115V AC / 60 Hz

System Amps:
- Common dedicated 15-amp circuit is required to power the unit.
- Startup: 40.0 Amps
- Unit Amp Rating: 7.9 Amps (high fan speed)

BTUH @ 55F / Evaporator Decibels
- Low Fan Speed: 3282 / 51 dbA
- Med Fan Speed: 3617 / 55 dbA
- High Fan Speed: 3938 / 63 dbA
- 1/2 Ton Nominal

Condensing Unit Decibels
- Indoor: 64
- Outdoor: 62

Capacity: 3938 BTUH @ 55F

Sizing Table: Click here to view sizing table

Material: Metal

Warranty:
- 2 Years (Entire System) To activate your warranty, you must complete and return our Split Installation Checklist.
- Optional Extended Warranty sold separately.
