Extreme tiR 5000 – Through-the-Wall Wine Cellar Cooling System

Resources:

• Extreme Catalog
• Extreme Specifications
• Extreme Product Video
• Extreme Owner’s Manual
• Extreme Features & Benefits

• 24V vs. KDT Thermostat Comparison

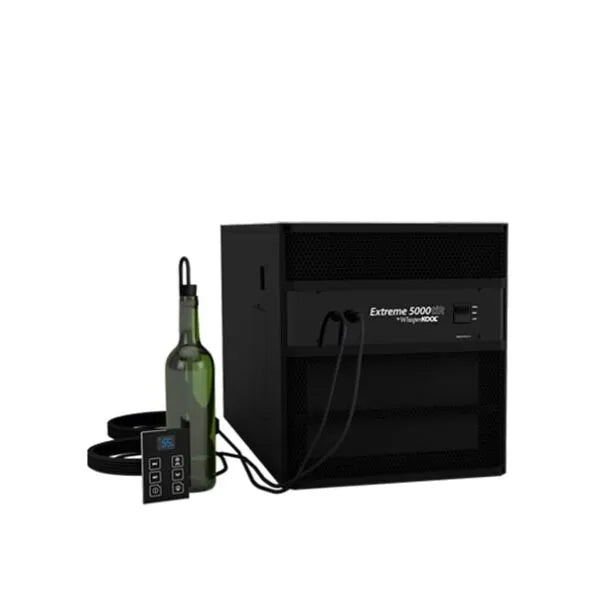

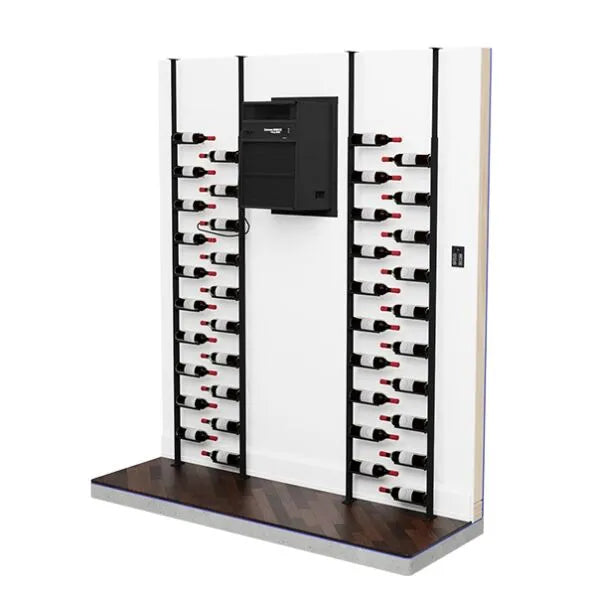

The Extreme tiR 5000 wine cellar cooling system was designed for easy installation. Installation of the Extremes and the SC Series does not require an HVAC-R technician. This product is intended for through-the-wall installations. It is an “upgrade” to the Extreme ti because it uses the KDT Plus remote controller and thermostat. The duct plenums for the evaporator and condenser can be purchased separately. The controller can be mounted outside the cellar, allowing you to monitor your cellar temperature without needing to enter. The controller can be mounted up to 50 feet away from the Extreme unit.

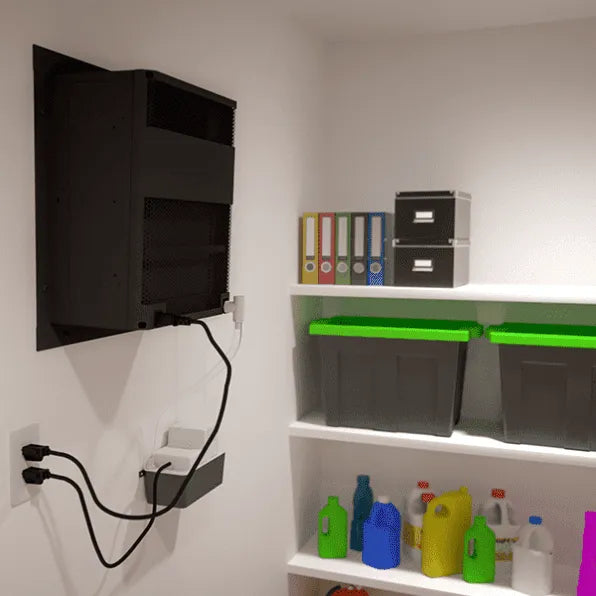

NOTE: If this unit will be installed through an exterior wall, you will need to purchase an exterior housing to protect the unit. If this unit will be installed through an interior wall, the hot air exhaust may be redirected to another location using the condenser ducting plenum kit.

*PLEASE NOTE: WhisperKOOL does not provide smart thermostat upon purchase of your Extreme tiR 3500. By selecting the 24V Thermostat Conversion Kit, you have acknowledged that the system will not be built with the standard WhisperKOOL control or liquid measuring bottle probe. You will have to source and purchase your own 24V smart thermostat to run the equipment. The WhisperKOOL Customer Satisfaction Team does not provide technical support for smart thermostats.
