Ducted Air Handler Split 2 1/4 Ton AH24Sx Outdoor #32033

CellarPro AH24Sx-EC Air Handler Cooling System (P/N 32033). Our Split Air Handler is rated for exterior usage and designed for cellars up to 8000* cubic feet, providing ducted refrigeration specifically designed for wine cellars.

All air-cooled refrigeration equipment requires fresh air intake to dissipate the heat generated by the cooling unit. The fresh air intake CANNOT come from the wine cellar space - it must come from space outside the cellar.

Size:

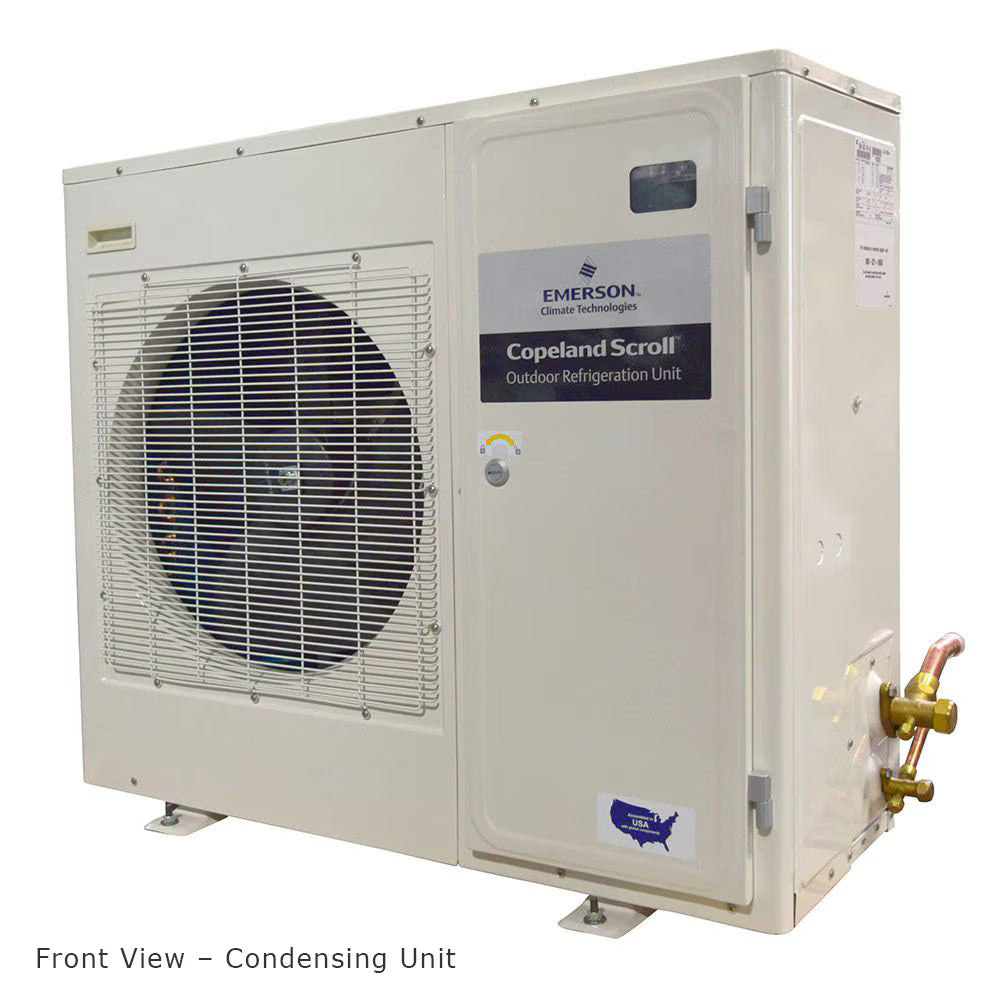

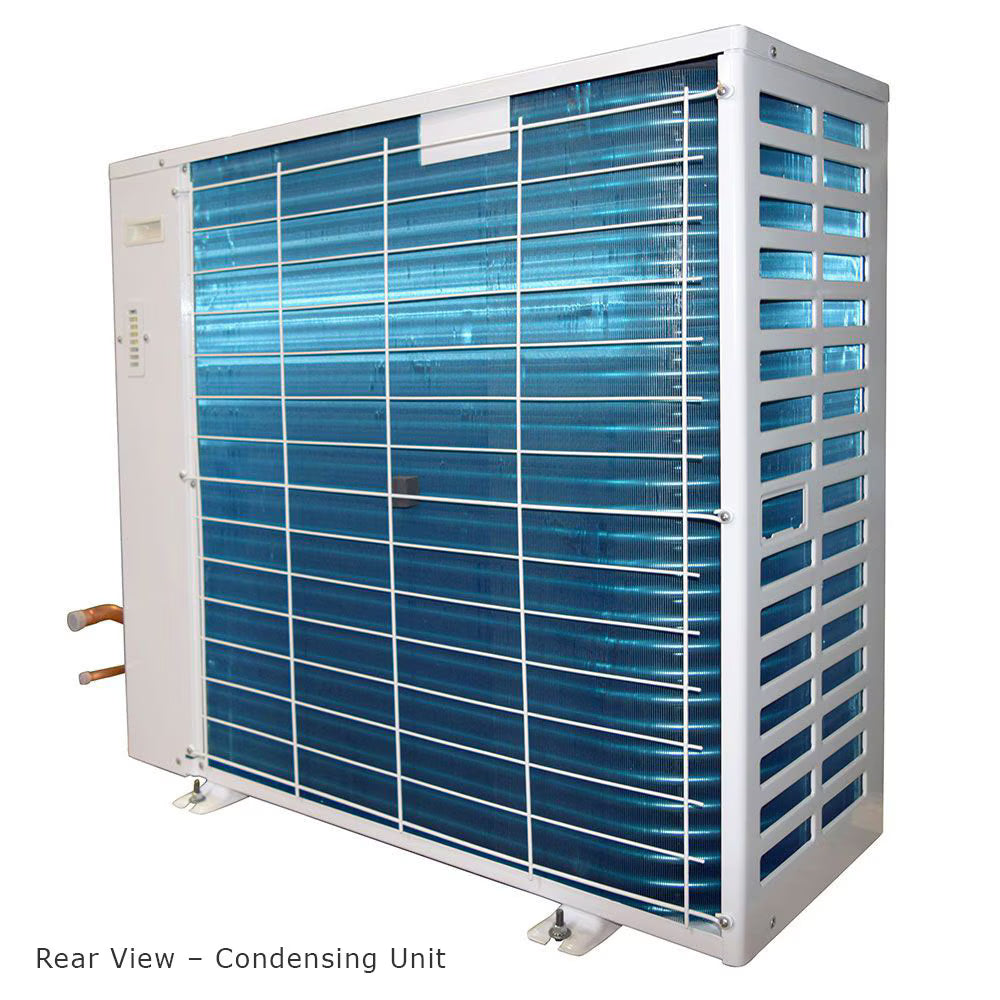

Condensing Unit
- 236 lbs
- 16 5/8w x 40 1/2d x 33 1/8h

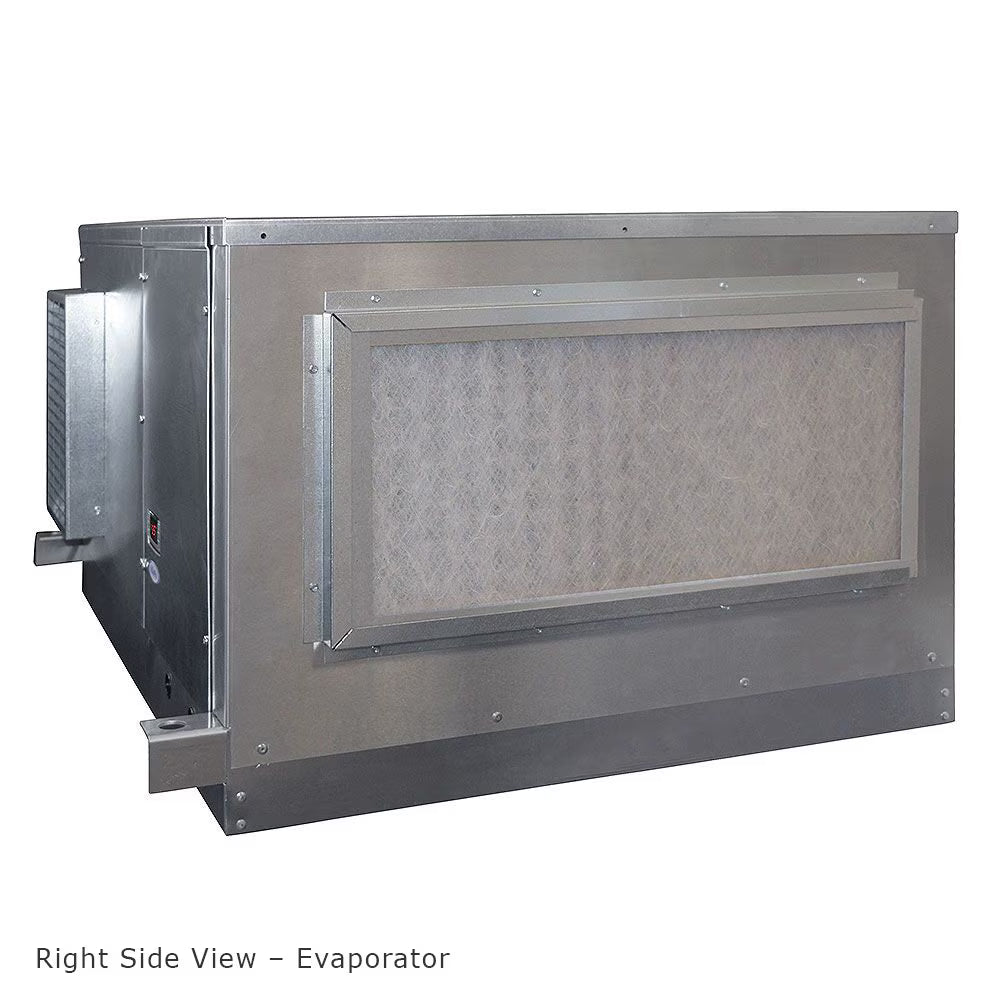

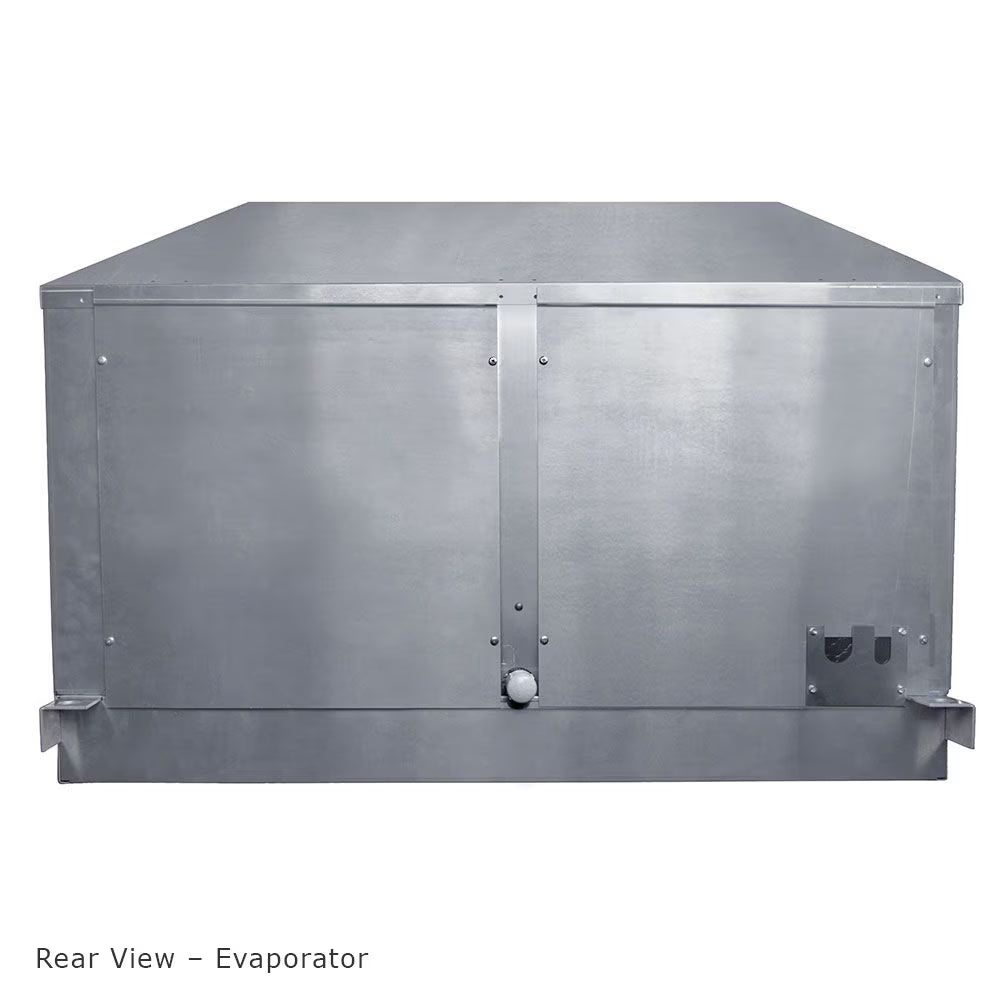

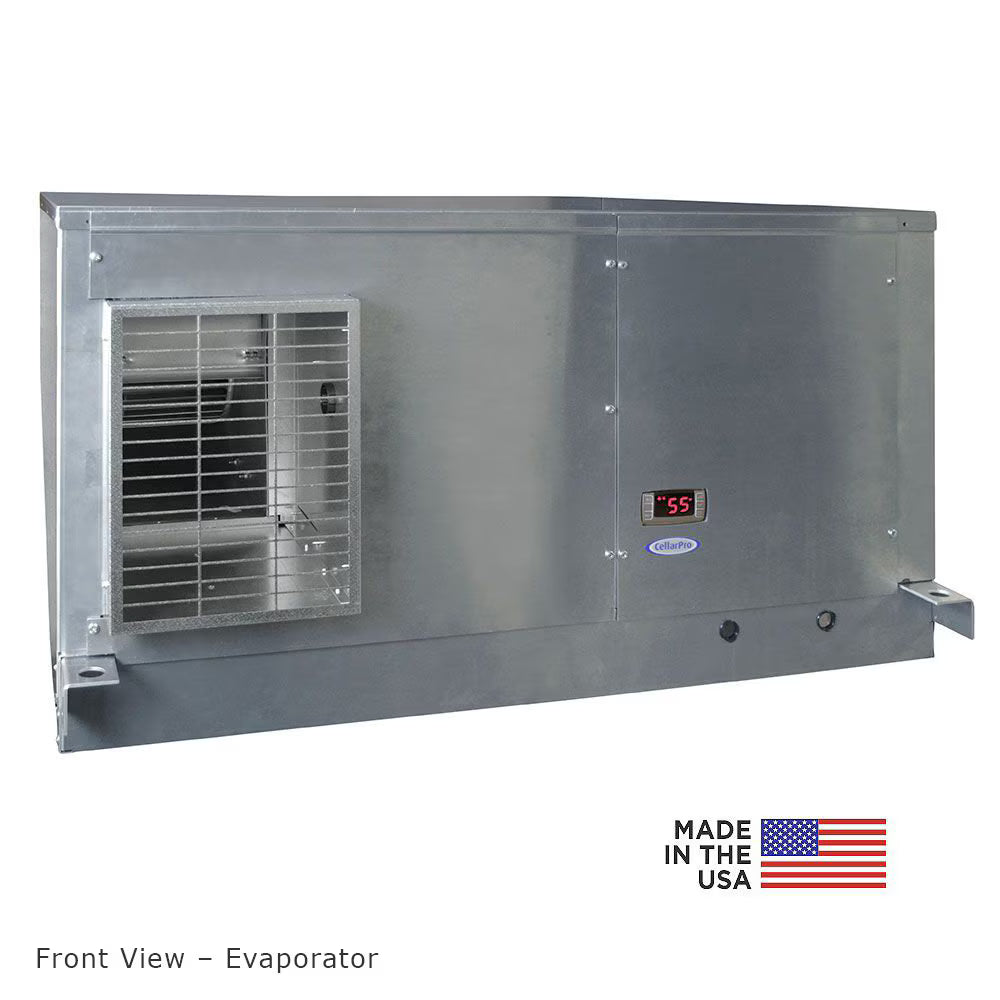

Evaporator Unit
- 156 lbs
- Add 5 lbs for Integrated Heater and 20lbs for Integrated Humidifier
- 41 3/8w x 36 5/8d x 22 3/8h

Power/Rating:
208V/1PH/60HZ or 230V/1PH/60HZ ( must be specified when ordering) with dual power supplies:

• 15-amp circuit for the evaporator module
• 50-amp dedicated circuit for the condensing unit
• Startup: 112 Amps
• Total Watts: 2497 (not including optional Integrated Humidifier or Heater)

BTUH @ 55F: 18200 / 2 1/4 Ton Nominal

Evaporator Decibels
- Ducted: 67 dbA
- Non-Ducted: 78 dbA

Condensing Unit Decibels
- 61 dbA

Sizing Table: Click here to view sizing table

Warranty Resources
- Warranty Overview
- Limited Warranty - 2 Years (Entire System)
- To activate your warranty, you must complete and return our Split Installation Checklist.
- Optional Extended Warranty sold separately.

Click on one of the following links for more information:

• Spec Sheet
• Sizing Table
• Monthly Operating Cost
• Evaporator/Condensing Unit Cut Sheet
• Line Sizing Chart
• Owner's Manual
• Product Brochure
• Configuration Options
• Installation Checklist
