CellarPro 1800H Houdini Duct HOOD COLD SIDE #35618

Allows CellarPro 1800H Houdini cooling units to be ducted up to 50 equivalent feet (25 feet per duct) on the or cold using 8-inch ducting (sold separately) with no reductions from start to finish.

CellarPro 1800H Houdini Duct HOOD COLD SIDE (P/N 35618). These duct hoods are designed for use with CellarPro's 1800H Houdini cooling unit, as follows:

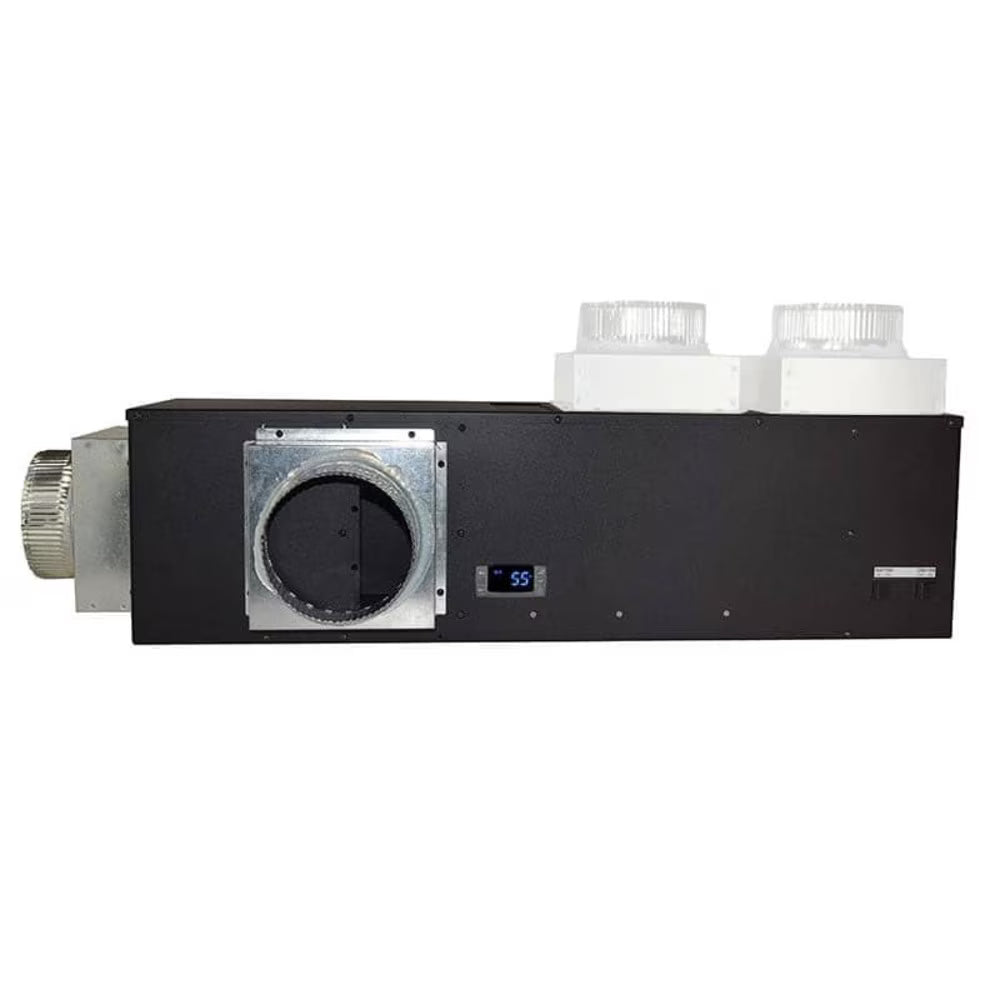

• Attach to the cold side airflows (intake and exhaust), allowing the cooling unit to be located remotely (ie away from the cellar), as follows:



  • Cold air return: must be ducted from the left side (as shown)
  • Cold air exhaust: must be ducted from the front (as shown)



Each bundle includes 2 hoods (1 for intake and 1 for exhaust side on the cold side)

Please note:

• Insulated flex ducting is not included with this bundle. If you'd like to purchase the bundle WITH ducting, please order item #35619 instead
• Ducting must be 8-inch diameter or equivalent from start to finish
• Ducting must be insulated to R-6 or better
• We recommend adding our remote display/control unit #1603 (sold separately)
• The high fan speed must be used when ducting this cooling unit

The maximum length of ducting is 50 equivalent feet on the hot side and 50 equivalent feet on the cold side.

• Designed to work with cold-side airflow openings on the 1800H Houdini cooling unit
• Requires 8-inch insulation (R-6 or better), not included

Size: 5 3/4w x 5 3/4d x 9 3/4h

Weight: 4 lbs

Capacity: 50 Equivalent Feet

Warranty:
1 Year

The height of the hood (2 1/2 (in)) plus the height of the 6-inch duct collars (2 1/4 (in)) is 4 3/4. The hood is designed to attach to the cooling unit for use with the cold-side airflow. Click on one of the following links for more information:

• Owner's Manual
• Duct Hood Drawings - As Ducted
• Ducting Installation Best Practices
• Configuration Options
