CellarPro 1800 Duct KIT Hot + Inline Fan #1439 | Factory Installed

Allows CellarPro 1800 Series cooling units to be ducted up to 100 equivalent feet (50 feet per duct) using 6-inch ducting (included) from start to finish (ducting must not be reduced).

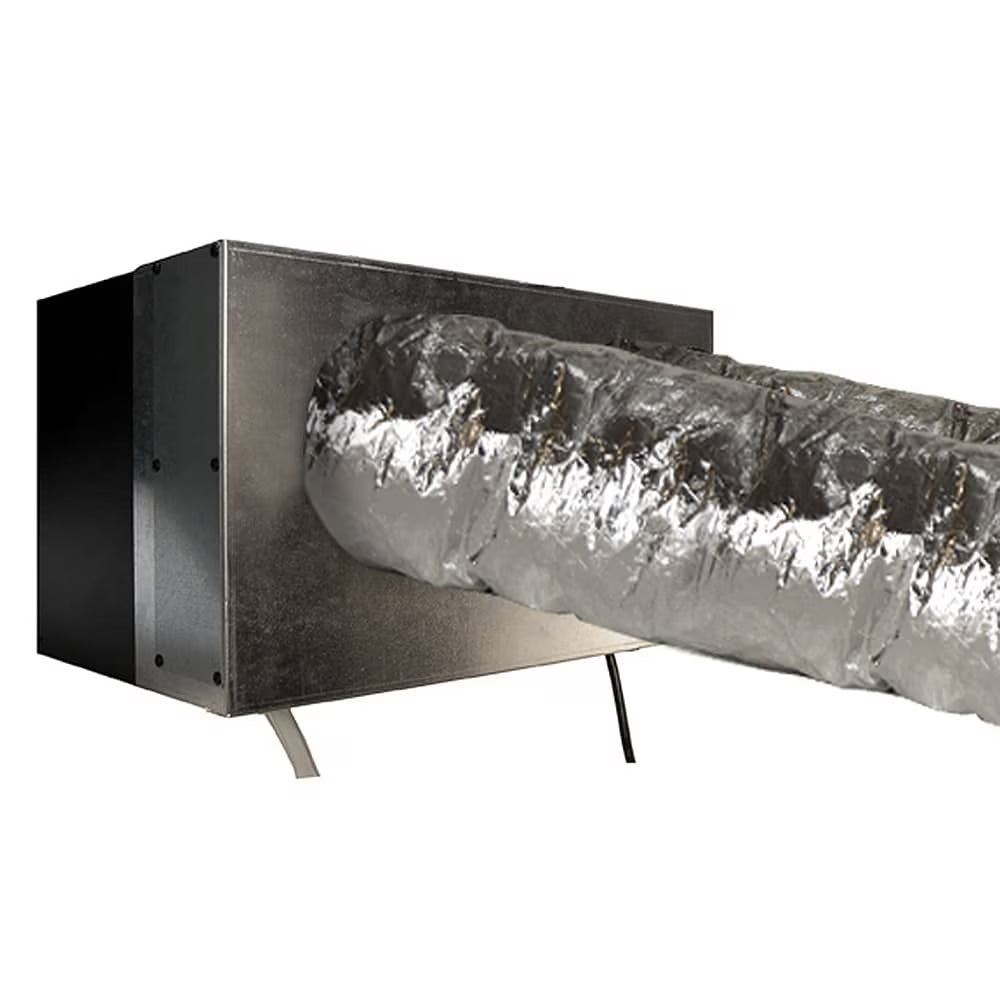

CellarPro 1800 Duct Kit (Rear) with Inline Fan Factory Installed (P/N 1439). This kit includes:

• 6-inch inline fan (120 CFM)

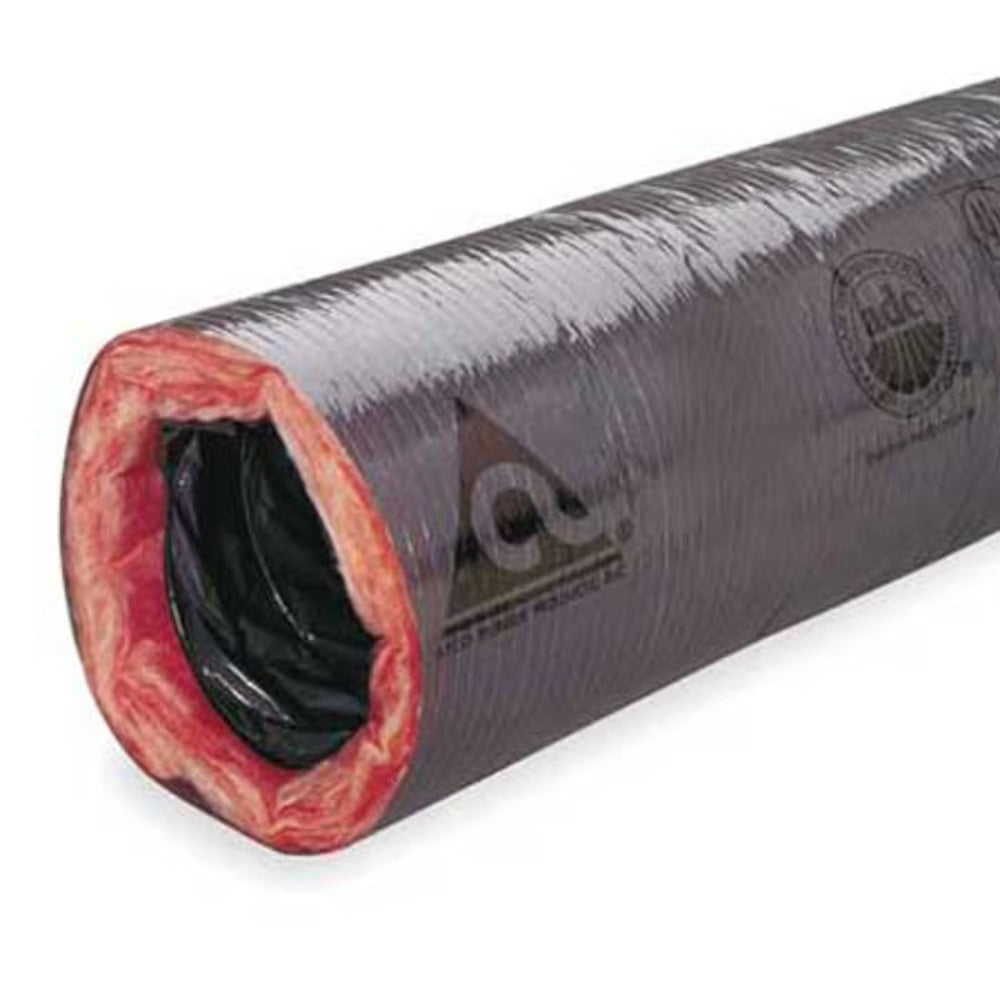

• 50 feet (2x25 feet) of 6-inch insulated ducting (R-6)

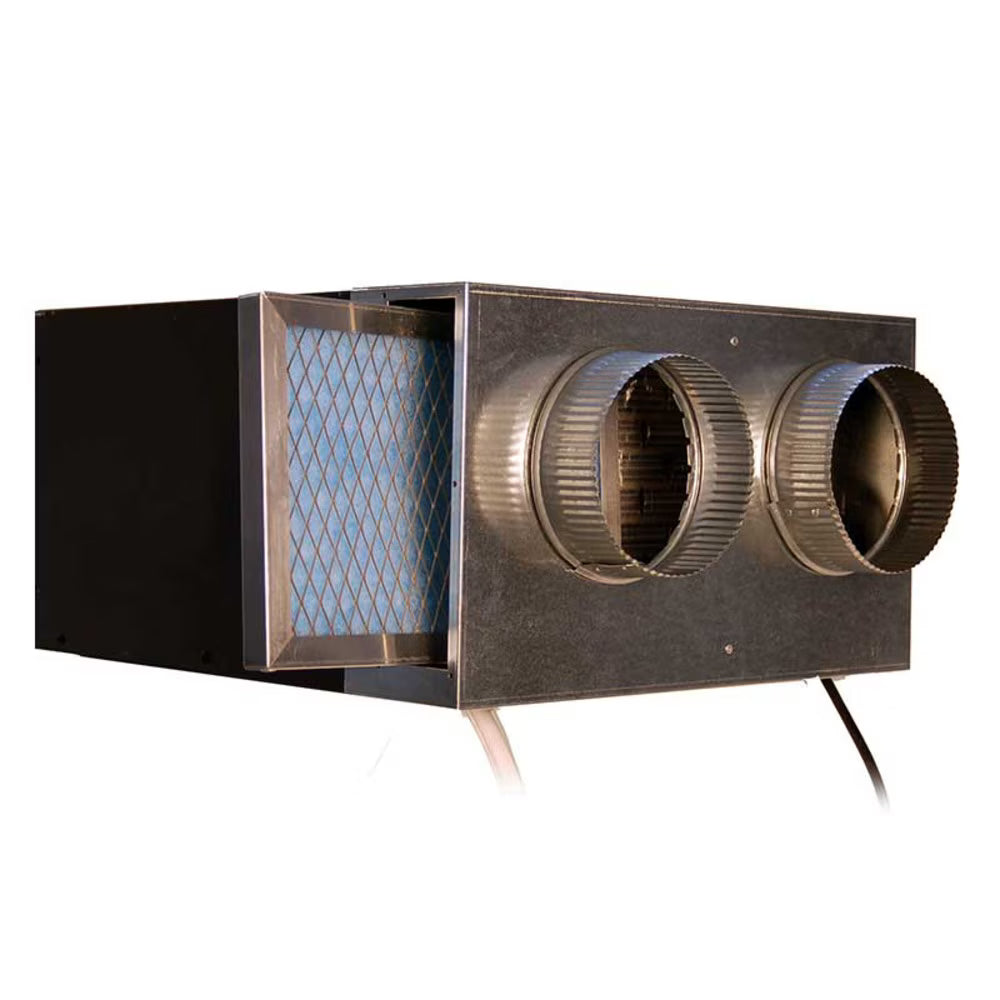

• Galvanized metal duct hood slides over the rear of the cooling unit and baffles the air intake and exhaust
• 8-foot power line provides switched power for the inline fan to match the on/off cycle of the wine cooling unit

The duct hood is designed with an easy-access panel to replace the air filter (sold separately), and openings for the drain line and power cord.

• Inline fan (3000RPM, 120 CFM) has a permanently lubricated, impedance protected motor
• Heavy gauge plated steel brackets
• Switched power to match the cooling unit
• 50 feet of 6-inch insulated ducting (R-6)
• Designed to fit over the rear of all CellarPro 1800 wine cooling units (should not be used with 1800QTL units)
• Includes an easy-access panel to replace air filters (sold separately)
• Grommet openings for the drain line and power cord

Size: 18 1/4w x 6 3/4d x 10 1/4h (in)

Weight: 30 lbs

Power/Rating:
115V, 60 Hz, 0.6 amps (Inline Fan)

Capacity: 100 Equivalent Feet

Warranty: 1 Year

The depth of the hood includes 2 1/4 (in) for the 6-inch dia. duct adapters. The hood is designed to slide over the rear of the cooling unit, and will overlap the cooling unit by approximately 1-2 (in). Click on one of the following links for more information:

• Duct Hood Drawings
• Rear Duct Installation Guide
• Rear Drawings - As Ducted
• Ducting Installation Best Practices

IF YOUR CELLARPRO 1800 COOLING UNIT ALREADY HAS SHIPPED WITHOUT WIRING FOR THE AUXILIARY FAN, DO NOT ORDER THIS ITEM. INSTEAD, ORDER OUR RETROFIT DUCT HOOD #7410 OR KIT #1832.
