220V 50Hz Self Contained 1/2 Ton 4200VSi #1512

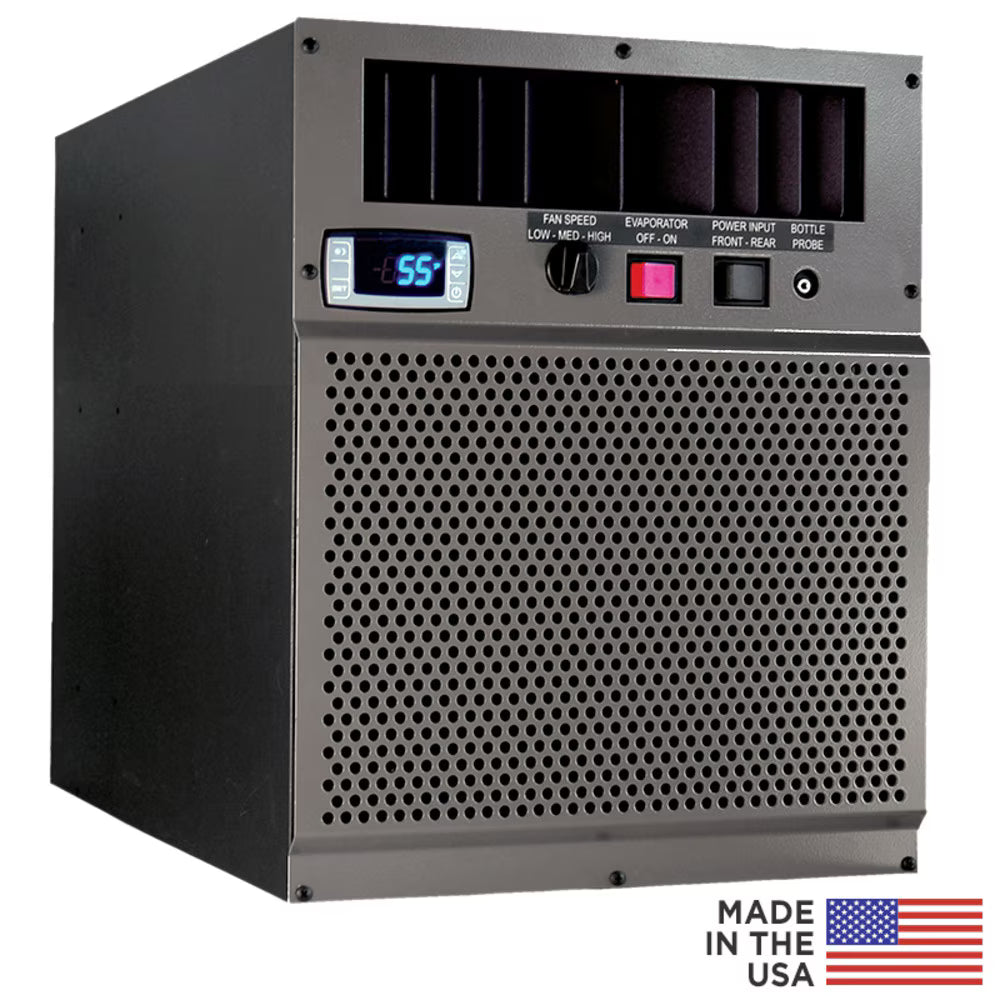

CellarPro 4200VSi-220V / 50Hz Cooling Unit (P/N 1512). CellarPro engineered the 4200VSi 220V cooling unit to provide maximum cooling power and adjustable humidity control for cellars up to 42 cubic meters. Designed for internal installations that provide 187-254V power at 50Hz, 4200VSi 220V units are built with high-output Secop compressors and oversized coils for maximum performance in high-temperature environments up to 46C. These units also feature variable-speed fans with a low setting for super-quiet operation when conditions permit.

All air-cooled refrigeration equipment requires fresh air intake to dissipate the heat generated by the cooling unit. The fresh air intake CANNOT come from the wine cellar space - it must come from space outside the cellar. The unit can be remotely located and ducted to/from the cellar using our cold-side duct hood, or located through a cellar wall (with or without a decorative grill - not included.)

Size: 35 3/4w x 63 3/4d x 49 3/4h (cm)

Weight: 70 lbs

Power/Rating:
This wine cooling unit can be used in 187-254V environments at 50Hz. The power plug provided is Nema 6-15P 15A 250V Plug (Male). It has a screw cover plug housing with internal lug connections, and can be swapped easily to conform to local plug configurations.

Compressor Amps:
- Common dedicated 15-amp circuit is required to power the unit.
- Running: 6.3 Amps
- Startup: 14.8 Amps
- Total Watts: 817 (med fan speed)

Capacity: 3788 BTUH @ 50Hz / 13C

Sizing Table: Click here to view sizing table

Warranty Resources
- Limited Warranty - 1 Year (Entire System)
