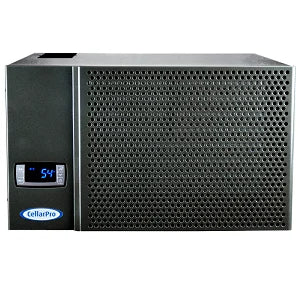

1800QT-HE Wine Cellar Cooling Unit 1/6 Ton #37130

The CellarPro 1800QT wine cabinet cooling unit provides outstanding performance while remaining extremely quiet. NOW WITH COATED ALUMINUM EVAPORATOR COILS FOR LONGER LIFE! The CellarPro 1800QT cooling unit provides a host of high-tech features, including adjustable humidity, digital temperature display and adjustment, and energy saver modes. Designed for indoor wine cabinet applications, the CellarPro 1800QT cooling unit is a perfect replacement for many other cabinet cooling units. An autodialer alarm option allows you to program your cooling unit to phone you in the event of a cooling emergency. The CellarPro 1800QT cooling unit is designed for use in cabinets up to 200cf. For larger cabinets or warmer locations, the CellarPro 1800XT is a higher-powered option.

*This cooling unit is designed to replace Breezaire 1060 and WineMate 1500 top and back vented cooling units. Before purchasing a CellarPro cooling unit , 1. check the power cord placement on your existing cooling unit, and 2. check that the outside dimensions match your existing cooling unit.

Key Benefits

• High-performance cooling: 1420 total / 1170 sensible BTUH @ 55F for optimal temperature and humidity management
• Low-GWP refrigerant: R-290 refrigerant with ultra-low GWP and zero ODP
• Quiet, efficient airflow: EC fan technology for reduced noise and improved airflow efficiency
• Longer coil life: Aluminum evaporator coils to help resist formicary corrosion and support longer service life
• Adjustable humidity control: Helps protect cork integrity and wine labels
• Compact design: Ideal for tight cabinet installs and small cellar environments

Performance Overview

• Setpoint range: 51F-62F (cellar temperature)
• Designed to maintain ideal cellar conditions: Helps maintain humidity levels that support cork and label protection
• Best fit: Small residential wine cellars and wine cabinets requiring 1/6-ton cooling power

Compatibility & Replacement Guide

The 1800QT-HE is a direct replacement for the following CellarPro cooling units:

• CellarPro 1800QTL
• CellarPro 1800QT

The 1800QT-HE cooling unit is an ideal upgrade path for customers searching for:

• A quieter wine cooling unit
• A more energy-efficient 1/6-ton wine cellar cooler
• A modern R-290 wine storage cooling solution

Installation Requirements

For optimum performance and warranty coverage, the 1800QT-HE must be installed in a properly insulated, airtight wine cellar with a vapor barrier.

Recommended conditions and sizing assumptions

• R-19 insulation or better
• No glass walls
• Vapor barrier installed on the warm side
• Ambient temperature up to 85F (sizing assumption)
• Access to fresh air from 40F to 95F (condenser air)

Ducting guidelines:

• Cold side cannot be ducted
• Hot side can be ducted only when using a CellarPro duct hood and auxiliary fan
• This model is engineered for indoor use only.

Technical Summary

• Cooling capacity: 1420 total BTUH, 1170 sensible BTUH
• Nominal size: 1/6 ton wine cooling system
• Refrigerant: R-290 (ultra-low GWP)
• Fan type: EC (electronically commutated)
• Application: Wine cabinets, small wine cellars
• Certification: ETL-certified

Warranty Resources
- Warranty Overview
- Limited Warranty - 5 Years (Entire System)
- Optional Extended Warranty (sold separately).

Resources:

• Spec Sheet
• Sizing Table
• Owner's Manual
• Service Manual
• Configuration Options
• Installation with Mounting Clips
• Installation with a Shelf
• Wine Cabinet Replacement Instructions
• Adjustable Humidity Chart
• Sound Level
• Monthly Operating Cost
• Front, Rear & Side Views
• Top & Bottom View
• Rear Drawings - As Ducted
