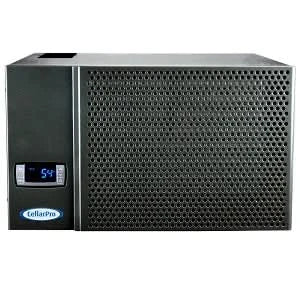

1800QT-HE Wine Cellar Cooling Unit 1/6 Ton #37130
products.product.pickup_availability.unavailable
The CellarPro 1800QT wine cabinet cooling unit provides outstanding performance while remaining extremely quiet. NOW WITH COATED ALUMINUM EVAPORATOR COILS FOR LONGER LIFE! The CellarPro 1800QT cooling unit provides a host of high-tech features, including adjustable humidity, digital temperature display and adjustment, and energy saver modes. Designed for indoor wine cabinet applications, the CellarPro 1800QT cooling unit is a perfect replacement for many other cabinet cooling units. An autodialer alarm option allows you to program your cooling unit to phone you in the event of a cooling emergency. The CellarPro 1800QT cooling unit is designed for use in cabinets up to 200cf. For larger cabinets or warmer locations, the CellarPro 1800XT is a higher-powered option.
*This cooling unit is designed to replace Breezaire 1060 and WineMate 1500 top and back vented cooling units. Before purchasing a CellarPro cooling unit , 1. check the power cord placement on your existing cooling unit, and 2. check that the outside dimensions match your existing cooling unit.
Key Benefits
- High-performance cooling: 1420 total / 1170 sensible BTUH @ 55F for optimal temperature and humidity management
- Low-GWP refrigerant: R-290 refrigerant with ultra-low GWP and zero ODP
- Quiet, efficient airflow: EC fan technology for reduced noise and improved airflow efficiency
- Longer coil life: Aluminum evaporator coils to help resist formicary corrosion and support longer service life
- Adjustable humidity control: Helps protect cork integrity and wine labels
- Compact design: Ideal for tight cabinet installs and small cellar environments
Performance Overview
- Setpoint range: 51F-62F (cellar temperature)
- Designed to maintain ideal cellar conditions: Helps maintain humidity levels that support cork and label protection
- Best fit: Small residential wine cellars and wine cabinets requiring 1/6-ton cooling power
Compatibility & Replacement Guide
The 1800QT-HE is a direct replacement for the following CellarPro cooling units:
- CellarPro 1800QTL
- CellarPro 1800QT
The 1800QT-HE cooling unit is an ideal upgrade path for customers searching for:
- A quieter wine cooling unit
- A more energy-efficient 1/6-ton wine cellar cooler
- A modern R-290 wine storage cooling solution
Installation Requirements
For optimum performance and warranty coverage, the 1800QT-HE must be installed in a properly insulated, airtight wine cellar with a vapor barrier.
Recommended conditions and sizing assumptions
- R-19 insulation or better
- No glass walls
- Vapor barrier installed on the warm side
- Ambient temperature up to 85F (sizing assumption)
- Access to fresh air from 40F to 95F (condenser air)
Ducting guidelines:
- Cold side cannot be ducted
- Hot side can be ducted only when using a CellarPro duct hood and auxiliary fan
- This model is engineered for indoor use only.
Technical Summary
- Cooling capacity: 1420 total BTUH, 1170 sensible BTUH
- Nominal size: 1/6 ton wine cooling system
- Refrigerant: R-290 (ultra-low GWP)
- Fan type: EC (electronically commutated)
- Application: Wine cabinets, small wine cellars
- Certification: ETL-certified
Warranty Resources
- Warranty Overview
- Limited Warranty - 5 Years (Entire System)
- Optional Extended Warranty (sold separately).
Resources:
- Spec Sheet
- Sizing Table
- Owner's Manual
- Service Manual
- Configuration Options
- Installation with Mounting Clips
- Installation with a Shelf
- Wine Cabinet Replacement Instructions
- Adjustable Humidity Chart
- Sound Level
- Monthly Operating Cost
- Front, Rear & Side Views
- Top & Bottom View
- Rear Drawings - As Ducted
Product Overview
• Available Ventilation options: Top Vent, Rear Vent
• Available Heater Options options: No Heat Upgrade, Compressor Heater (Factory Installed) + $195.00, Fan Cycling Control Switch (Factory Installed) + $165.00
• Available Ducting Options options: No Duct Upgrade, Intake Hood COLD SIDE (1800 Series) + $175.00, CellarPro 1800 Duct KIT Hot + Inline Fan + $500.00
