Ducted Air Handler Split 1 1/2 Ton AH12Sx Outdoor #34210

CellarPro AH12Sx-EC Air Handler Cooling System (P/N 34210). Our Split Air Handler is rated for exterior usage and designed for cellars up to 4500* cubic feet, providing ducted refrigeration specifically designed for wine cellars.

All air-cooled refrigeration equipment requires fresh air intake to dissipate the heat generated by the cooling unit. The fresh air intake CANNOT come from the wine cellar space - it must come from space outside the cellar.

Size:
Condensing Unit
- 219 lbs
- 16 5/8w x 40 1/2d x 33 1/8h

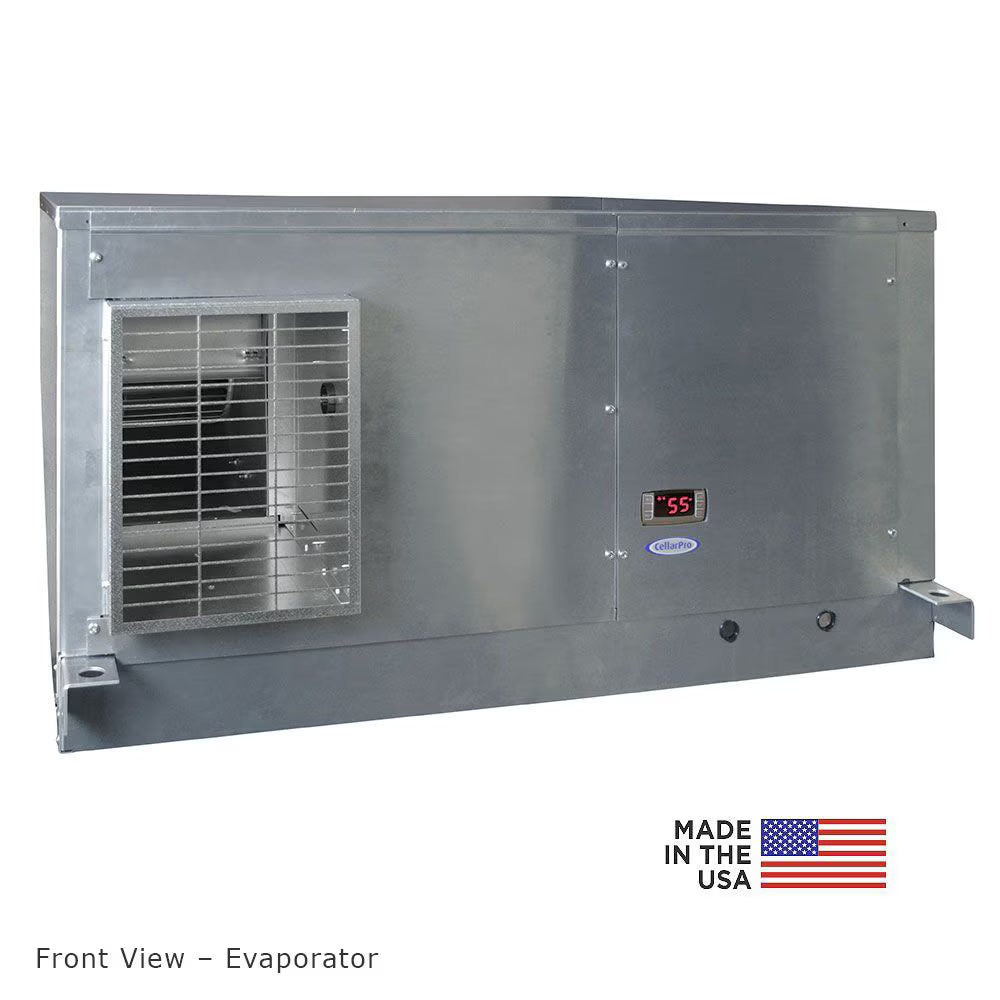

Evaporator Unit
- 156 lbs
- Add 5 lbs for Integrated Heater and 20lbs for Integrated Humidifier
- 41 3/8w x 36 5/8d x 22 3/8h

Power/Rating:
208V/1PH/60HZ or 230V/1PH/60HZ ( must be specified when ordering) with dual power supplies:

• 15-amp circuit for the evaporator module
• 25-amp dedicated circuit for the condensing unit
• Startup: 56.0 Amps
• Total Watts: 1685 (not including optional Integrated Humidifier or Heater)

BTUH @ 55F: 12400 / 1 1.2 Ton Nominal

Evaporator Decibels
- Ducted: 65 dbA
- Non-Ducted: 76 dbA

Condensing Unit Decibels
- 61 dbA

Sizing Table: Click here to view sizing table

Warranty Resources
- Warranty Overview
- Limited Warranty - 2 Years (Entire System)
- To activate your warranty, you must complete and return our Split Installation Checklist.
- Optional Extended Warranty sold separately.
