Split Water Cooled Horiz 1/2 Ton 4000Shwc #30545
products.product.pickup_availability.unavailable

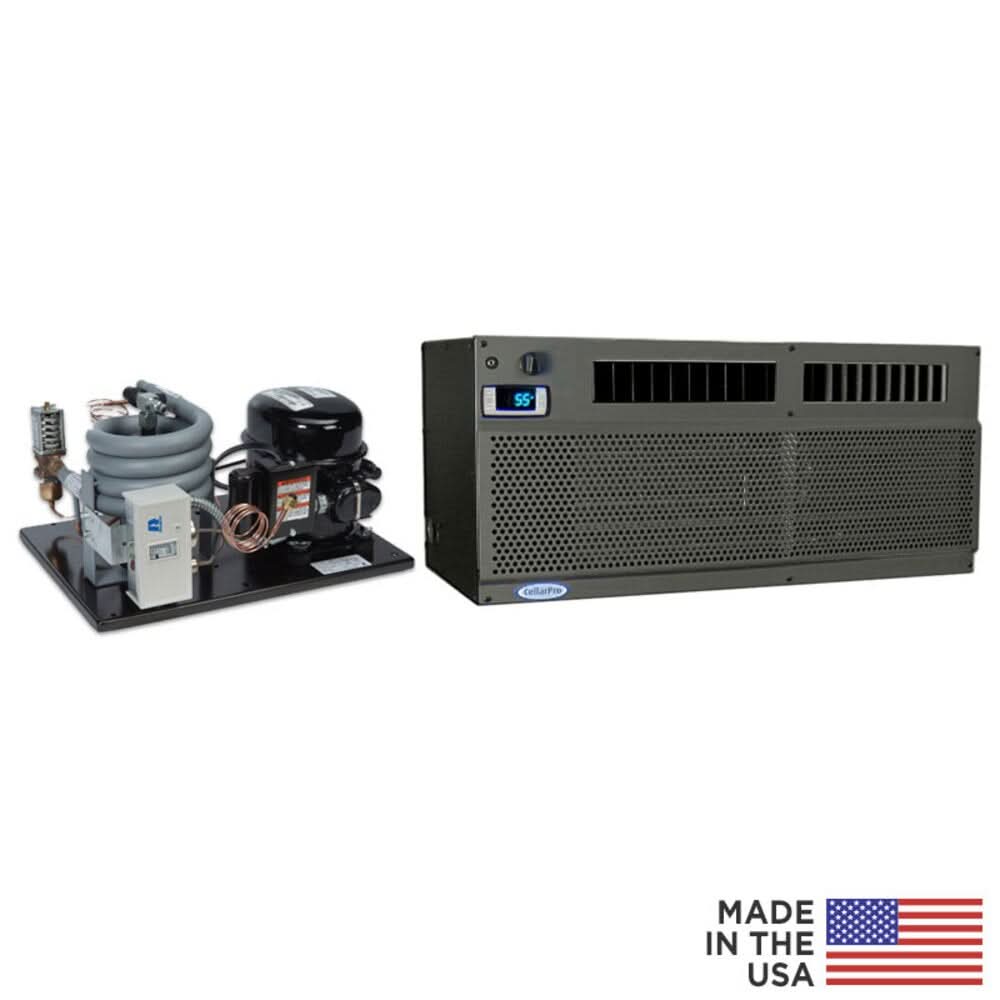

CellarPro 4000Shwc-EC Cooling Unit (P/N 30545). NOW WITH ENERGY-EFFICIENT EC FANS! CellarPro engineered the 4000Shwc-EC cooling system to provide maximum cooling power and adjustable humidity control for cellars up to 1,000 cubic feet. Split refrigeration systems separate the evaporator from the condensing unit, allowing the noise and heat from the condensing unit to be located away from interior living areas. The 4000Shwc-EC includes a variable-speed fan on the evaporator with a low setting for quieter operation and a high setting for maximum power. The condensing unit requires a continuous flow of water to cool itself, and does not need ventilation like air-cooled units.
Size:
Condensing Unit Dimensions:
- 45 lbs
- 19 3/8w x 23 1/4d x 18 3/4h(in)
Evaporator Unit Dimensions:
- 65 lbs
- 30 3/8w x 14 1/4d x 13 1/4h (in)
Shipping Weight: 144 lbs
Power/Rating:
115V AC / 60 Hz
System Amps:
- Common dedicated 15-amp circuit is required to power the unit.
- Startup: 32.0 Amps
- Unit Amp Rating: 6.2 Amps (high fan speed)
BTUH @ 55F / Evaporator Decibels
- Low Fan Speed: 3130 / 53 dbA
- Med Fan Speed: 3430 / 59 dbA
- High Fan Speed: 3680 / 67 dbA
- 1/2 Ton Nominal
Condensing Unit Decibels:
- Indoor: 64 dbA
- Outdoor: 62 dbA
Capacity: 3680 BTUH @ 55F
Sizing Table: Click here to view sizing table
Warranty:
- 2 Years (Entire System)
- Optional Extended Warranty (sold separately)
Click on one of the following links for more information:
Product Overview
• Available Wiring options: Electronic Control, Valve Control
