CellarPro 1800H Houdini Duct KIT COLD SIDE #35619

Allows CellarPro 1800H Houdini cooling units to be ducted up to 50 equivalent feet (25 feet per duct) on the cold side using 8-inch ducting with no reductions from start to finish .

CellarPro 1800H Houdini Duct KIT COLD SIDE (P/N 35619). These duct kits are designed for use with CellarPro's 1800H Houdini cooling unit, as follows:

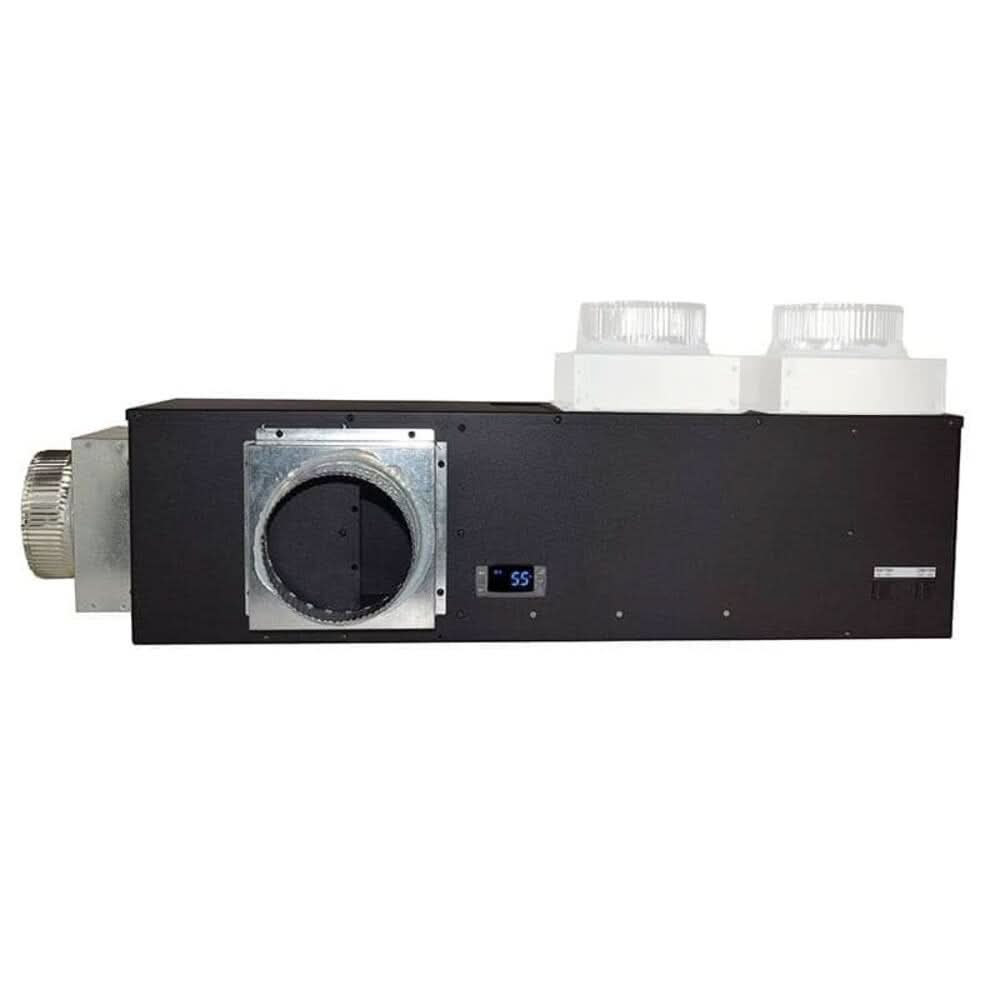

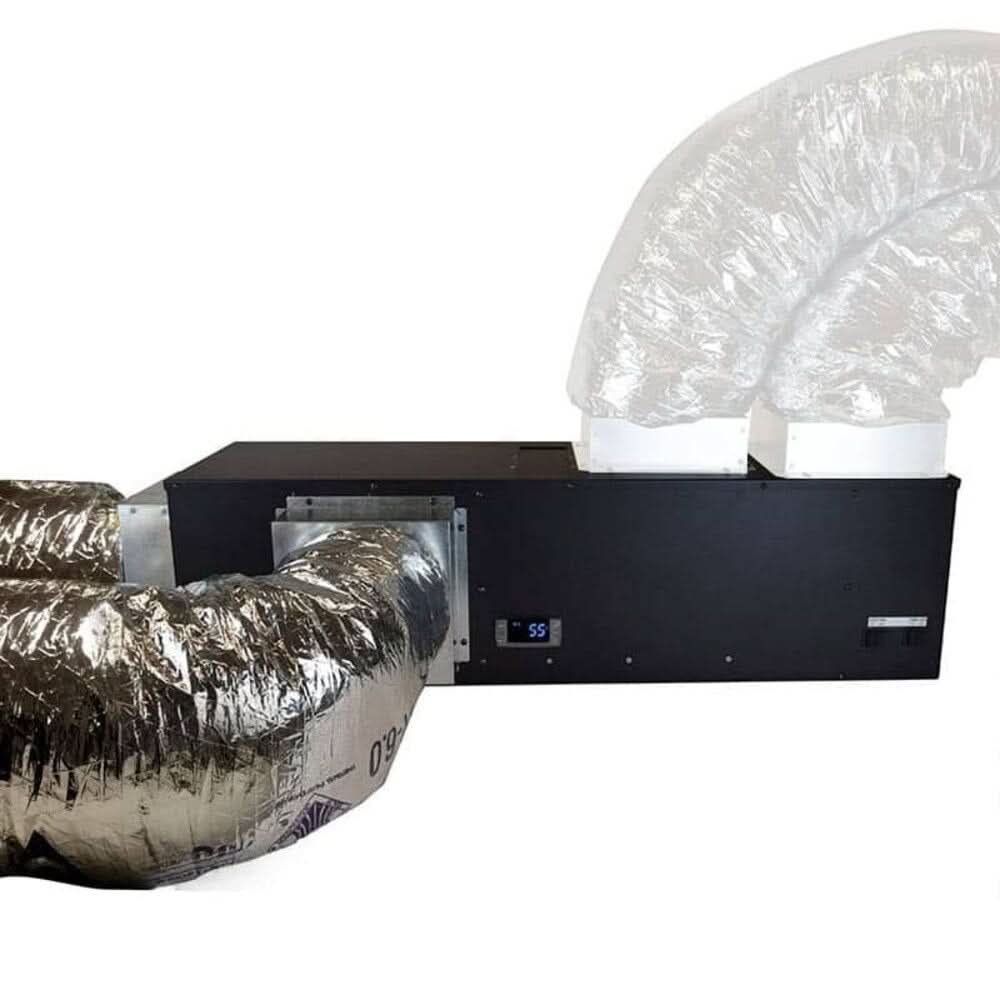

• Attach to the cold side airflows (intake and exhaust), allowing the cooling unit to be located remotely (ie away from the cellar), as follows:



  • Cold air return: must be ducted from the left side (as shown)

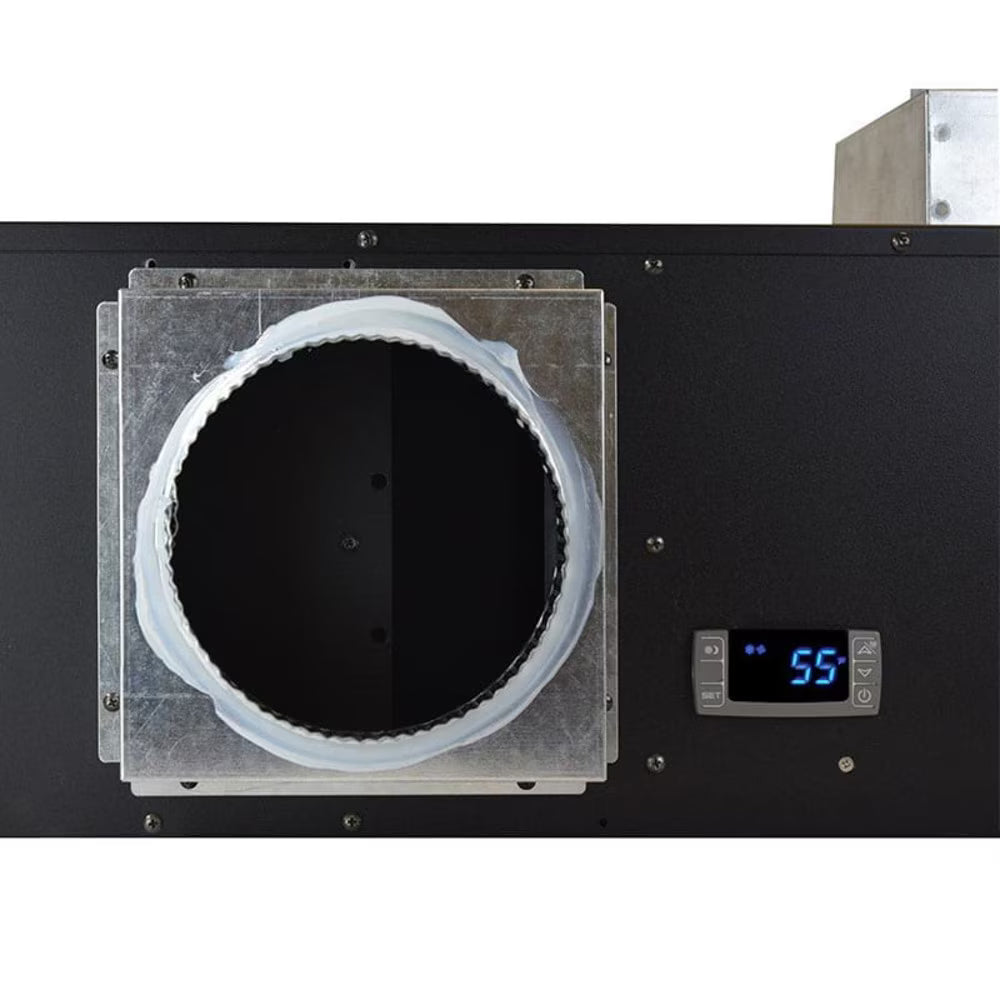

  • Cold air exhaust: must be ducted from the front (as shown)



Each bundle includes:

• 2 hoods (1 for intake and 1 for exhaust on the cold side)

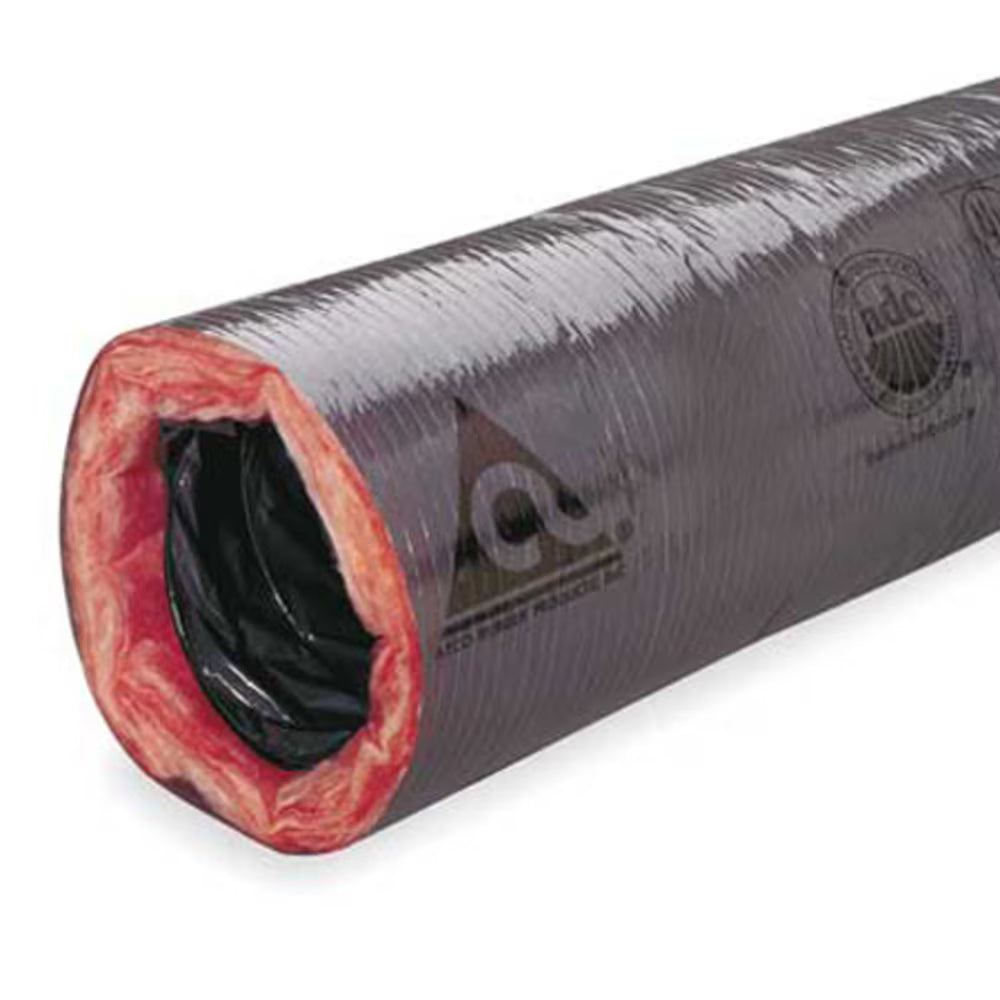

• 2 insulated flex ducts (25' each)

Please note:

• Ducting must be 8-inch diameter or equivalent from start to finish
• If the control panel will not be conveniently accessible, we recommend adding our remote display/control unit #1603 (sold separately)
• If you want ducting on BOTH the cold side and the hot side, you will need to purchase the hot-side kit
• The high fan speed MUST be used when ducting our cooling unit.

The maximum length of ducting is 50 equivalent feet on the hot side and 50 equivalent feet on the cold side. The hot side can be ducted up to 100 equivalent feet with the addition of an inline duct fan (sold as a separate kit.)

• 50 feet of 8-inch insulated ducting (R-6)
• Designed to work with cold-side airflow openings on the 1800H Houdini cooling unit

Size: 5 3/4w x 5 3/4d x 9 3/4h

Weight: 35.2 lbs

Capacity: 50 Equivalent Feet

Warranty:
1 Year

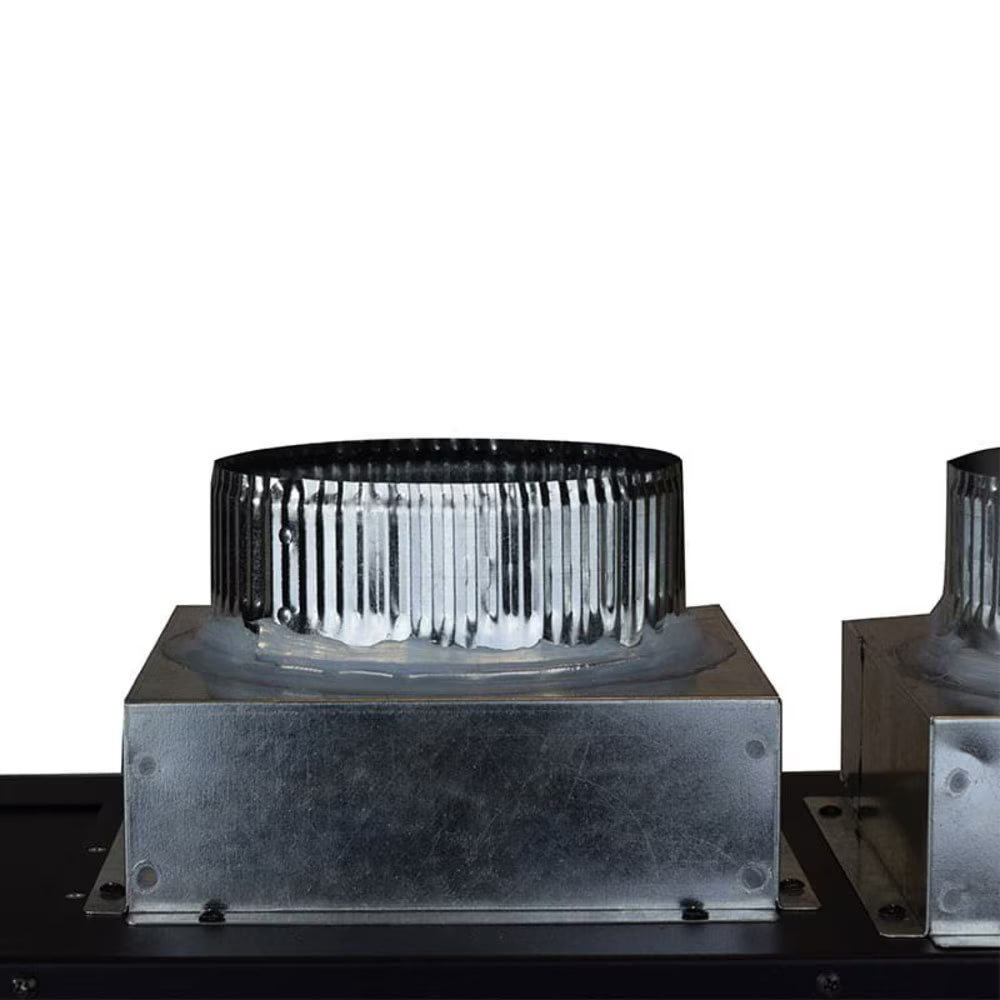

The height of the hood (2 1/2 (in)) plus the height of the 6-inch duct collars (2 1/4 (in)) is 4 3/4. The hood is designed to attach to the cooling unit for use with any of the airflows - hot or cold, intake or exhaust. Click on one of the following links for more information:

• Owner's Manual
• Duct Hood Drawings - As Ducted
• Ducting Installation Best Practices
• Configuration Options
