Split Wall Mounted 1 Ton 8000S #1765

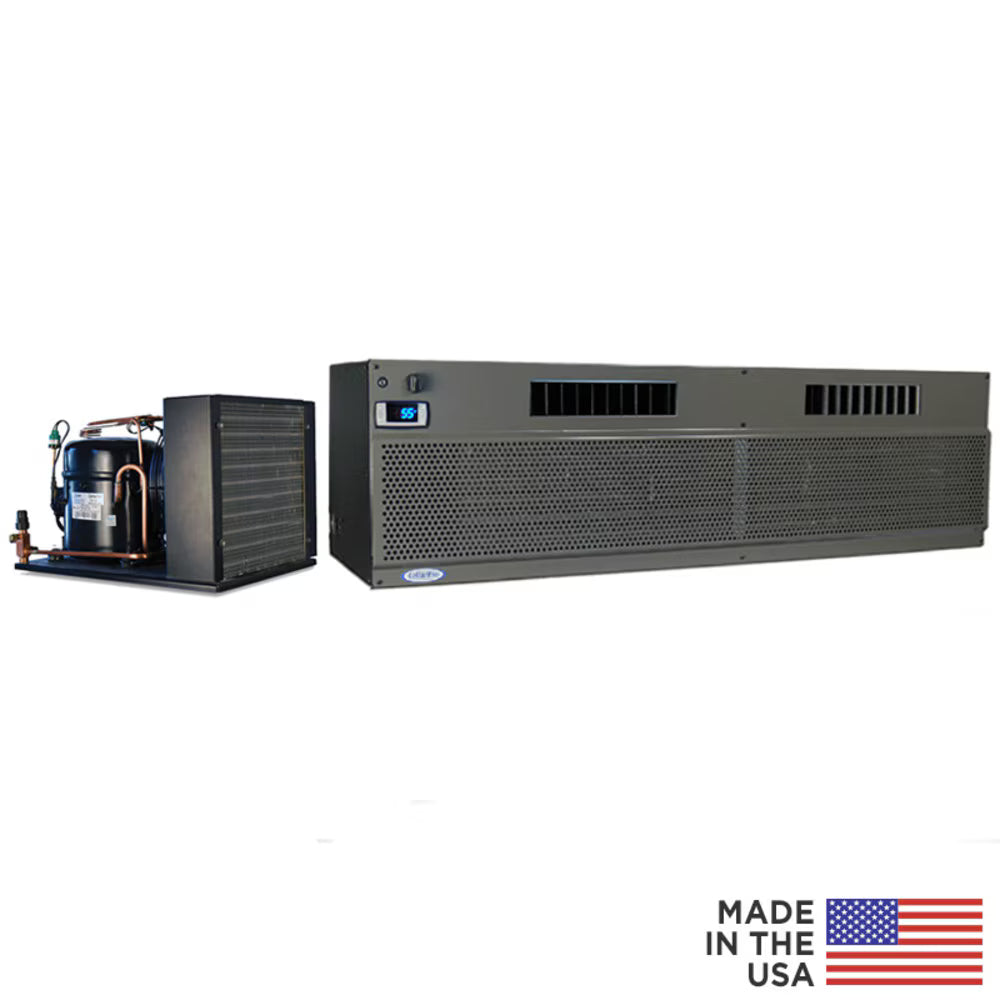

CellarPro 8000S-EC Cooling Unit (P/N 1765). NOW WITH ENERGY-EFFICIENT EC FANS! CellarPro engineered the 8000S-EC cooling system to provide maximum cooling power and adjustable humidity control for cellars up to 2000 cubic feet. Split refrigeration systems separate the evaporator from the condensing unit, allowing the noise and heat from the condensing unit to be located away from interior living areas. Configurable for internal or external installations, the 8000S-EC includes a variable-speed fan on the evaporator with a low setting for quieter operation and a high setting for maximum power.
All air-cooled refrigeration equipment requires fresh air intake to dissipate the heat generated by the cooling unit. The fresh air intake CANNOT come from the wine cellar space - it must come from space outside the cellar. The Evaporator can be located inside the cellar with or without a decorative grill - not included.
Size:

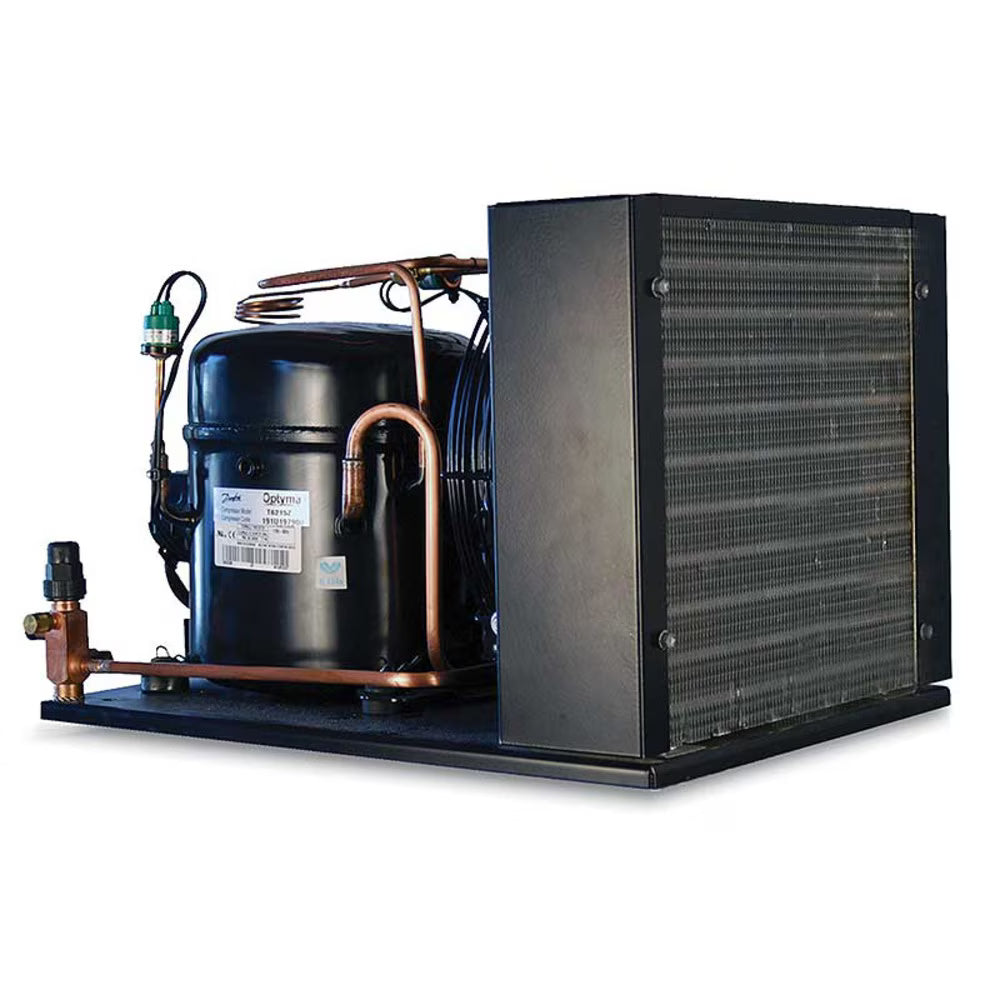

Condensing Unit Dimensions:
- 76 lbs
- 16 3/4w x 20 3/4d x 14h (in)

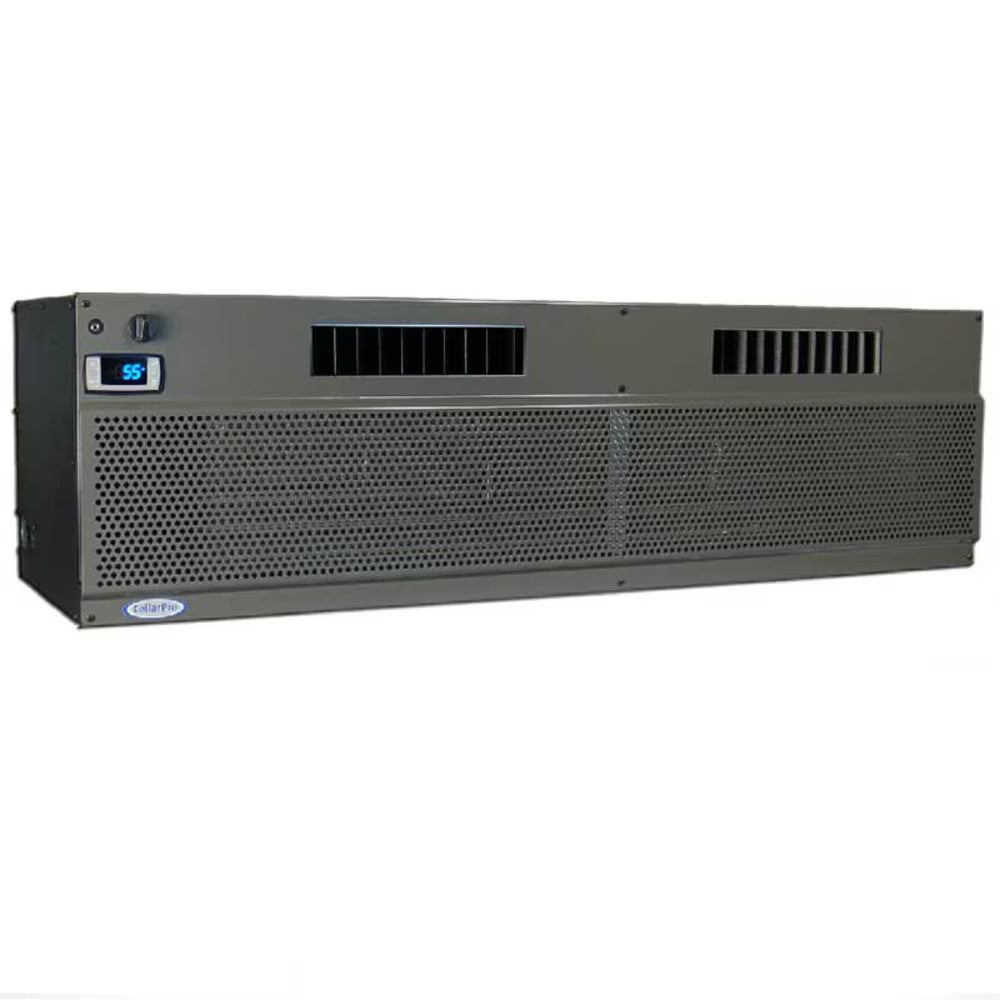

Evaporator Unit Dimensions:
- 85 lbs
- 46 3/8w x 14 3/8d x 13 1/4h (in)

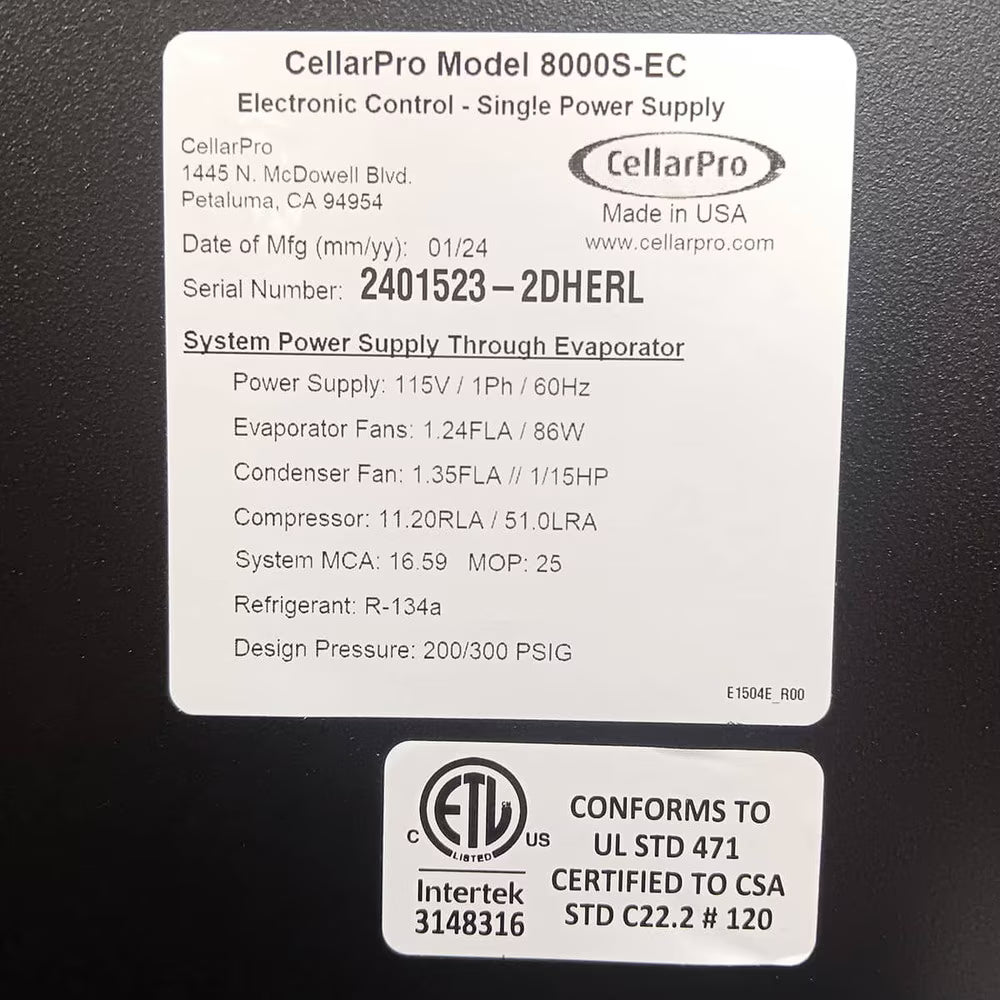

Power/Rating:
115V AC / 60 Hz
System Amps:
- Common dedicated 25-amp circuit is required to power the unit.
- Startup: 51.0 Amps
- Unit Amp Rating: 13.8 Amps (high fan speed)
BTUH @ 55F:
- Low Fan Speed: 5961
- Medium Fan Speed: 6346
- High Fan Speed: 6713
- 1 Ton Nominal
Decibels:
Evaporator Decibels
- Low Fan Speed: 54 dbA
- Med Fan Speed: 58 dbA
- High Fan Speed: 66 dbA
Condensing Unit Decibels
- Indoor: 67
- Outdoor: 65
Sizing Table: Click here to view sizing table
Warranty:
- 2 Years (Entire System)
- To activate your warranty, you must complete and return our Split Installation Checklist.
- Optional Extended Warranty sold separately.
Click on one of the following links for more information:
- Spec Sheet
- Sizing Table
- Monthly Operating Cost
- Evaporator Cut Sheet
- Condensing Unit Cut Sheet
- Evaporator Mounting Instructions
- Line Sizing Chart
- Configuration Options
- Wiring Diagram - Dual Power/ Valve Control
- Wiring Diagram - Single Power / Electronic Control
- Refrigerant Piping Diagram
- Refrigerant Piping Handbook
- Owner's Manual
- Product Brochure
- Installation Checklist
Details
• Available Electronic Control options: Electronic Control, Valve Control
• Available Condensing Unit Exposure options: Indoor, Outdoor
