Self Contained Beer 1/2 Ton 4200VSi #2177

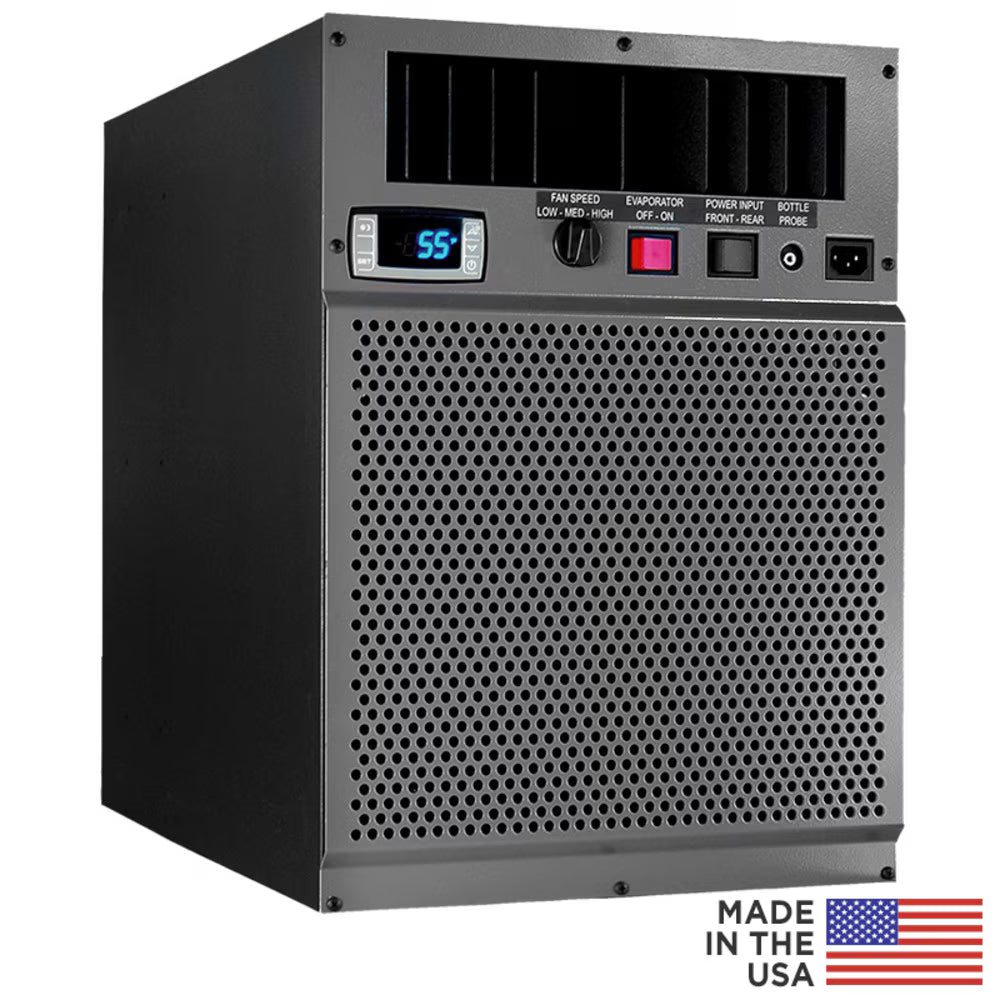

CellarPro 4200VSi-ECX-B Cooling Unit (P/N 2177). NOW WITH ENERGY-EFFICIENT EC FANS! CellarPro's 4200VSi-ECX-B cooling unit is engineered to provide advanced cooling power and adjustable humidity control for ideal beer storage. 4200VSi-ECX-B units use powerful compressors and oversized coils to generate maximum BTUH without stripping moisture from the environment.

Designed for indoor use only, 4200VSi-ECX-B units can operate in environments ranging from 110F to 40F out of the box. To operate the unit in colder temperatures, please see modifications listed on the Options & Upgrades tab.

*Assuming R19 insulation throughout the cellar, 55F inside the cellar and 85F outside the cellar.

All air-cooled refrigeration equipment requires fresh air intake to dissipate the heat generated by the cooling unit. The fresh air intake CANNOT come from the wine cellar space - it must come from space outside the cellar. The unit can be remotely located and ducted to/from the cellar using our cold-side duct hood, or located through a cellar wall (with or without a decorative grill - not included.)

Size: 14 1/8w x 25 1/8d x 19 5/8h (in)

Weight: 155 lbs

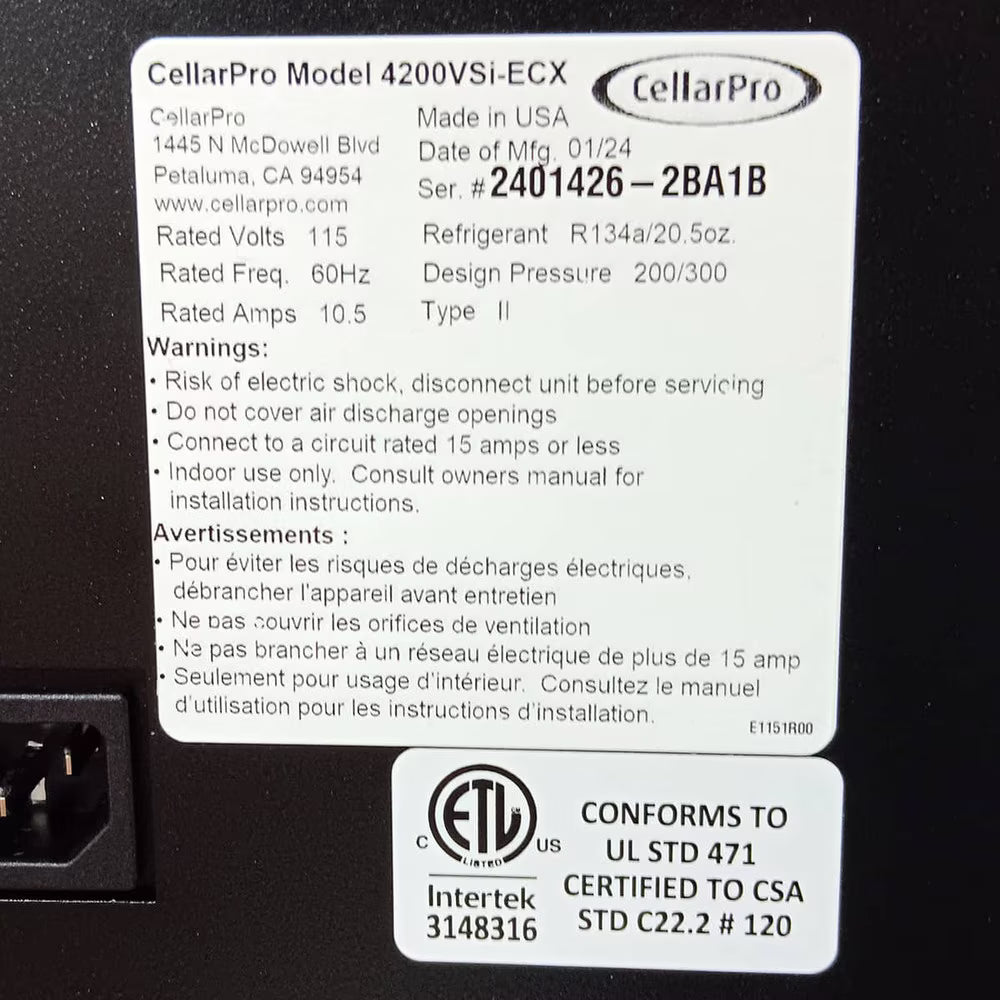

Power/Rating:
115V AC / 60 Hz
Compressor Amps:
- Common dedicated 15-amp circuit is required to power the unit.
- Startup: 42.0 Amps
- Unit Amp Rating: 10.5 Amps (high fan speed)
- 1/2 Ton Nominal
- Total Watts: 578 (med fan speed)

Capacity: 3166 BTUH @ 45F*

Sizing Table: Click here to view sizing table

Warranty Resources
- Warranty Overview
- Limited Warranty - 2 Years (Entire System) / 5 Years (Compressor)

Click on one of the following links for more information:

• Sizing Table
• Monthly Operating Cost
• Sound Performance
• Cut Sheet
• Front Ducted Cut Sheet
• Framing Diagram
• Installation Diagrams
• Configuration Options
• Product Brochure
• Owner's Manual
