Split Wall Mounted Horizontal 1/3 Ton 3000Sh #7402

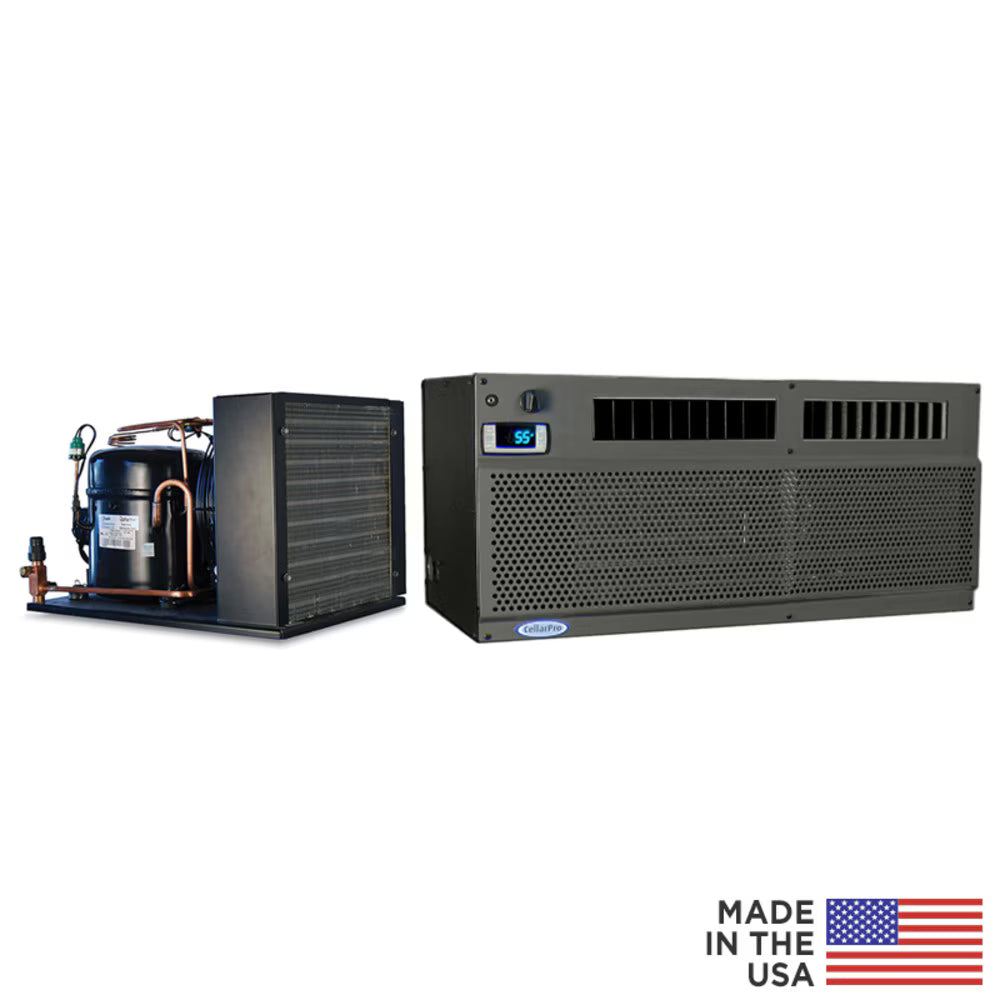

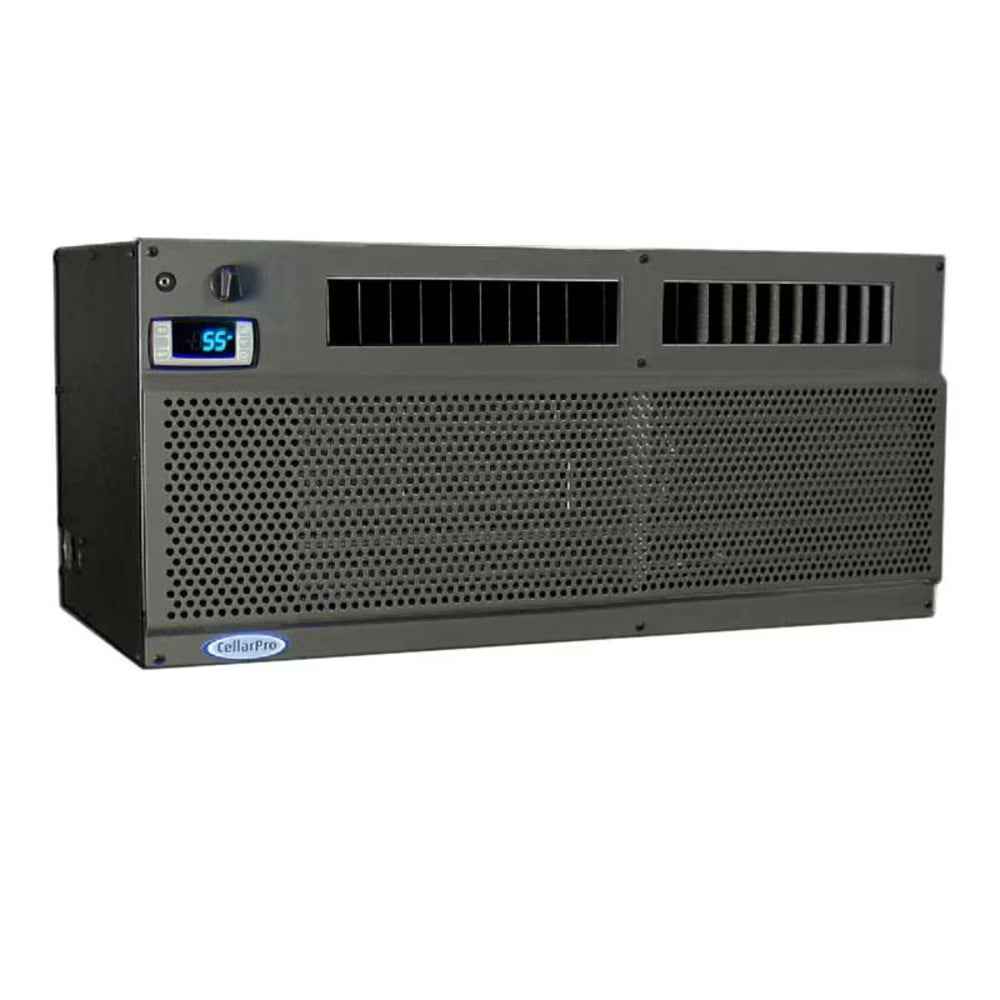

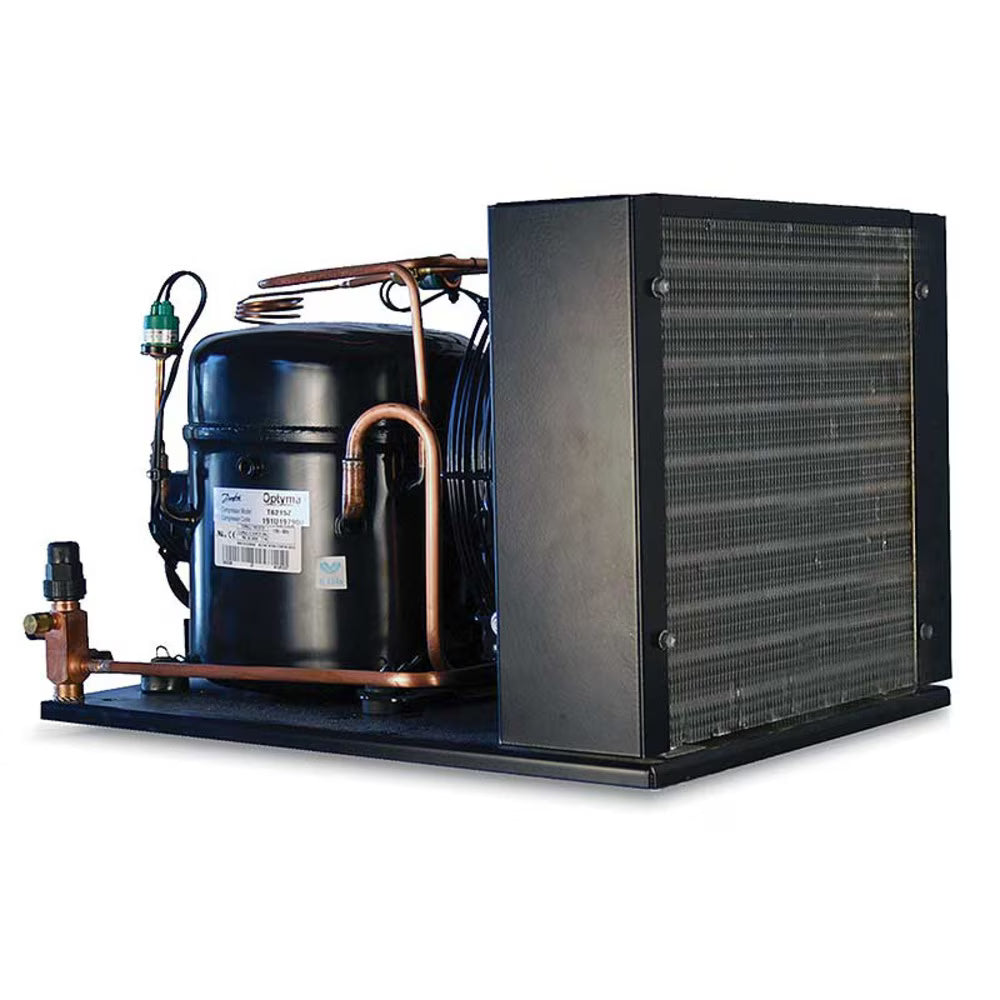

CellarPro 3000Sh-EC Cooling Unit (P/N 7402). NOW WITH ENERGY-EFFICIENT EC FANS! CellarPro engineered the Mini-Split 3000Sh-EC cooling system to provide maximum cooling power and adjustable humidity control for cellars up to 600 cubic feet. Split refrigeration systems separate the evaporator from the condensing unit, allowing the noise and heat from the condensing unit to be located away from interior living areas. Configurable for internal or external installations, the Mini-Split 3000Sh-EC includes a variable-speed fan on the evaporator with a low setting for quieter operation and a high setting for maximum power. This unit is the same as the 3000S Mini-Split, except that the evaporator is horizontal instead of vertical.

All air-cooled refrigeration equipment requires fresh air intake to dissipate the heat generated by the cooling unit. The fresh air intake CANNOT come from the wine cellar space - it must come from space outside the cellar.

Click on one of the following links for more information:

• Spec Sheet
• Sizing Table
• Monthly Operating Cost
• Evaporator Cut Sheet
• Condensing Unit Cut Sheet
• Evaporator Mounting Instructions
• Line Sizing Chart
• Configuration Options
• Wiring Diagram - Dual Power/ Valve Control
• Wiring Diagram - Single Power / Electronic Control
• Refrigerant Piping Diagram
• Refrigerant Piping Handbook
• Owner's Manual
• Product Brochure
• Installation Checklist
