Split Recessed Ceiling Mount 5/8 Ton 6000Scmr #34218
CellarPro Ceiling Mount Recessed 6000Scmr-EC (P/N 34218). NOW WITH ENERGY-EFFICIENT EC FANS! CellarPro engineered the Ceiling Mount Mini-Split 6000Scmr-EC cooling system to provide maximum cooling power and adjustable humidity control with a pair of ceiling-mounted evaporators that can be recessed in the ceiling and therefore hidden from view. The condensing unit can be configured for indoor or exterior installations, and the evaporator includes a variable-speed fan with a low setting for quieter operation and a high setting for maximum power.

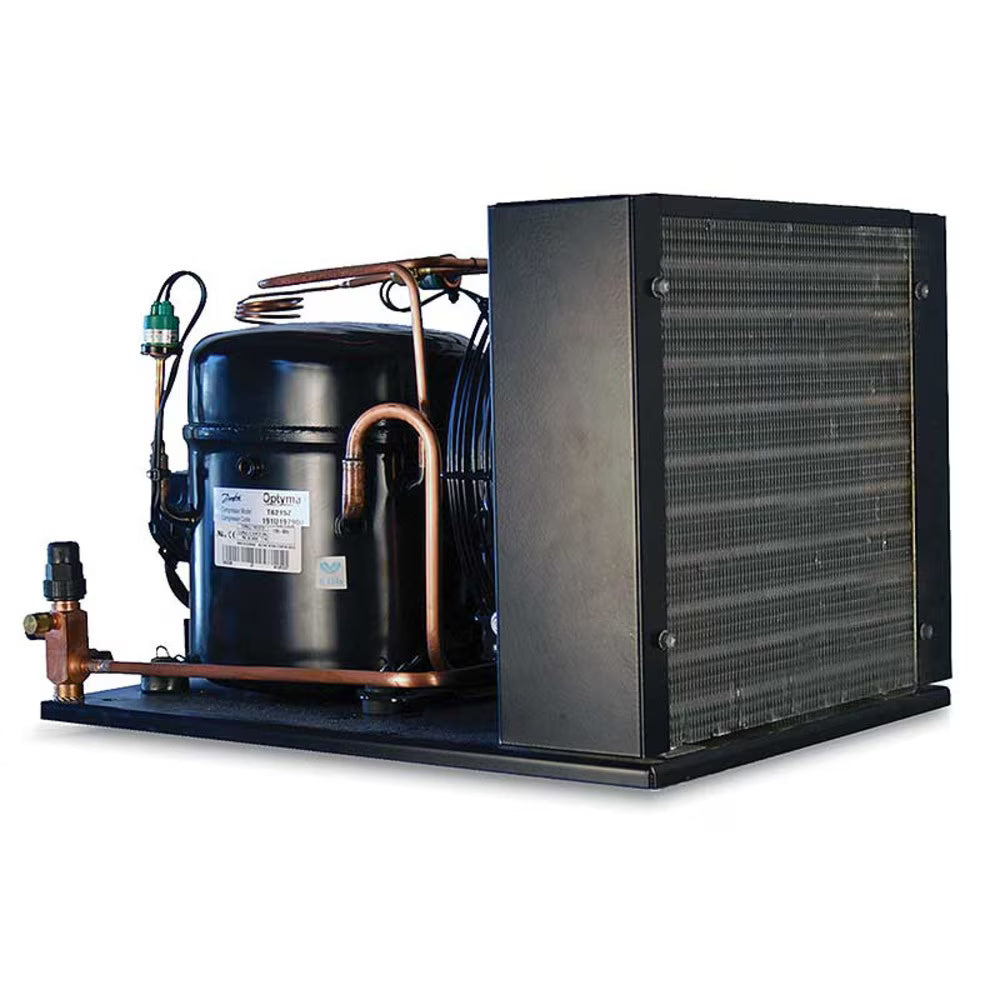

All air-cooled refrigeration equipment requires fresh air intake to dissipate the heat generated by the cooling unit. The condensing unit must be installed outside the cellar in a location that provides ample space and access to fresh air.
Size: 71 3/4 x 14 1/4 x 12 7/8 (in)
Weight: 174 lbs

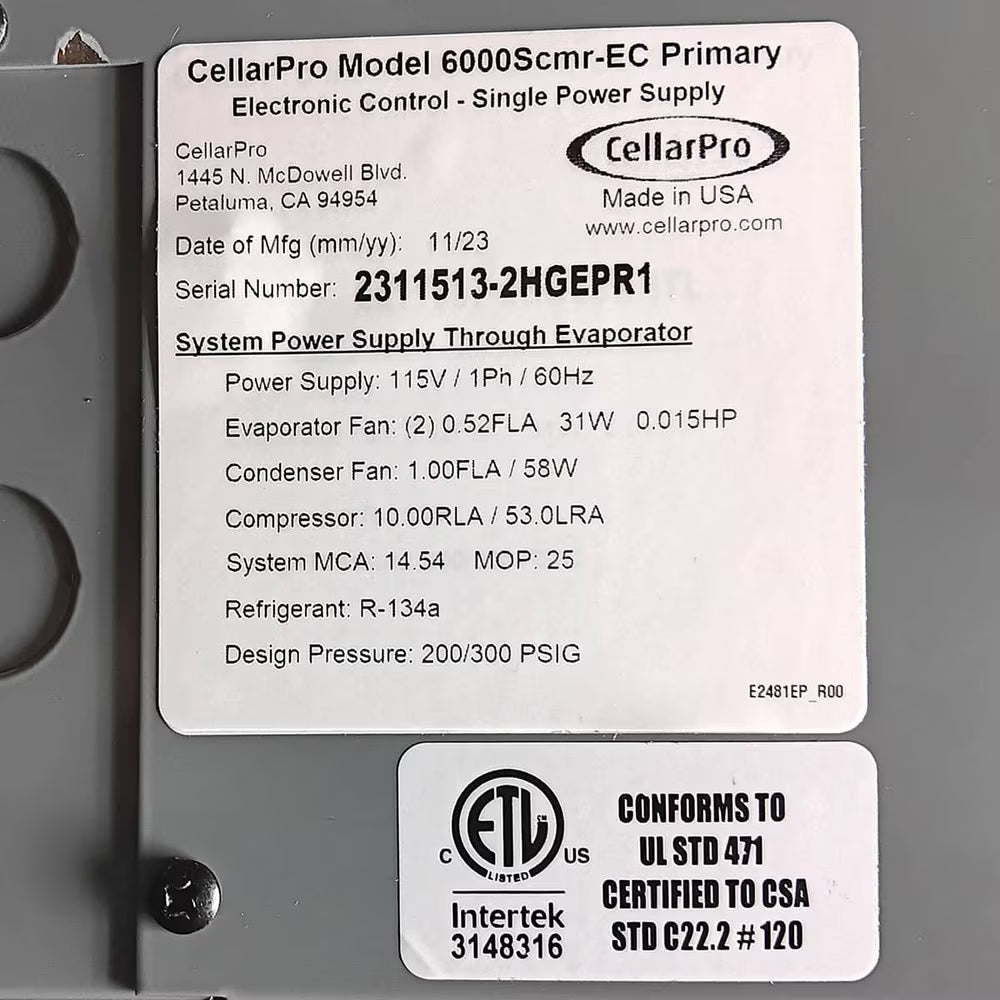

Power/Rating:
115V AC / 60 Hz
System Amps:
- Common dedicated 15-amp Evaporator and 20-amp Condenser circuit (valve control) or 25-amp circuit (electronic control) is required to power the unit.
- Startup: 53.0 Amps
- Unit Amp Rating: 12.1 Amps (high fan speed)
- Total Watts: 955 (med fan speed)
BTUH @ 55F / Evaporator Decibels
- Low Fan Speed: 4141 / 54 dbA
- Medium Fan Speed: 4789 / 58 dbA
- High Fan Speed: 5000 / 66 dbA
- 5/8 Ton Nominal
Condensing Unit Decibels
- Indoor: 65
- Outdoor: 63
Sizing Table: Click here to view sizing table
Warranty Resources
- Warranty Overview
- Limited Warranty - 2 Years (Entire System)
- To activate your warranty, you must complete and return our Split Installation Checklist.
- Optional Extended Warranty sold separately.
Click on one of the following links for more information:
- Spec Sheet
- Sizing Table
- Monthly Operating Cost
- Recessed Configuration Cut Sheet
- Flush Configuration Cut Sheet
- Recessed Configuration Framing Diagram
- Flush Configuration Framing Diagram
- Line Sizing Chart
- Configuration Options
- Wiring Diagram - Dual Power/ Valve Control
- Wiring Diagram - Single Power / Electronic Control
- Refrigerant Piping Diagram
- Refrigerant Piping Handbook
- Owner's Manual
- Installation Checklist
Details
• Available Wiring options: Electronic Control, Valve Control

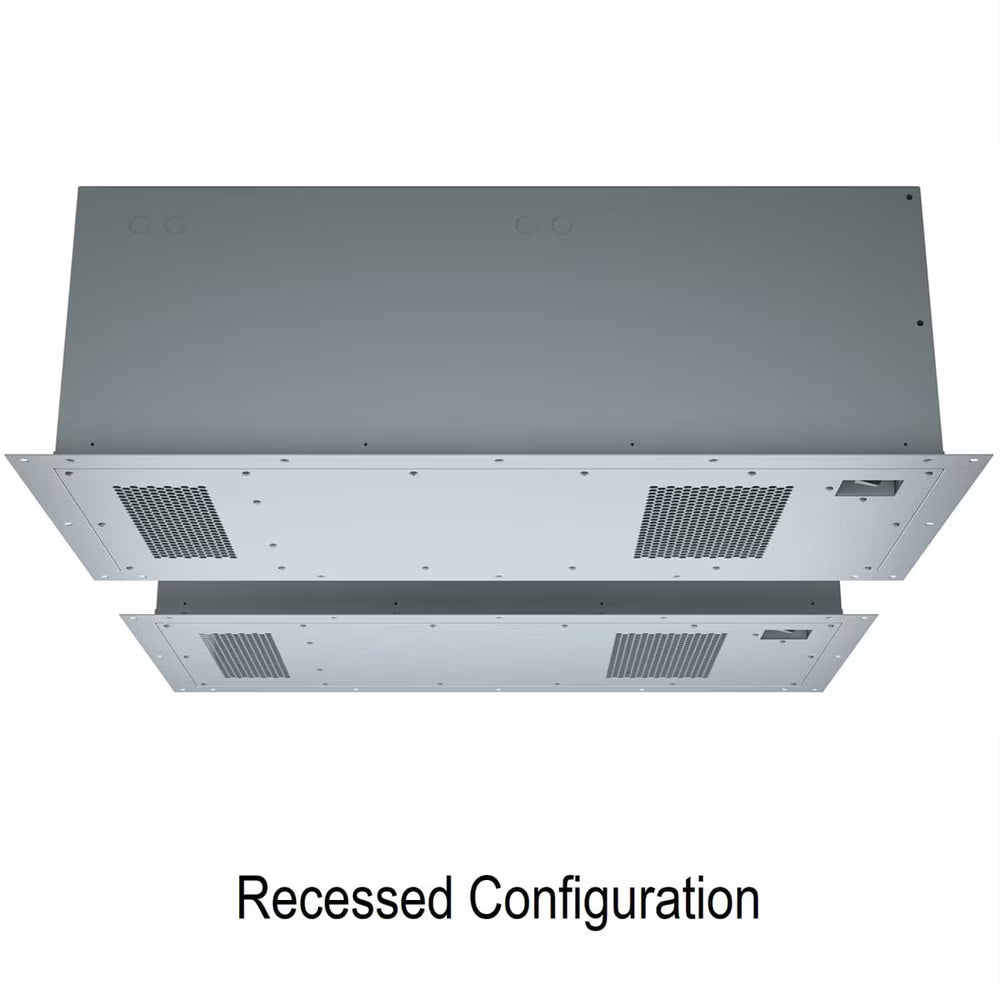

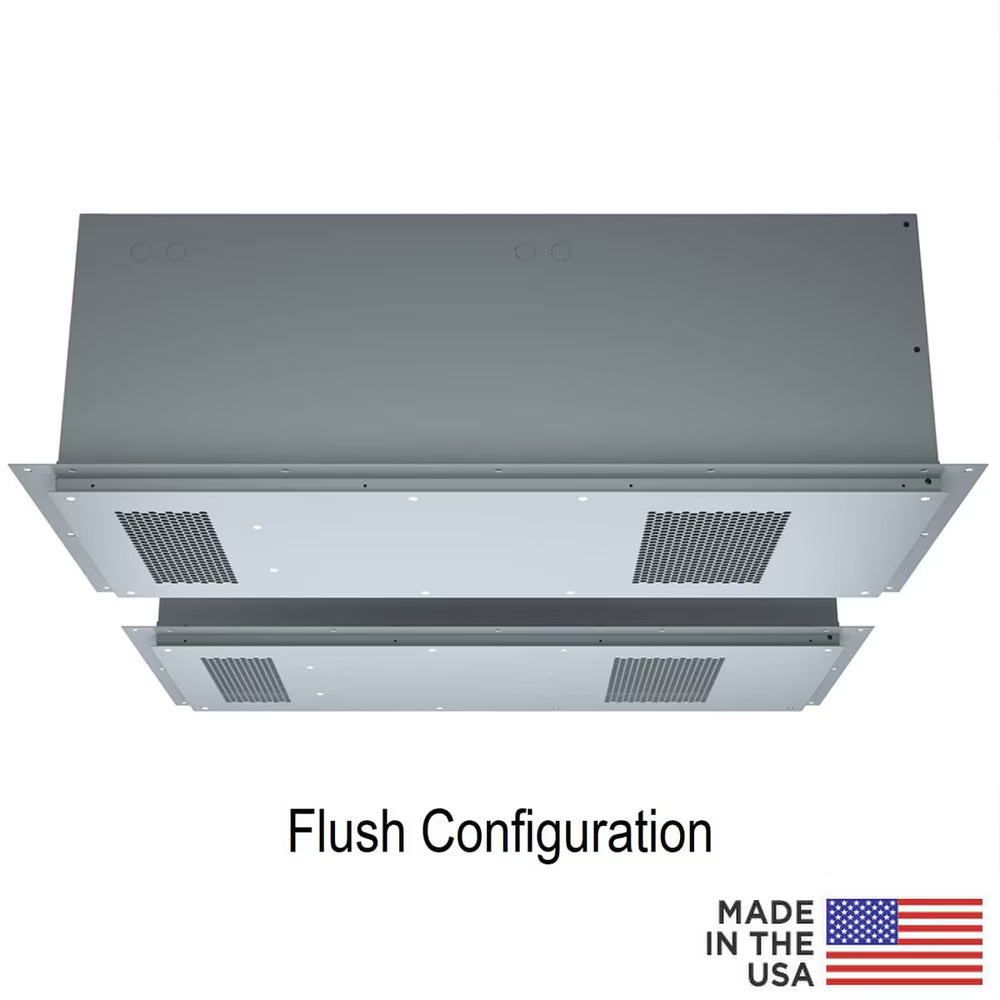

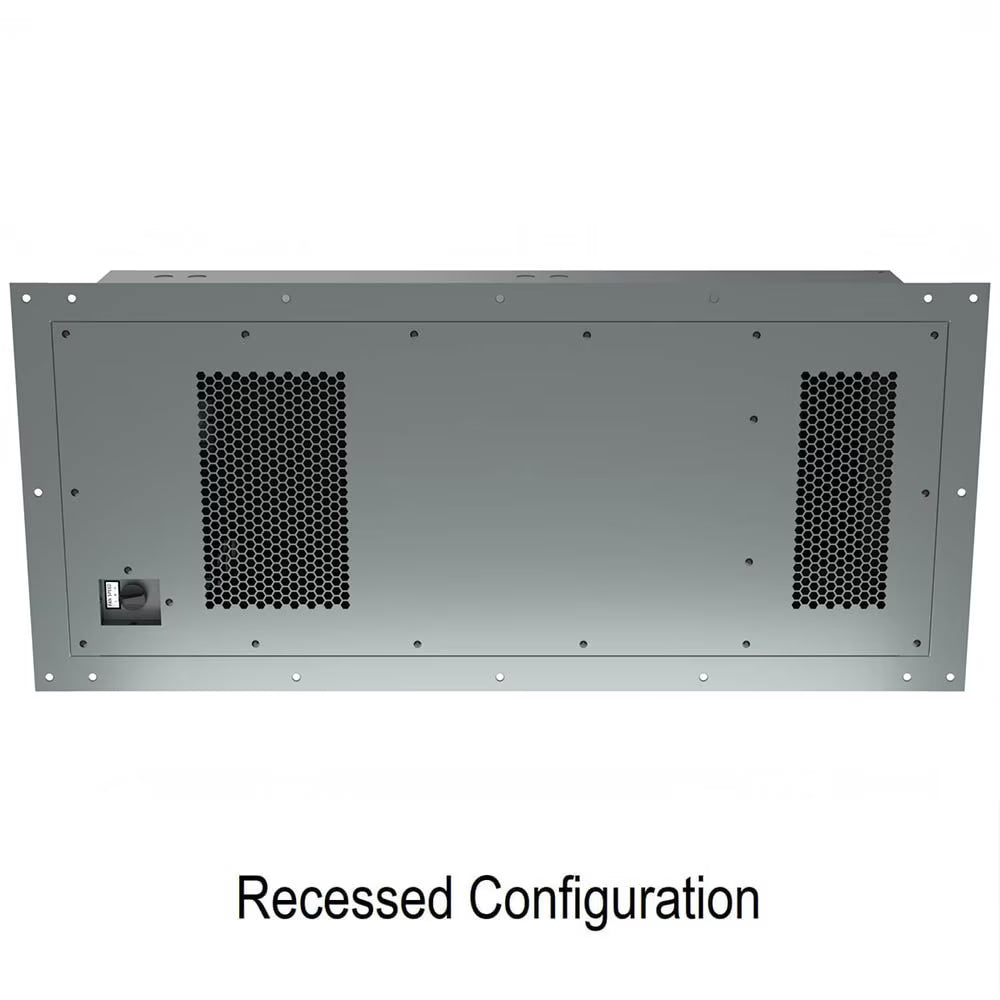

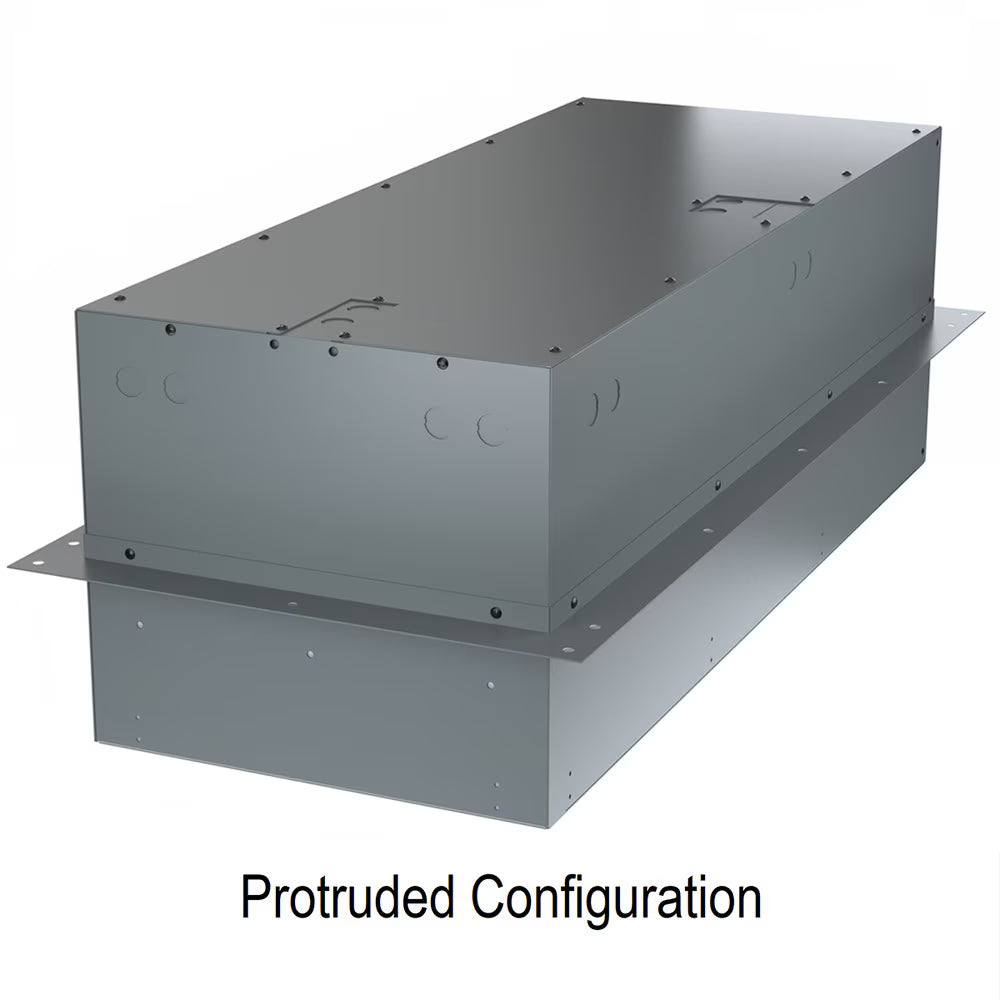

• Available Evaporator Mounting Configuration options: Flush to Ceiling, Recessed / Protruded
• Available Condensing Unit Exposure options: Indoor, Outdoor
