Split Recessed Ceiling Mount 3/4 Ton 8000Scmr #34219

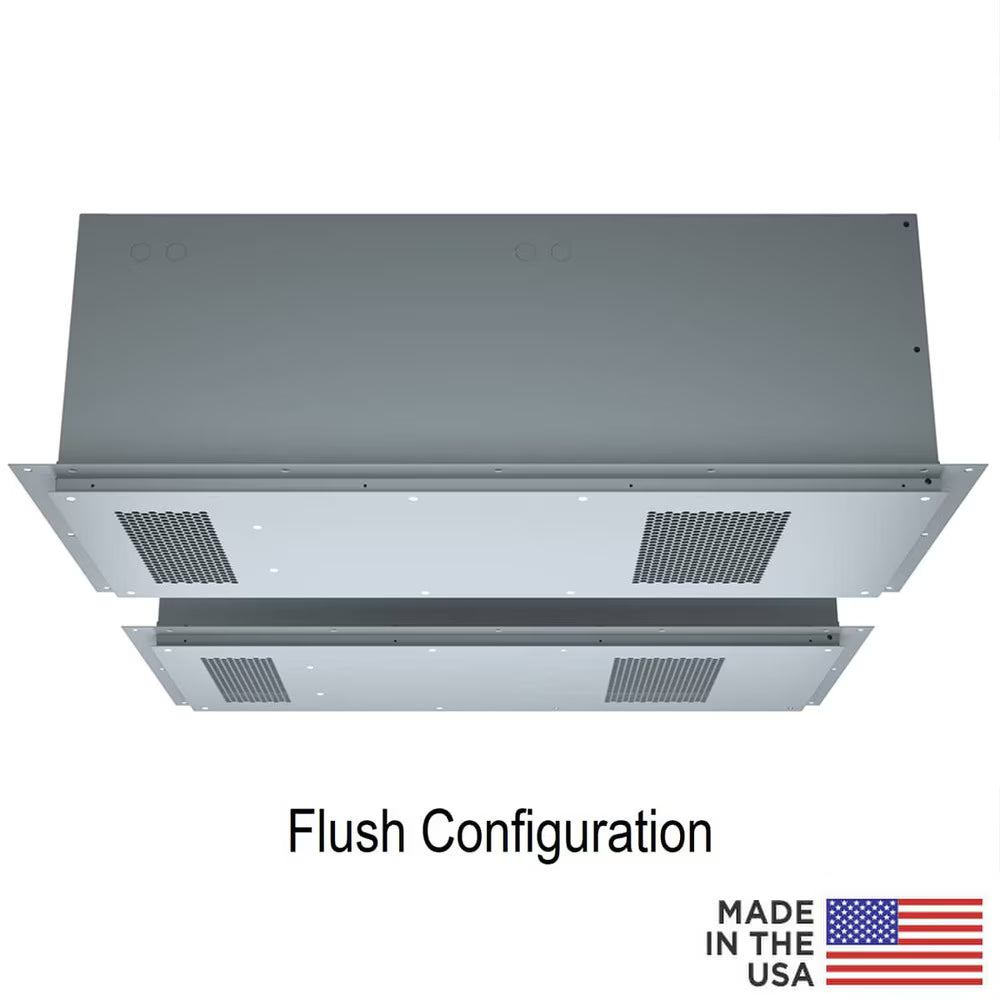

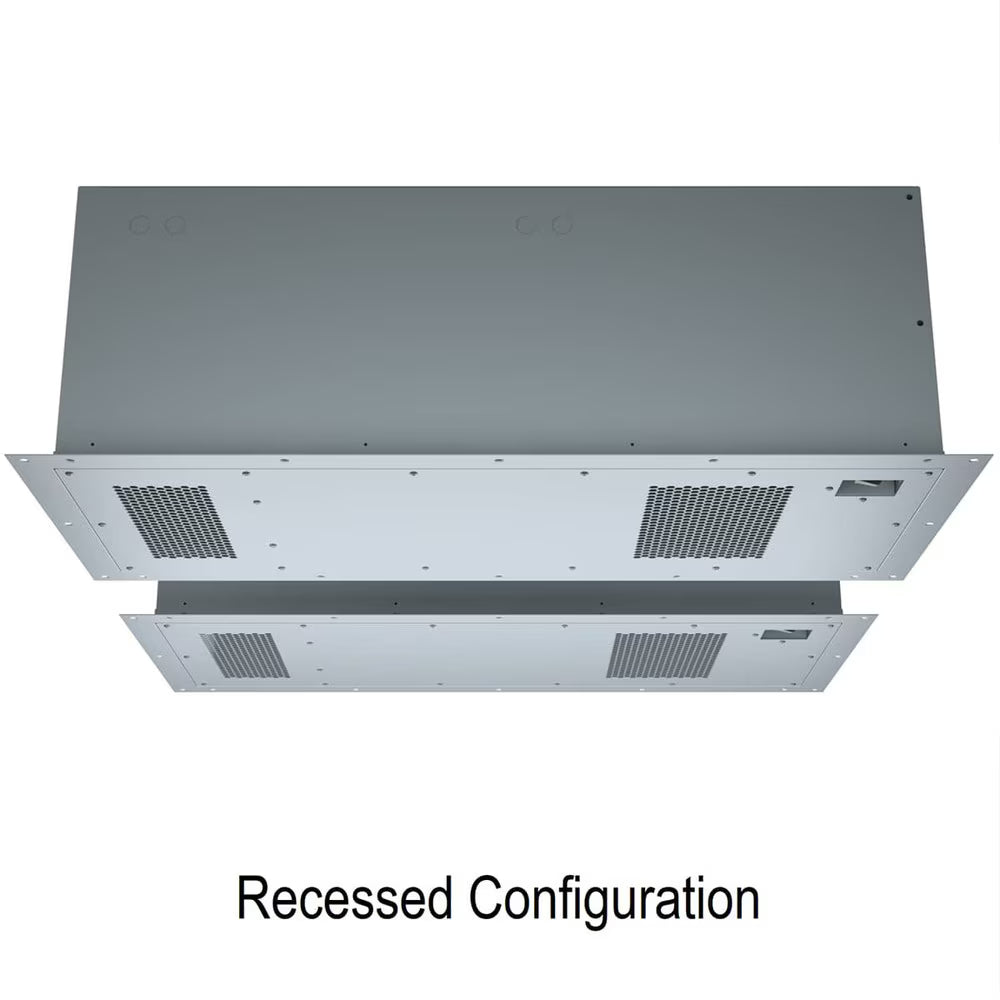

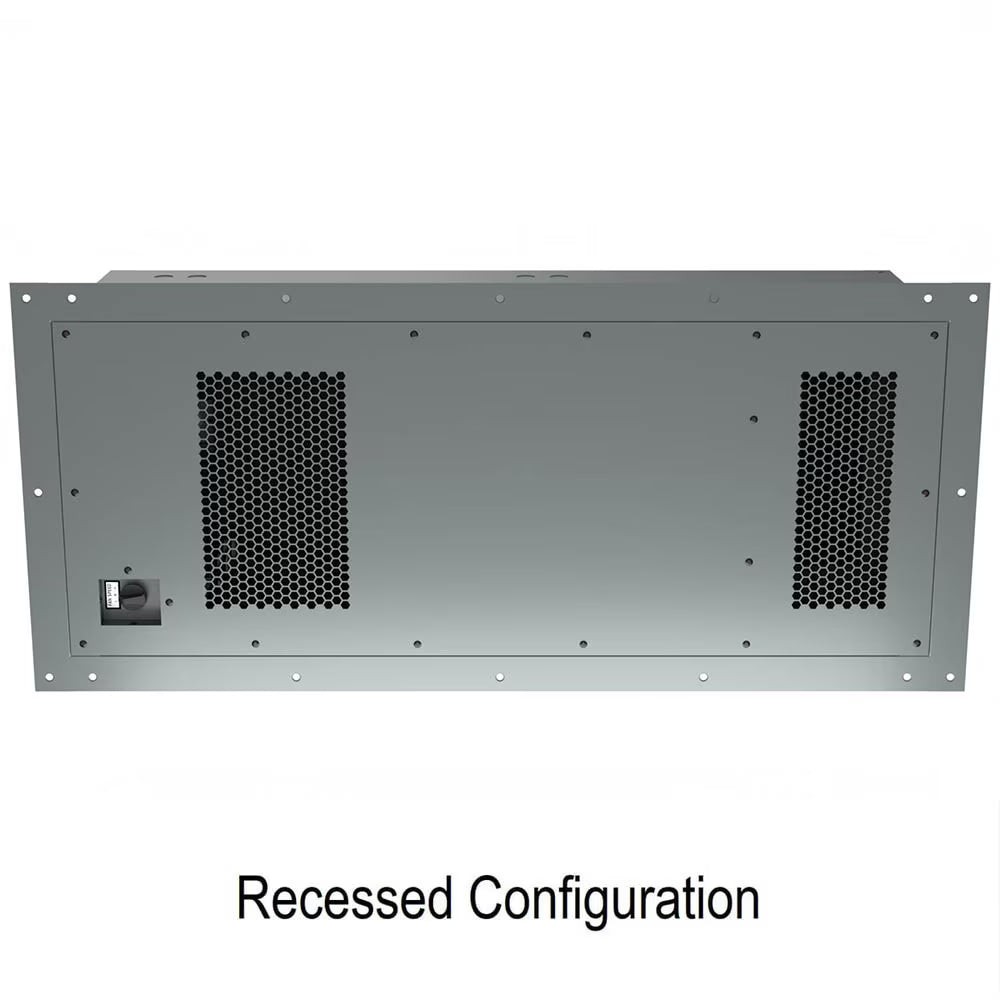

CellarPro Ceiling Mount Recessed 8000Scmr-EC (P/N 34219). NOW WITH ENERGY-EFFICIENT EC FANS! CellarPro engineered the Ceiling Mount Mini-Split 8000Scmr-EC cooling system to provide maximum cooling power and adjustable humidity control with a pair of ceiling-mounted evaporators that can be recessed in the ceiling and therefore hidden from view. The condensing unit can be configured for indoor or exterior installations, and the evaporator includes a variable-speed fan with a low setting for quieter operation and a high setting for maximum power.

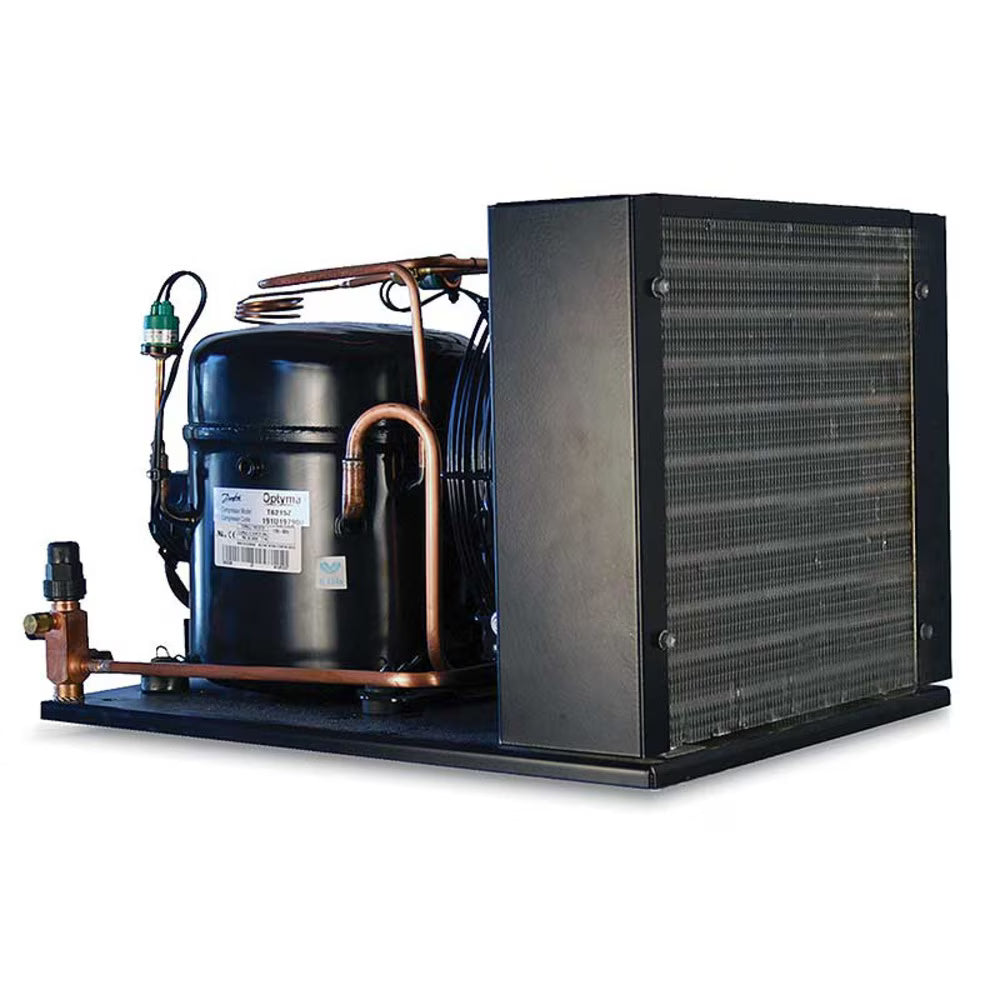

All air-cooled refrigeration equipment requires fresh air intake to dissipate the heat generated by the cooling unit. The condensing unit must be installed outside the cellar in a location that provides ample space and access to fresh air.

Size: 71 3/4 x 14 1/4 x 12 7/8 (in)

Weight: 272 lbs

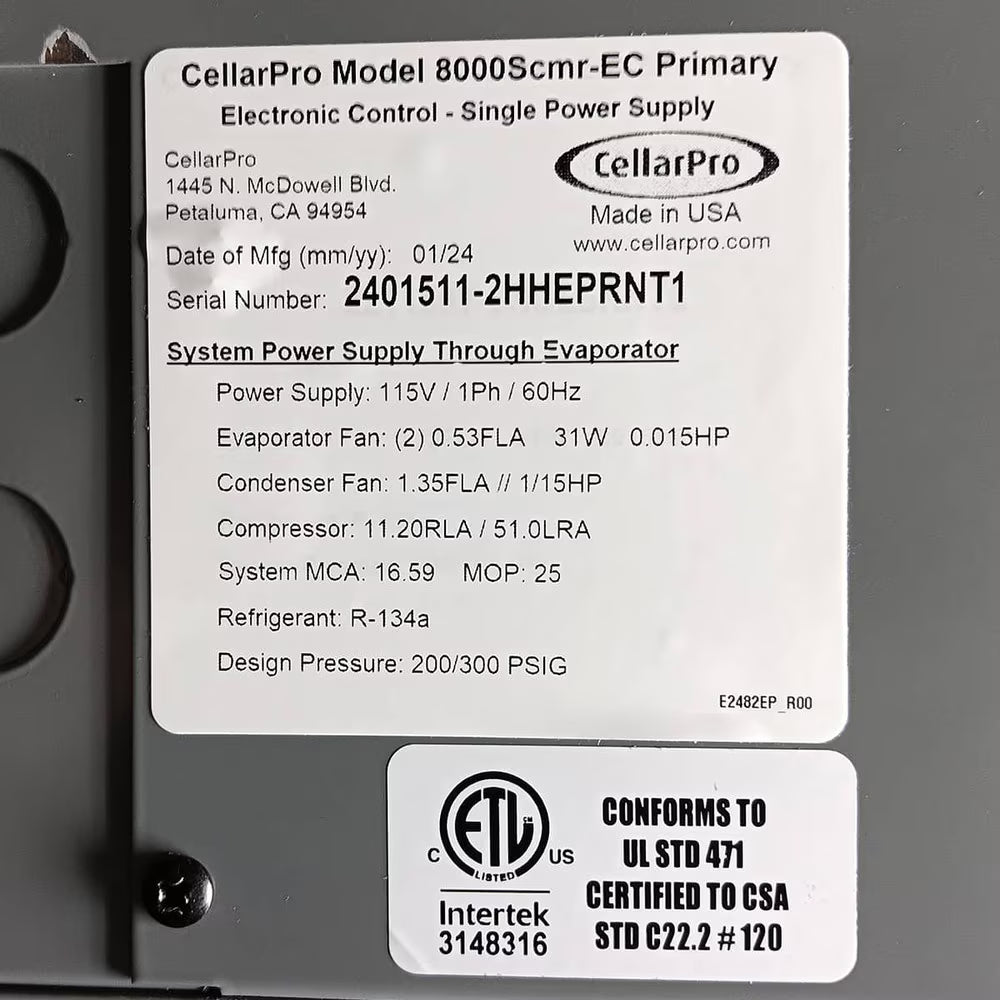

Power/Rating:
115V AC / 60 Hz

System Amps:
- Common dedicated 15-amp Evaporator and 25-amp Condenser circuit (valve control) or 25-amp circuit (electronic control) is required to power the unit.
- Startup: 51.0 Amps
- Unit Amp Rating: 13.6 Amps (high fan speed)
- Total Watts: 1061 (med fan speed)

BTUH @ 55F:
- Low Fan Speed: 5042
- Medium Fan Speed: 5831
- High Fan Speed: 6088

- 3/4 Ton Nominal

Evaporator Decibels
- Low Fan Speed: 54 dbA
- Medium Fan Speed: 58 dbA
- High Fan Speed: 66 dbA

Condensing Unit Decibels
- Indoor: 67
- Outdoor: 65

Sizing Table: Click here to view sizing table

Warranty Resources
- Warranty Overview
- Limited Warranty - 2 Years (Entire System)
- To activate your warranty, you must complete and return our Split Installation Checklist.
- Optional Extended Warranty sold separately.
