Split Recessed Ceiling Mount 1/3 Ton 3000Scmr #32032

CellarPro Ceiling Mount Recessed 3000Scmr-EC (P/N 32032). NOW WITH ENERGY-EFFICIENT EC FANS! CellarPro engineered the Ceiling Mount Mini-Split 3000Scmr-EC cooling system to provide maximum cooling power and adjustable humidity control with a ceiling-mounted evaporator that can be recessed in the ceiling and therefore hidden from view. The condensing unit can be configured for indoor or exterior installations, and the evaporator includes a variable-speed fan with a low setting for quieter operation and a high setting for maximum power.

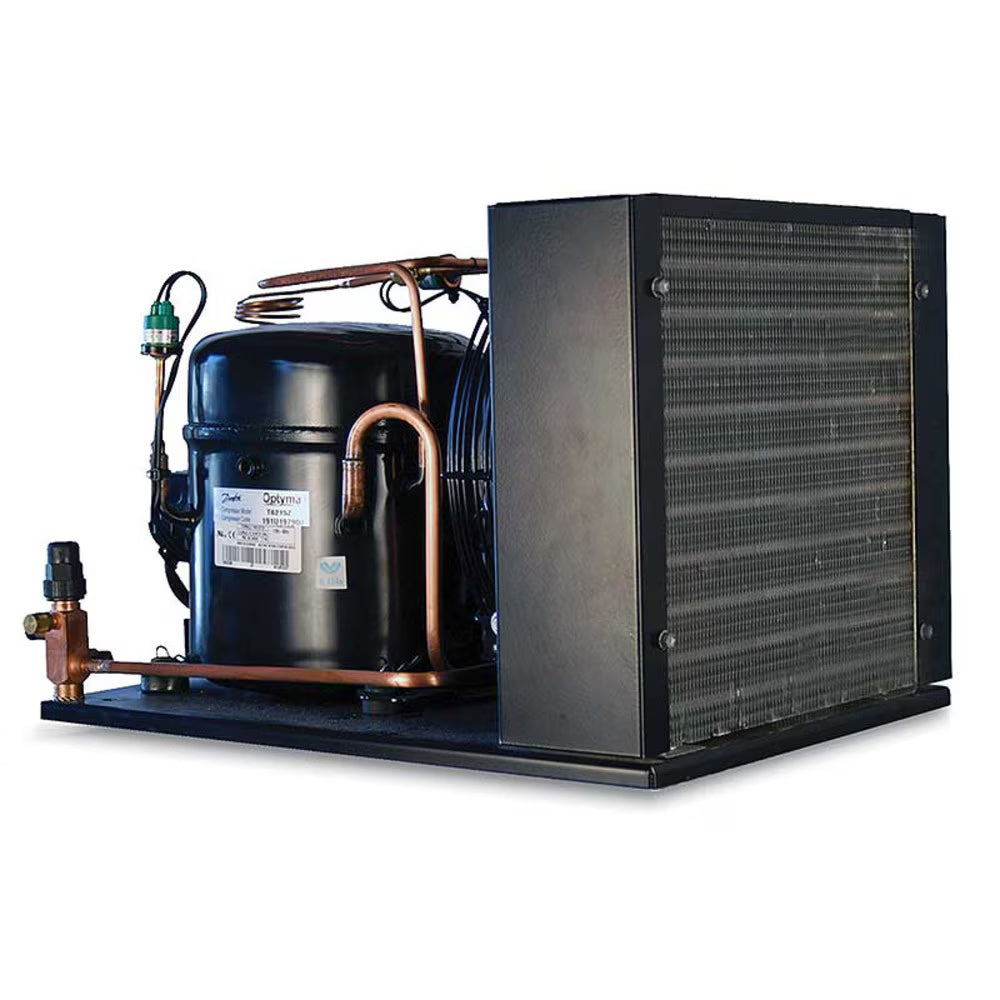

All air-cooled refrigeration equipment requires fresh air intake to dissipate the heat generated by the cooling unit. The condensing unit must be installed outside the cellar in a location that provides ample space and access to fresh air.

• Spec Sheet
• Sizing Table
• Monthly Operating Cost

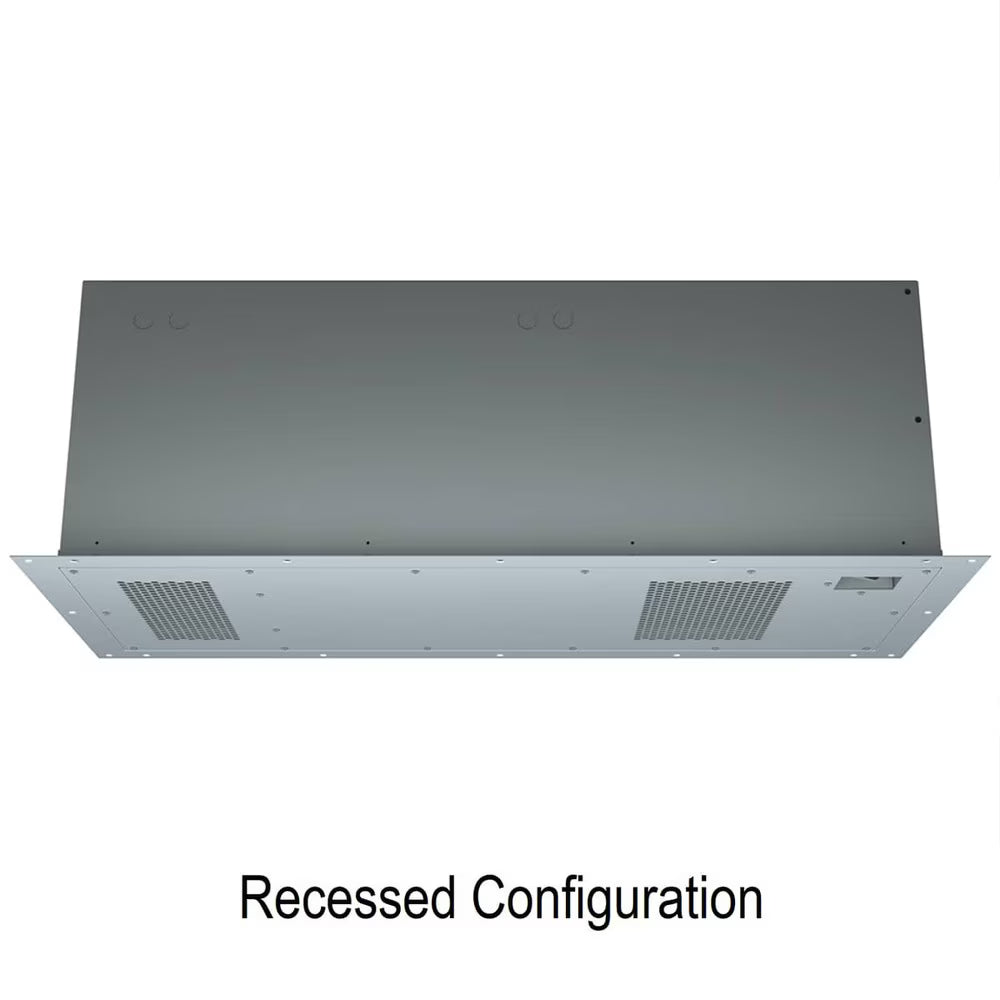

• Recessed Configuration Cut Sheet

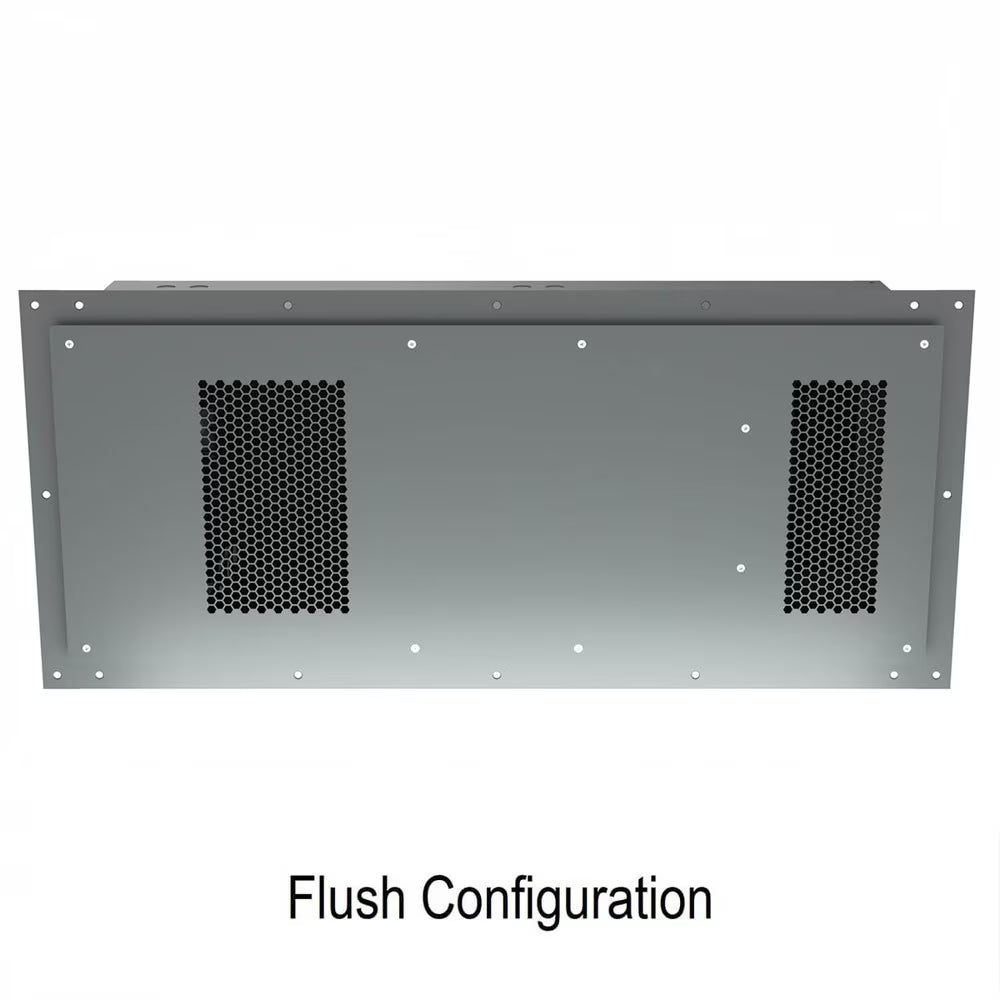

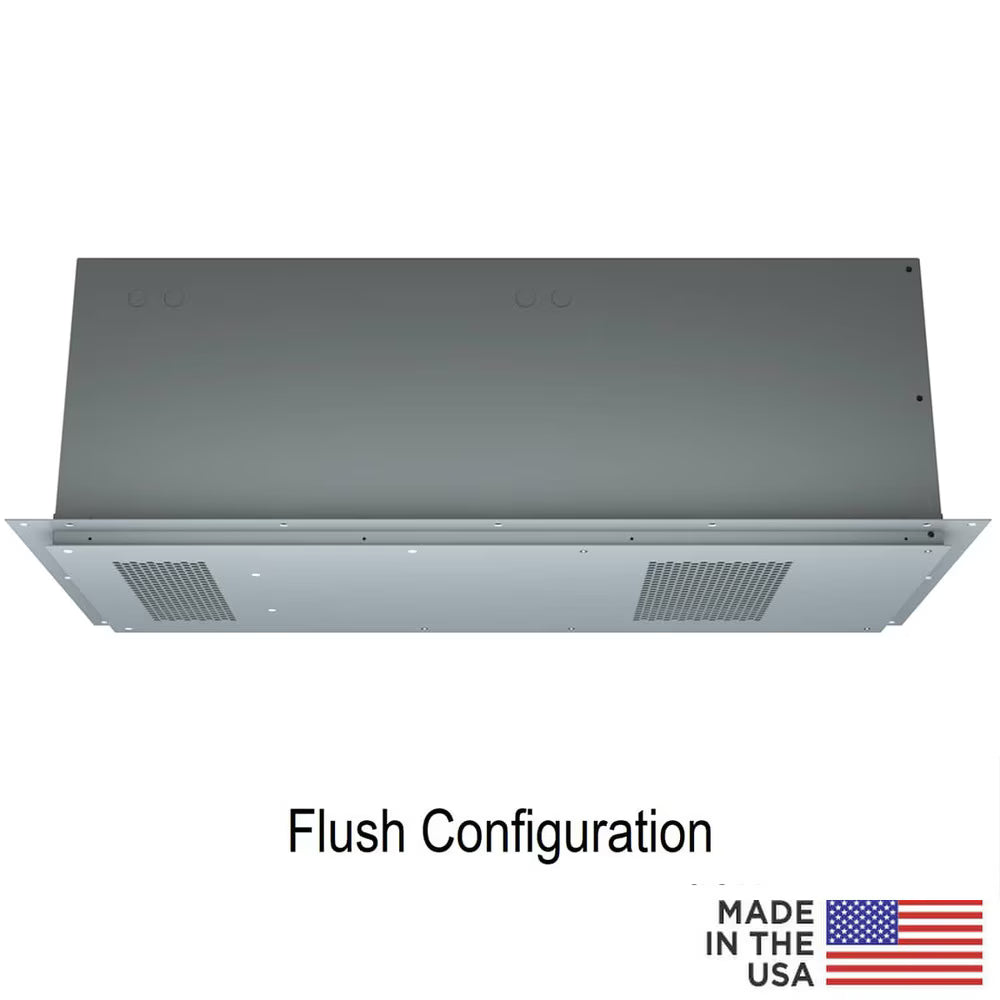

• Flush Configuration Cut Sheet
• Recessed Configuration Framing Diagram
• Flush Configuration Framing Diagram
• Line Sizing Chart

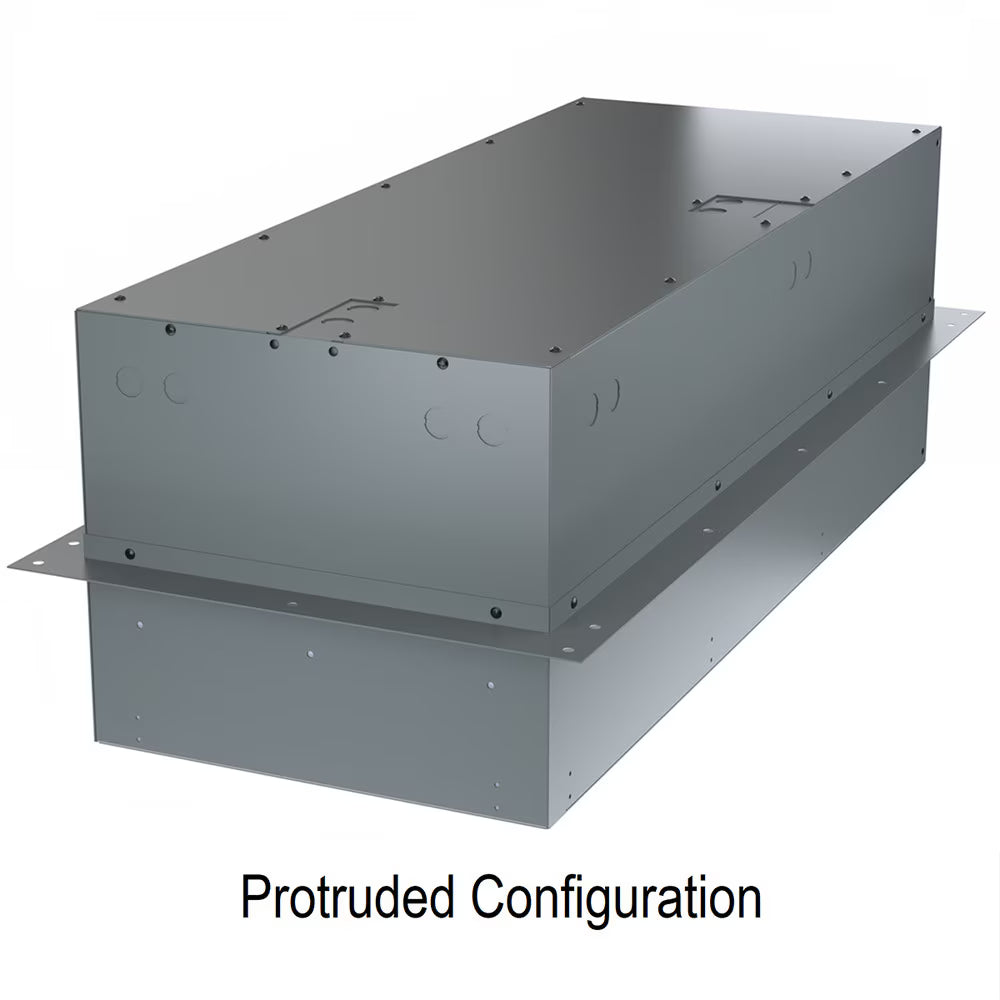

• Configuration Options
• Wiring Diagram - Dual Power/ Valve Control
• Wiring Diagram - Single Power / Electronic Control
• Refrigerant Piping Diagram
• Refrigerant Piping Handbook
• Owner's Manual
• Installation Checklist

2720 SENSIBLE BTUH @ 55F.

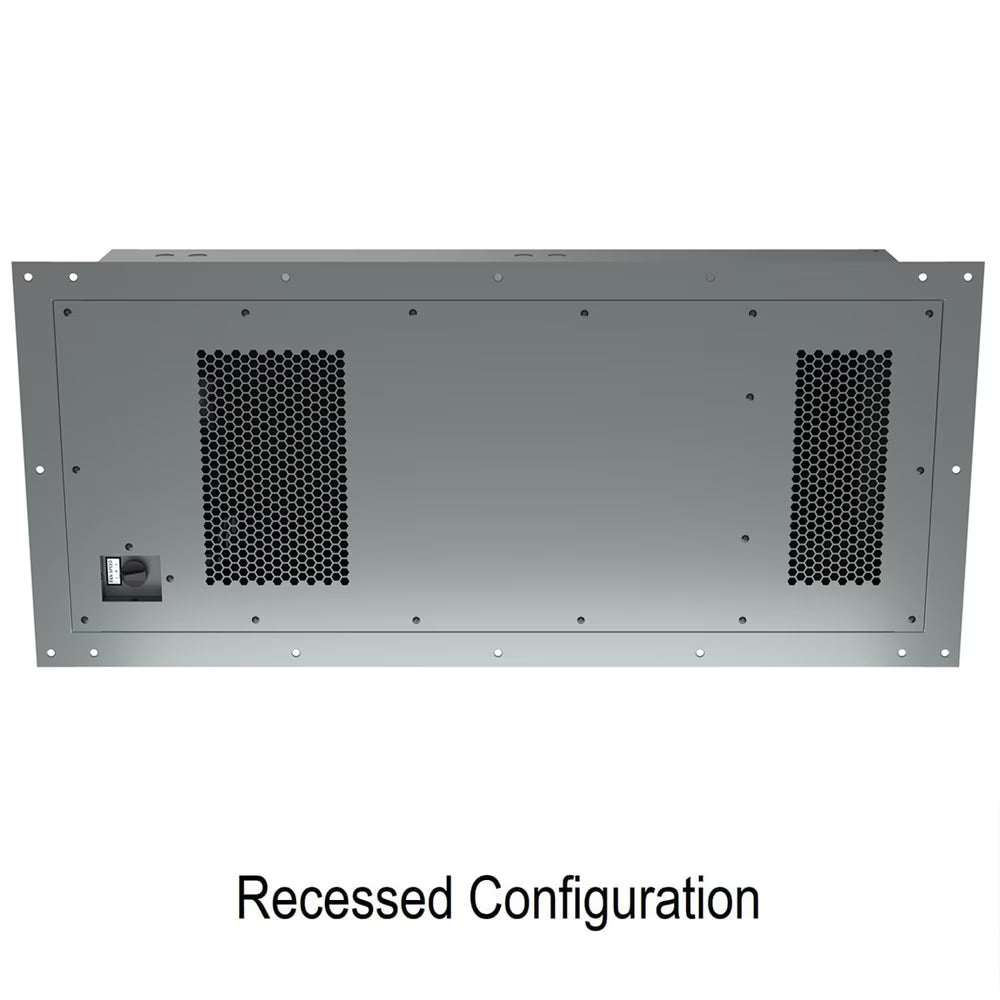

CellarPro's 3000Scmr-EC Recessed Ceiling Mount split cooling system features an evaporator (1/3 Ton Nominal) that is designed to be recessed in the ceiling. This unit is suitable for wine cellars up to 600* cubic feet in both commercial and residential wine cellars.

Performance testing shows that this unit maintains optimal cellar temperature and humidity conditions in extreme conditions up to 110F more effectively than similar units from competing brands. 3000Scmr-EC units use energy-efficient EC fans in the evaporator and are significantly quieter than comparable units from other manufacturers.

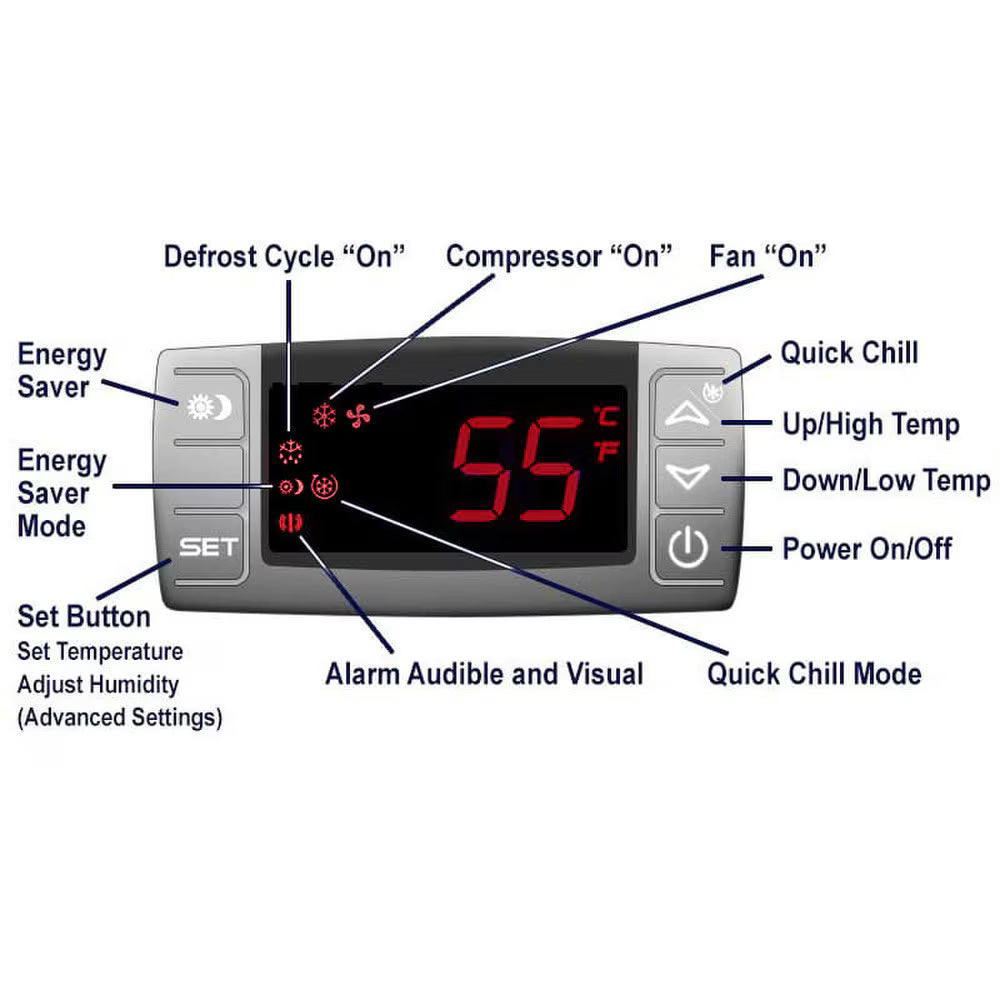

All ceiling-mount units include our remote display with 20-feet of low-voltage wiring (additional wiring available upon request) and an integrated condensate pump as standard equipment. Visit our Learning Center for data tables, performance charts and product comparisons among different brands.

*The cellar size assumes that the cellar is constructed with a proper vapor barrier, insulation of R19 or better in all walls and ceiling (ie no glass or uninsulated concrete), a setpoint of 55F inside the cellar and ambient temperatures up to 85F outside the cellar.

Our cooling units are designed to be used in properly-constructed wine cellars that are adequately insulated, airtight and sealed with a vapor barrier. In improperly-constructed cellars, the cooling unit will create excess condensation, leading to damage and premature failure of your cooling unit (not covered by warranty).

Please note: If the condensing unit will be installed outdoors, you must use our OEM Outdoor Hood to comply with our warranty. Even with our outdoor hood, our units were not designed for, and our warranty does not cover damage from, marine exposure (within 5 miles of the ocean). In these environments, you will need an applied coating, such as Insitu®, to protect outdoor components against corrosion that is common in coastal regions.
