Split Recessed Ceiling Mount 1/2 Ton 4000Scmr #34217
CellarPro Ceiling Mount Recessed 4000Scmr-EC (P/N 34217). NOW WITH ENERGY-EFFICIENT EC FANS! CellarPro engineered the Ceiling Mount Split 4000Scmr-EC cooling system to provide maximum cooling power and adjustable humidity control with a ceiling-mounted evaporator that can be recessed in the ceiling and therefore hidden from view. The condensing unit can be configured for indoor or exterior installations, and the evaporator includes a variable-speed fan with a low setting for quieter operation and a high setting for maximum power.

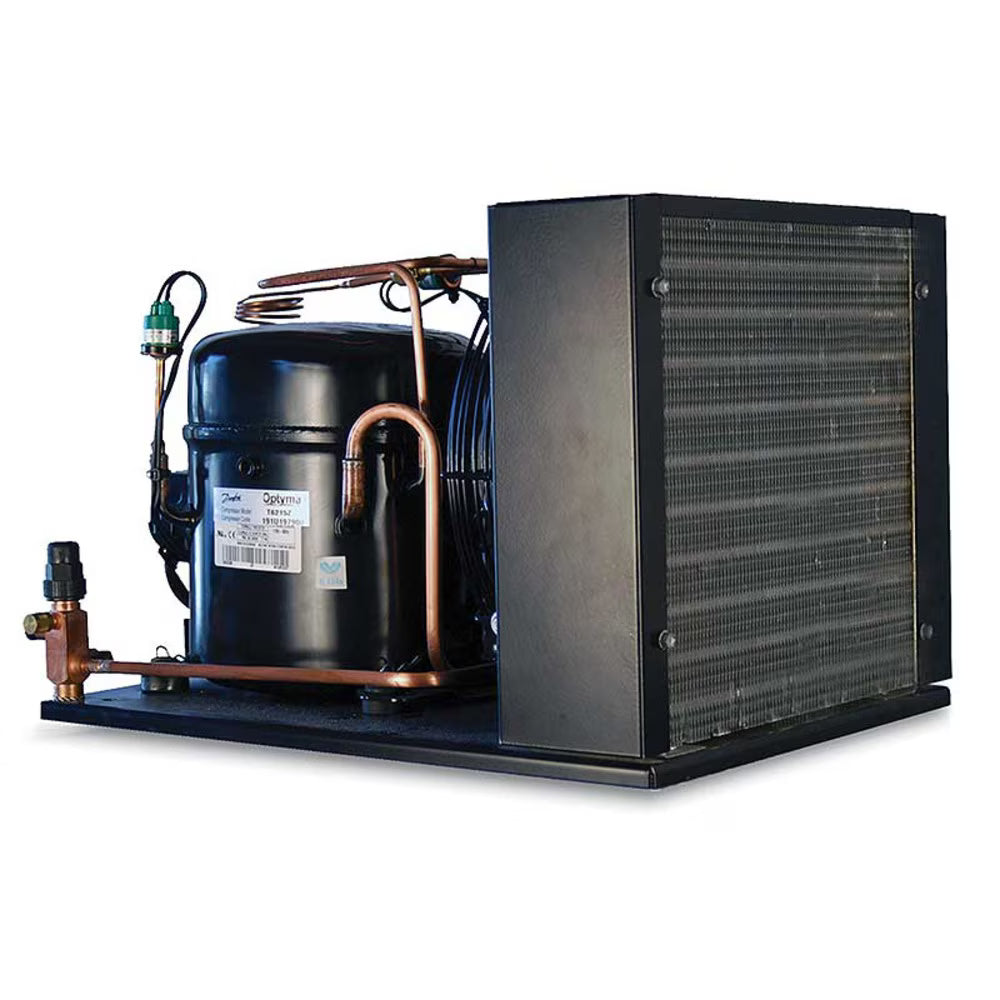

All air-cooled refrigeration equipment requires fresh air intake to dissipate the heat generated by the cooling unit. The condensing unit must be installed outside the cellar in a location that provides ample space and access to fresh air.
Size (Evaporator): 35 3/4w x 14 1/4d x 12 7/8h (in)
Weight: 142 lbs
Power/Rating:
115V AC / 60 Hz
System Amps:
- Common dedicated 15-amp circuit is required to power the unit.
- Startup: 40.0 Amps
- Unit Amp Rating: 8 Amps (high fan speed)
- Total Watts: 608 (med fan speed)
BTUH @ 55F / Evaporator Decibels
- Low Fan Speed: 3059 BTUH / 51 dbA
- Medium Fan Speed: 3538 BTUH / 55 dbA
- High Fan Speed: 3694 / 63 dbA
- 1/2 Ton Nominal
Condensing Unit Decibels
- Indoor: 64
- Outdoor: 62
Sizing Table: Click here to view Sizing Table
Warranty Resources
- Warranty Overview
- Limited Warranty - 2 Years (Entire System)
- To activate your warranty, you must complete and return our Split Installation Checklist.
- Optional Extended Warranty sold separately.
Click on one of the following links for more information:
- Spec Sheet
- Sizing Table
- Monthly Operating Cost
- Recessed Configuration Cut Sheet
- Flush Configuration Cut Sheet
- Recessed Configuration Framing Diagram
- Flush Configuration Framing Diagram
- Line Sizing Chart
- Configuration Options
- Wiring Diagram - Dual Power/ Valve Control
- Wiring Diagram - Single Power / Electronic Control
- Refrigerant Piping Diagram
- Refrigerant Piping Handbook
- Owner's Manual
- Installation Checklist
Details

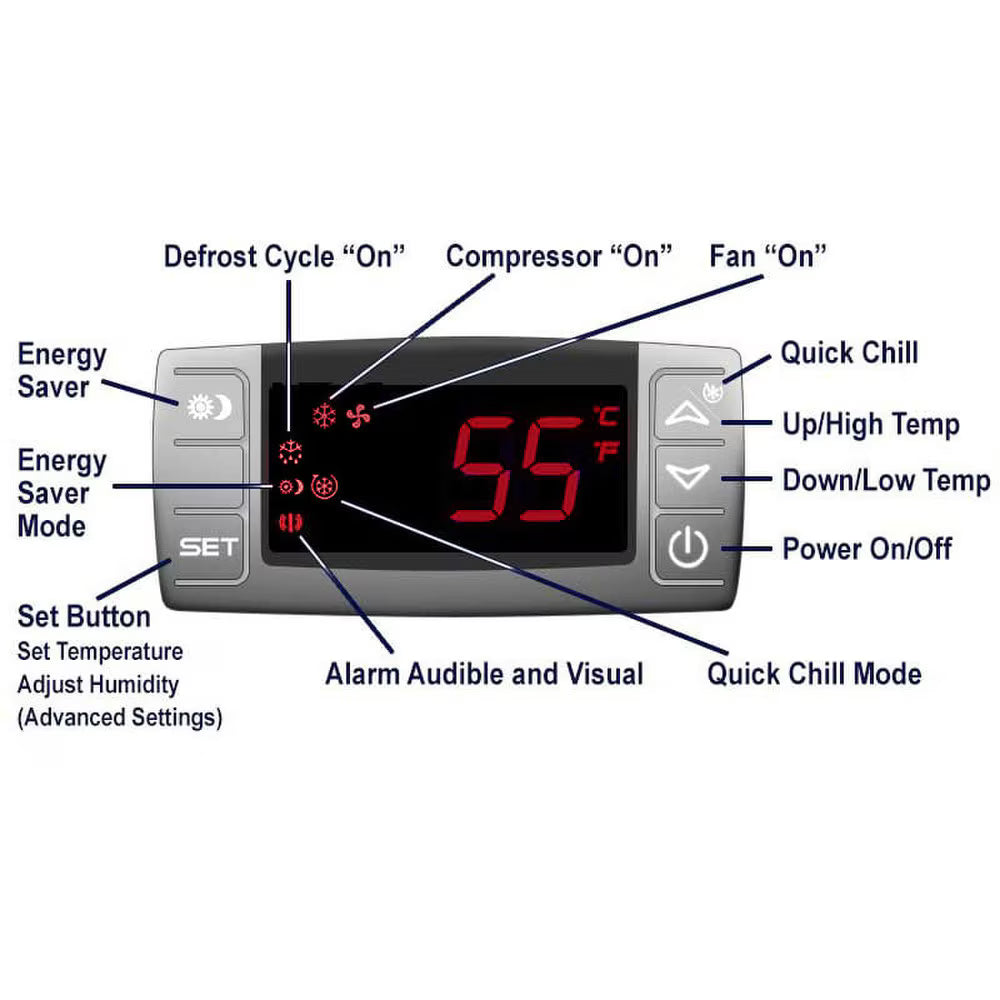

• Available Wiring options: Electronic Control, Valve Control

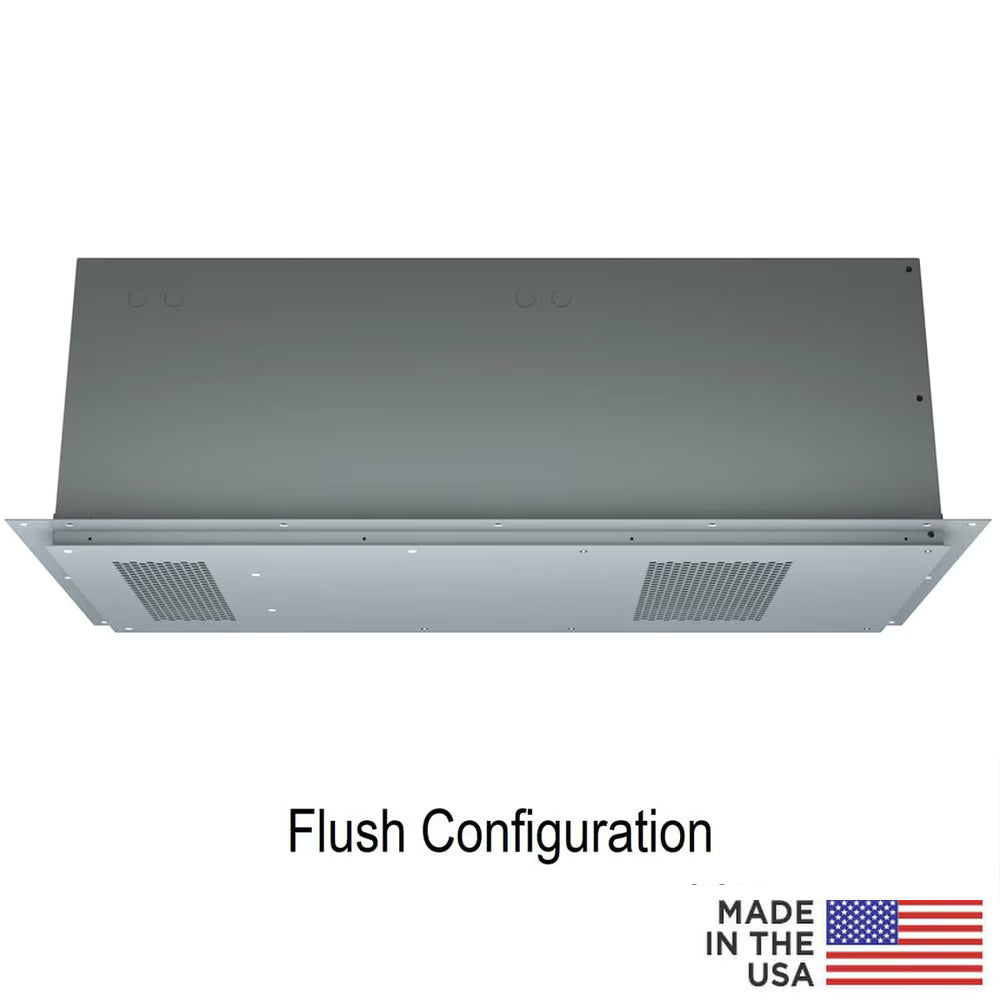

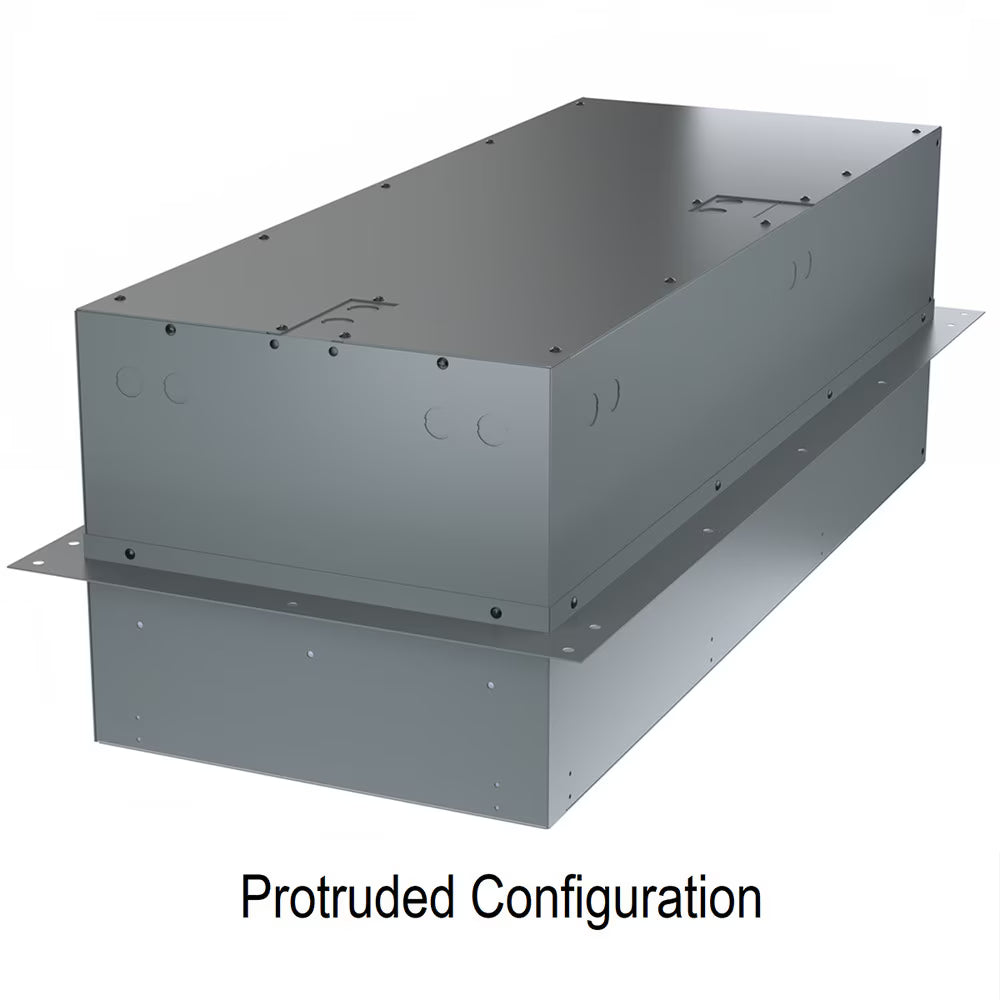

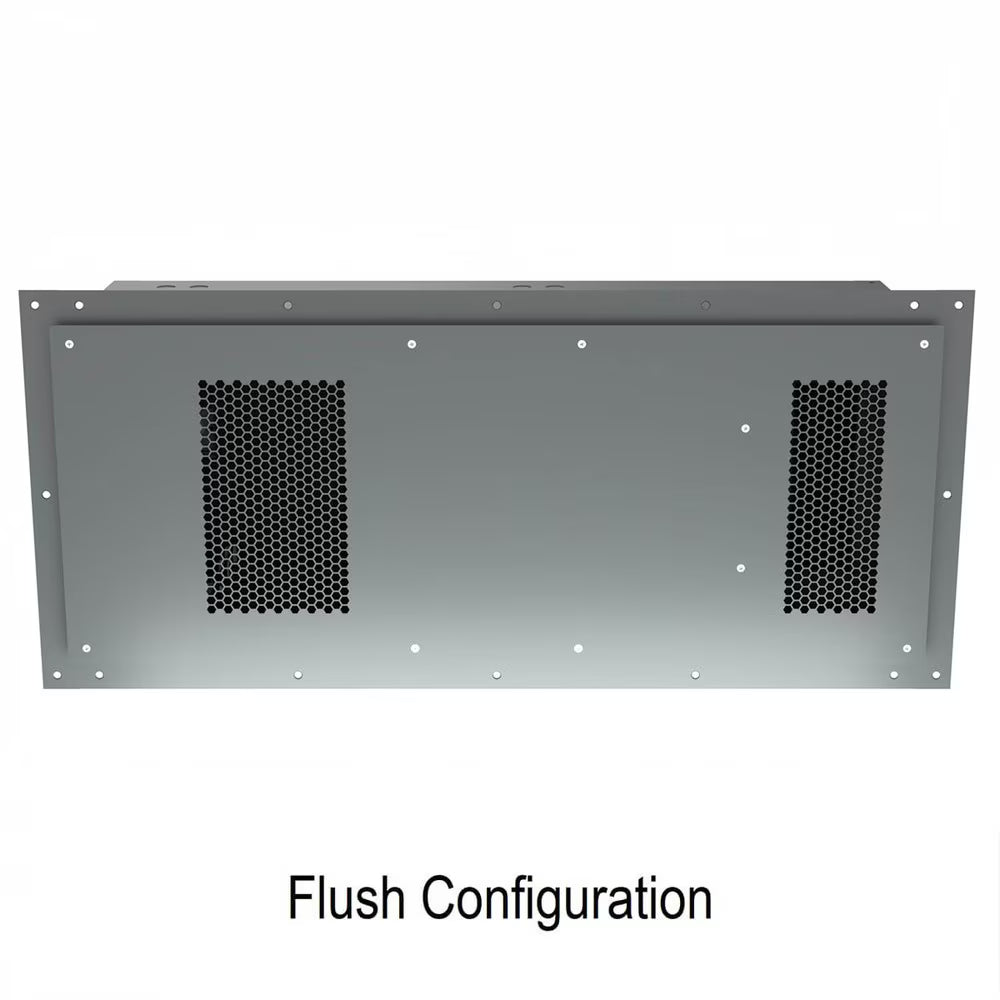

• Available Evaporator Mounting Configuration options: Flush to Ceiling, Recessed / Protruded
• Available Condensing Unit Exposure options: Indoor, Outdoor
