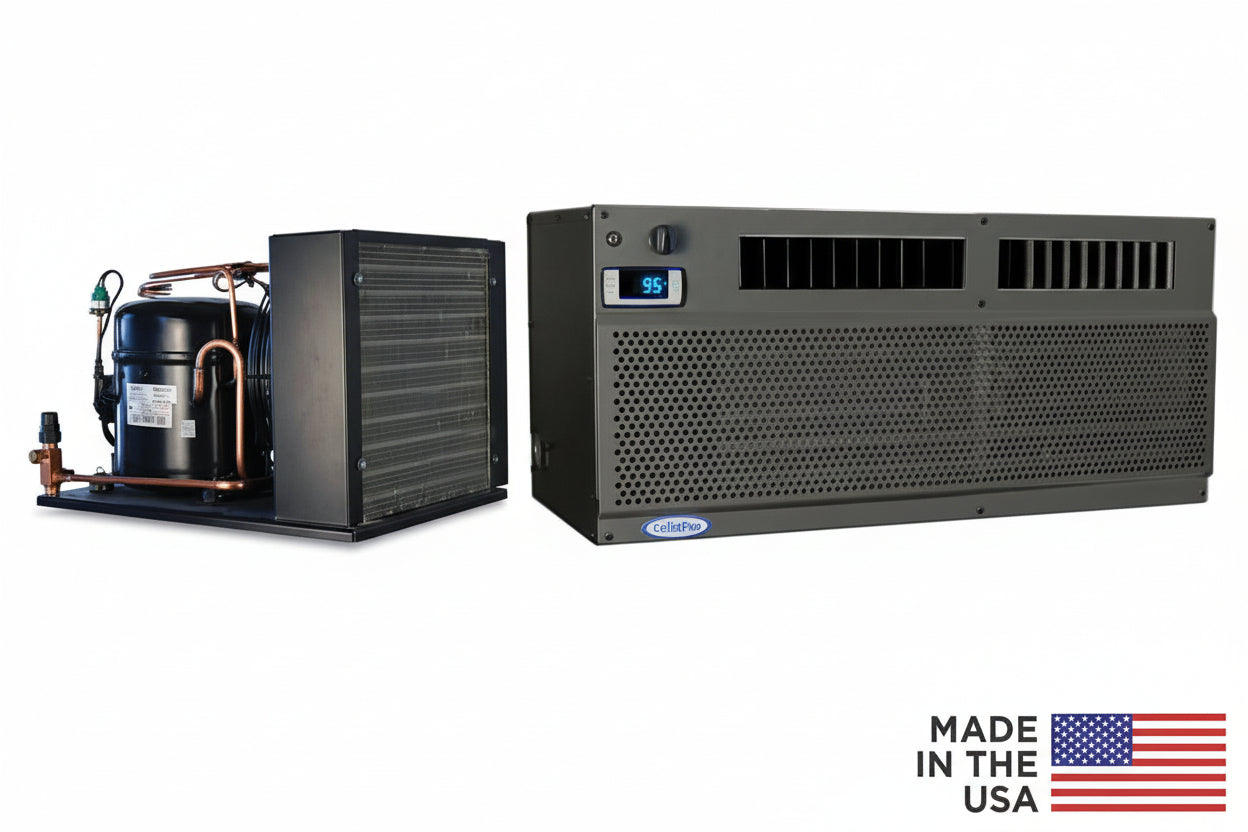

Split QC 25 Ft Horiz 1/3 Ton 3000Shqc #19251
CellarPro 3000Shqc-EC Quickconnect 25-ft Cooling Unit (P/N 19251). NOW WITH ENERGY-EFFICIENT EC FANS! CellarPro engineered the Mini-Split 3000Shqc-EC cooling system to provide maximum cooling power and adjustable humidity control with fast, easy installation for cellars up to 600 cubic feet. Split refrigeration systems separate the evaporator from the condensing unit, allowing the noise and heat from the condensing unit to be located away from interior living areas. All air-cooled refrigeration equipment requires fresh air intake to dissipate the heat generated by the cooling unit. The fresh air intake CANNOT come from the wine cellar space - it must come from space outside the cellar. Suitable for internal or external installations, the Mini-Split 3000Shqc-EC includes a variable-speed fan on the evaporator with a low setting for quieter operation and a high setting for maximum power.
Size:

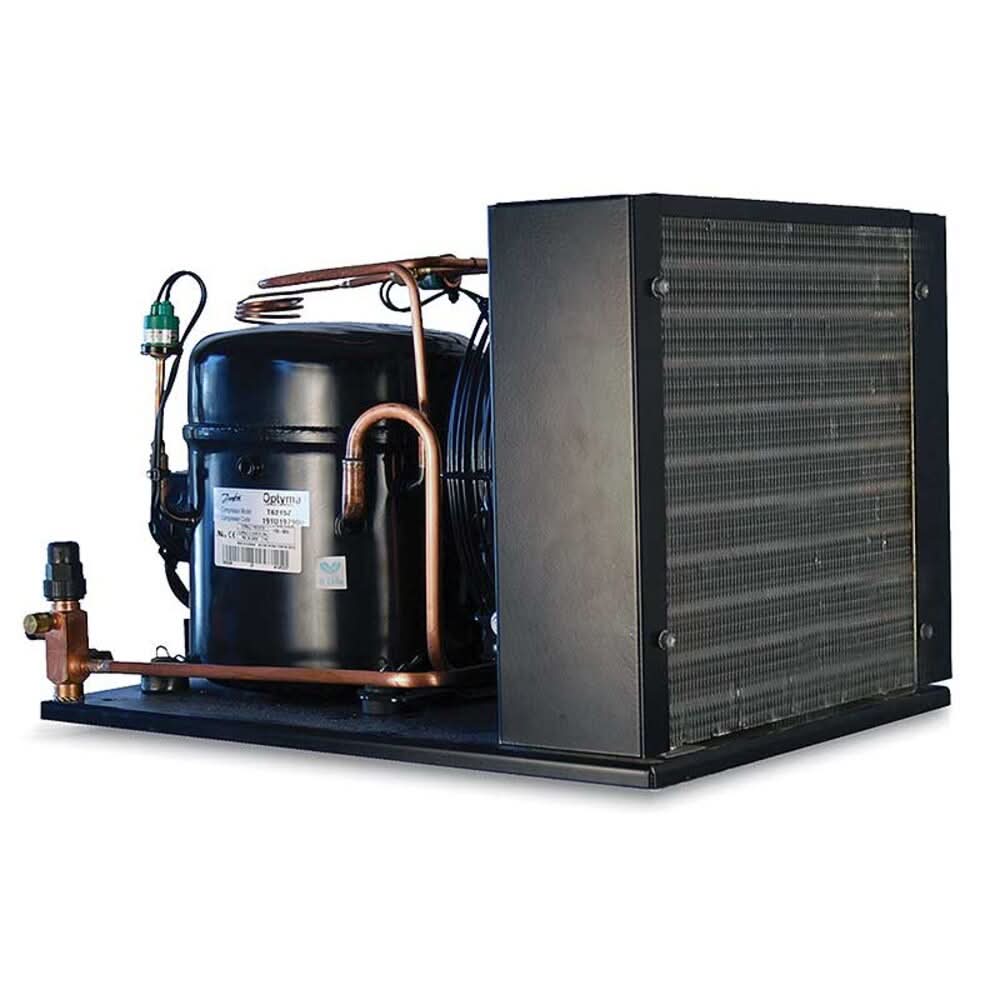

Condensing Unit Dimensions:
- 45 lbs
- 19 3/8w x 23 1/4d x 18 3/4h(in)

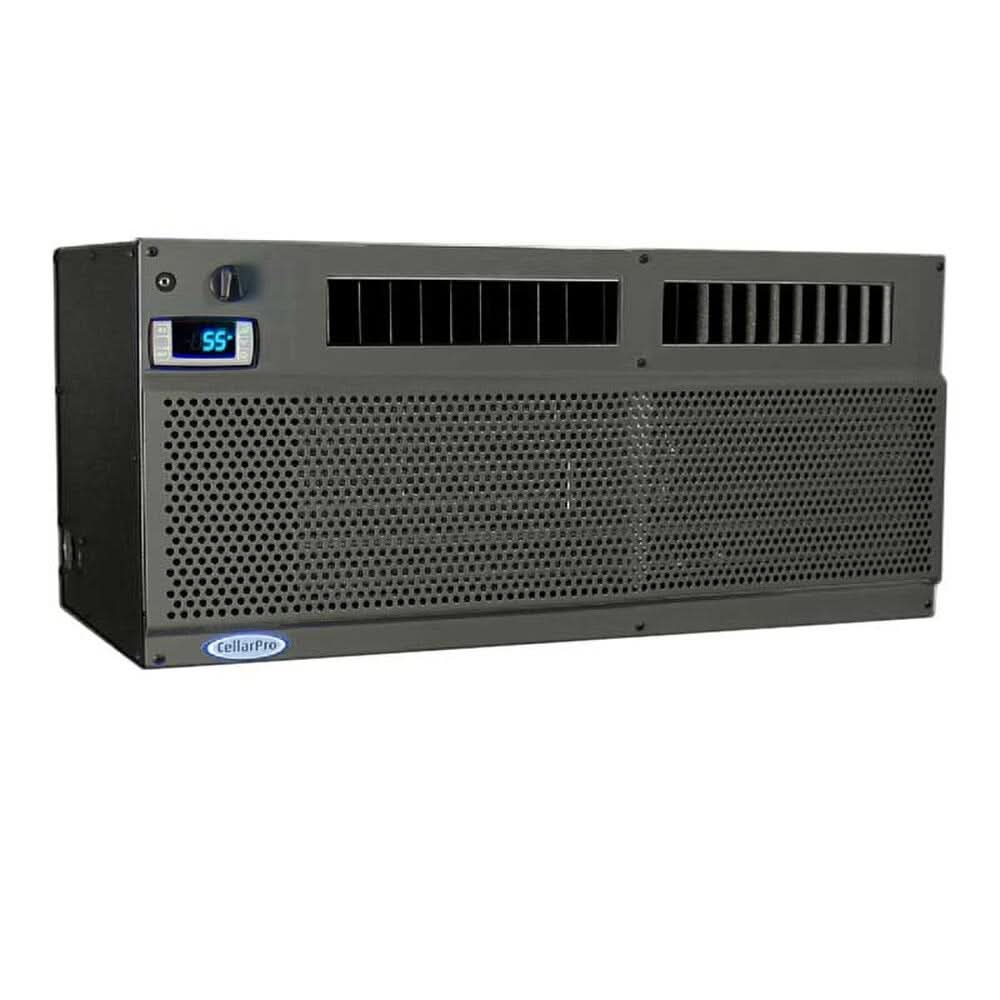

Evaporator Unit Dimensions:
- 65 lbs
- 30 3/8w x 14 1/4d x 13 1/4h (in)
Shipping Weight: 144 lbs
Power/Rating:
115V AC / 60 Hz
System Amps:
- Dedicated 15-amp circuit is required to power the condensing unit.
- Shared 15-amp circuit can be used to power the evaporator.
- Startup: 28.2 Amps
- Unit Amp Rating: 5.6 Amps (high fan speed)
BTUH @ 55F / Evaporator Decibels
- Low Fan Speed: 2144 / 51 dbA
- Med Fan Speed: 2398 / 55 dbA
- High Fan Speed: 2491 / 63 dbA
- 1/3 Ton Nominal
Condensing Unit Decibels
- Indoor: 64
- Outdoor: 62
Capacity: 2491 BTUH @ 55F
Sizing Table: Click here to view sizing table
Warranty:
- 2 Years (Entire System)
- Optional Extended Warranty (sold separately.)
Click on one of the following links for more information:
Details

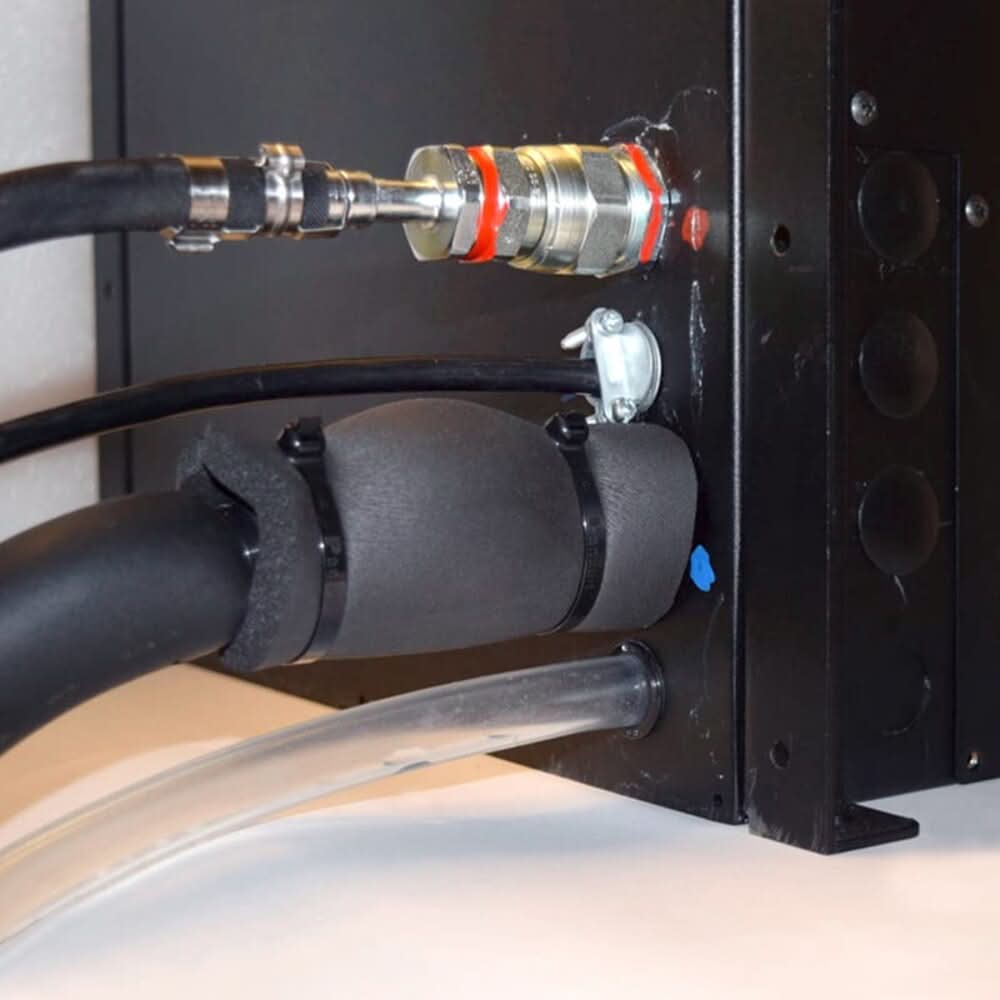

• Available Valve Connection options: Rear, Left Side
• Available Power Cord Exit options: Rear, Left Side
• Available Drain Line options: Rear, Bottom
Financing Disclaimer:
If you finance your purchase with Affirm, your first payment is due approximately two weeks after your purchase is finalized. Please note that due to extended delivery times, your loan payment(s) may be due before you receive your purchase. Learn more about financing.
Split QC 25 Ft Horiz 1/3 Ton 3000Shqc #19251
$7,595.00
/
