Self Contained Beer 1/4 Ton 1800XTS #2176

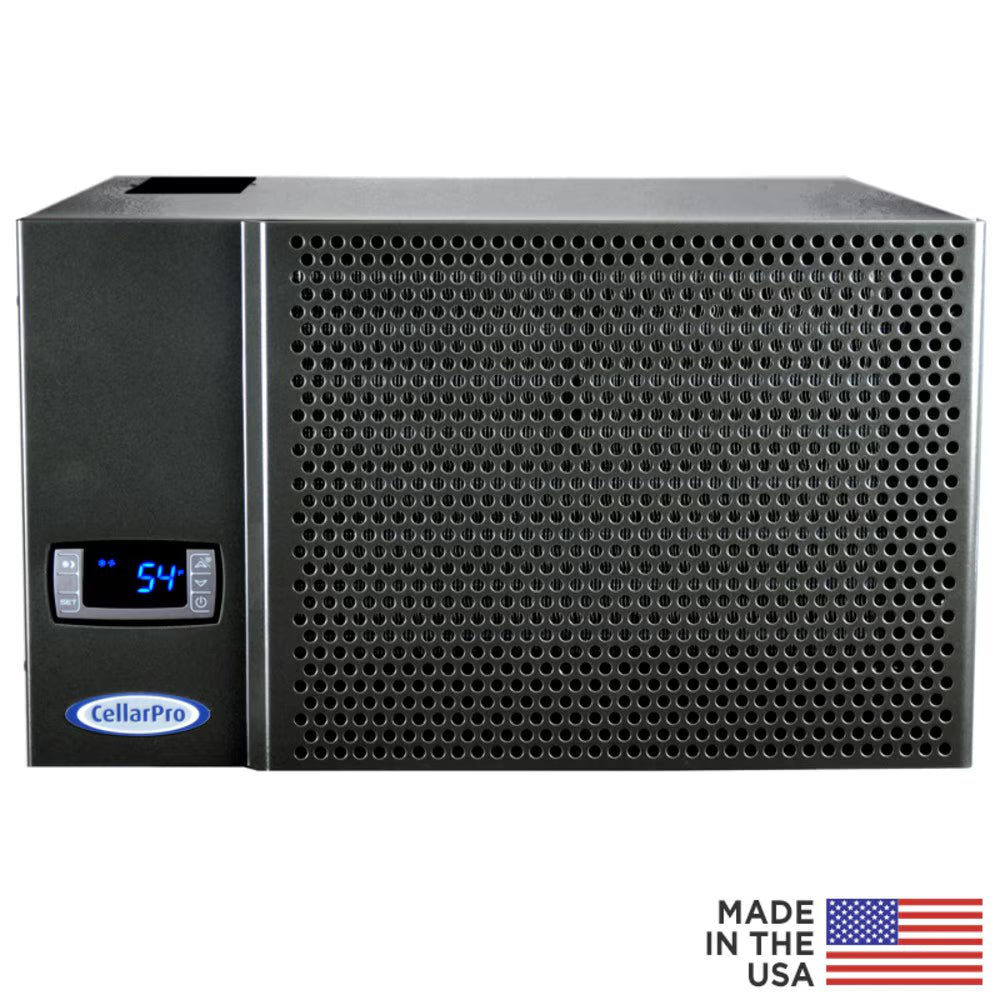

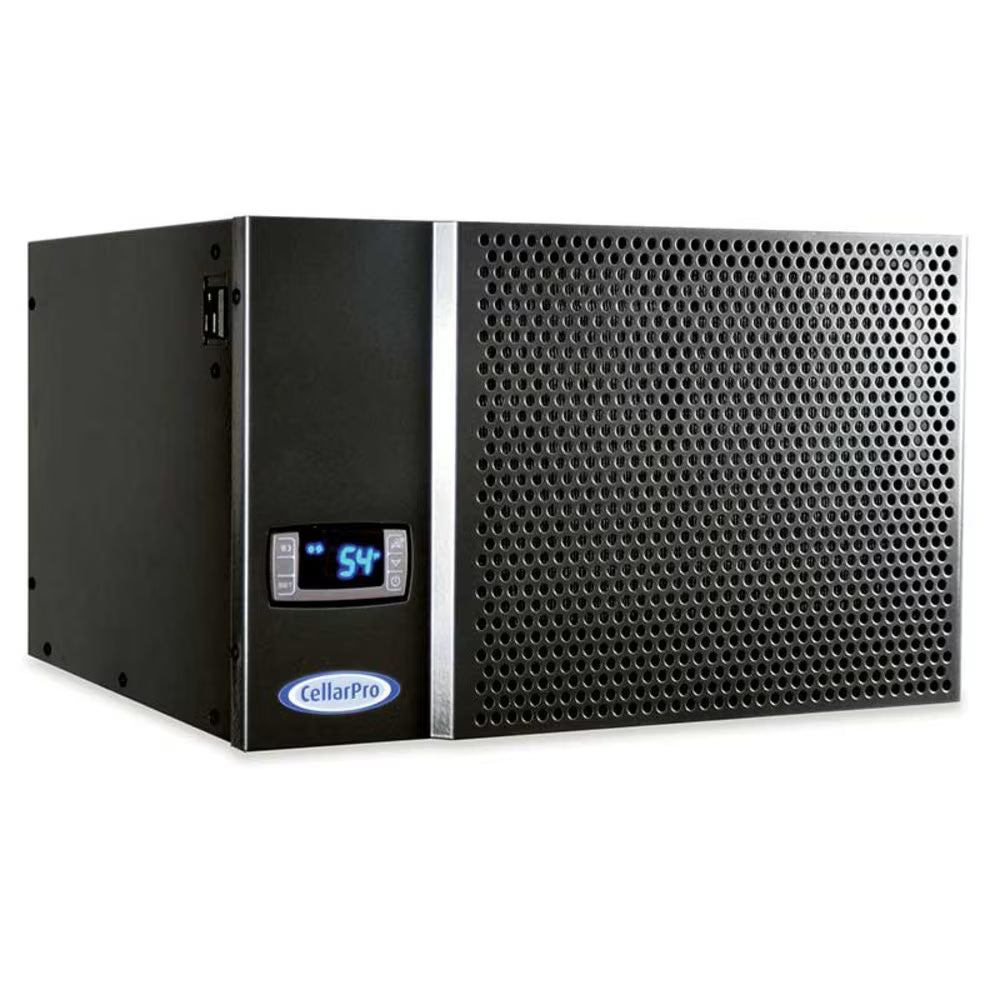

CellarPro 1800XTS-ECX-B Cooling Unit (P/N 2176). NOW WITH ENERGY-EFFICIENT EC FANS! CellarPro's 1800XTS-ECX-B cooling unit is engineered to provide advanced cooling power and adjustable humdity control for ideal beer storage. 1800XTS-ECX-B units use powerful compressors and oversized coils to generate maximum BTUH without stripping moisture from the environment.

All air-cooled refrigeration equipment requires fresh air intake to dissipate the heat generated by the cooling unit. The fresh air intake CANNOT come from the wine cellar space - it must come from space outside the cellar. Designed for indoor use only, 1800XTS-ECX-B units can operate in environments ranging from 95F to 40F out of the box. To operate the unit in colder temperatures, please see modifications listed on the Options & Upgrades tab.

*Assuming R19 insulation throughout the cellar, 55F inside the cellar and 85F outside the cellar.

Size: 18w x 16 1/2d x 10 1/2h (in)

Weight: 60 lbs

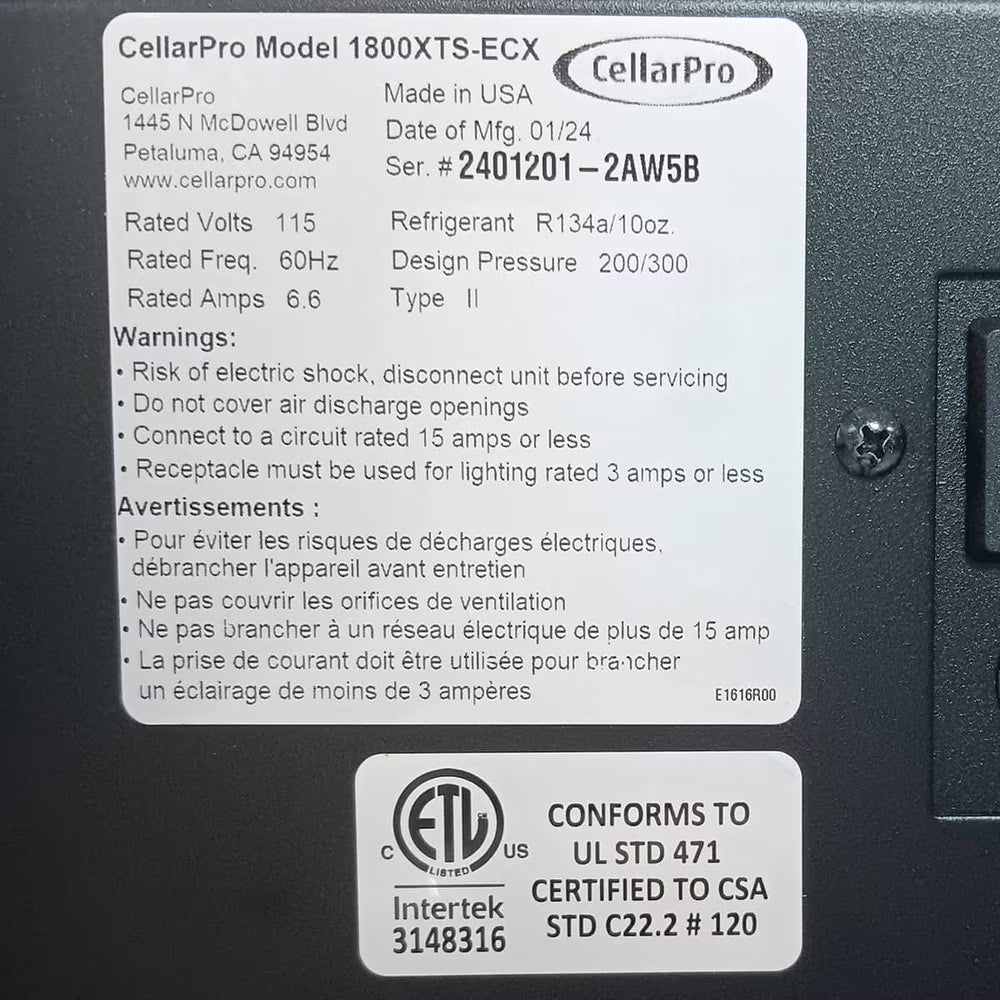

Power/Rating:
115V AC / 60 Hz
Compressor Amps:
- Running: 3.6 Amps
- Startup: 22.2 Amps
- Total Watts: 319
- Required: Dedicated 15-Amp Circuit
- Recommended: Surge Protector
Decibels: 48 dBA (Rear)

Capacity: 1624 BTUH @ 45F

Sizing Table: Click here to view sizing table

Warranty Resources
- Warranty Overview
- Limited Warranty - 2 Years (Entire System) / 5 Years (Compressor)

Click on one of the following links for more information:

- Sizing Table

- Owner's Manual
- Product Brochure

Installation Diagrams
- Configuration Options
- Rear Drawings - As Ducted
- Mounting Clips
- Shelf

Operating Specs
- Monthly Operating Cost
- Sound Level

Dimensions:
- Front, Rear and Side Views

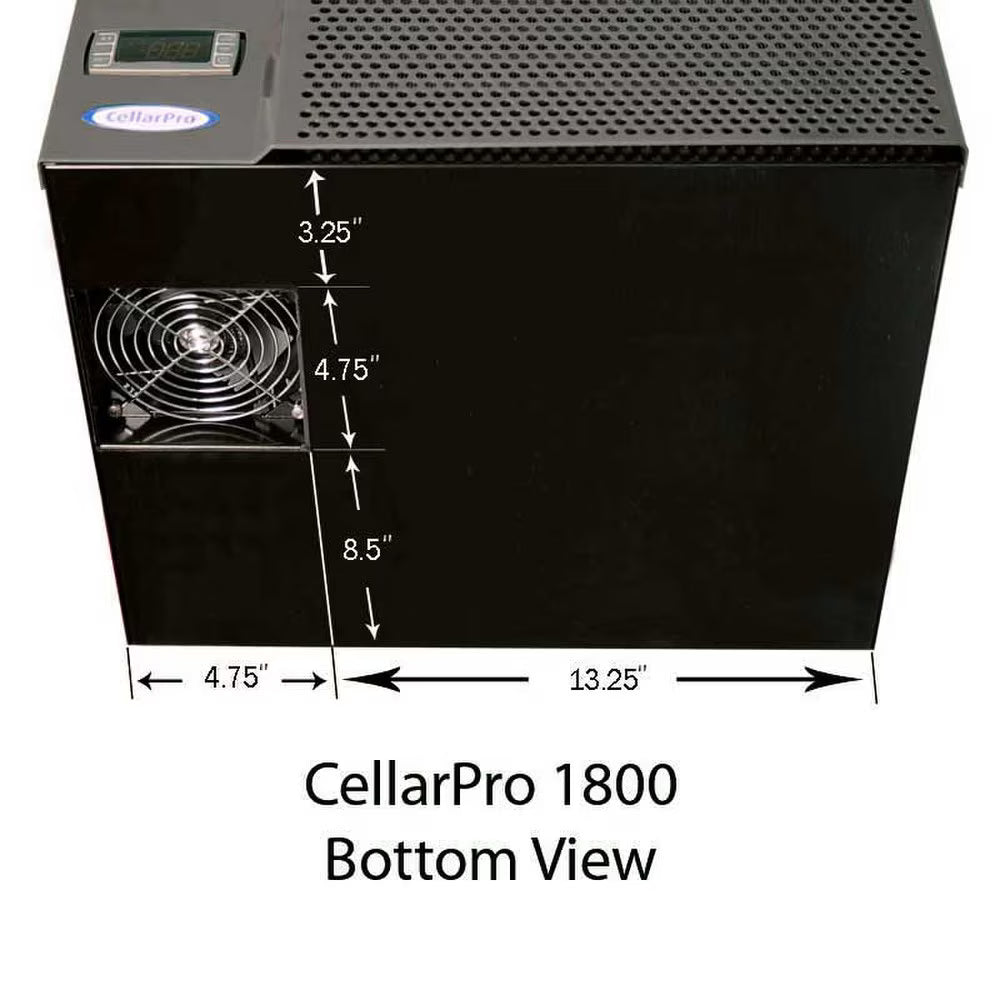

- Top & Bottom View
