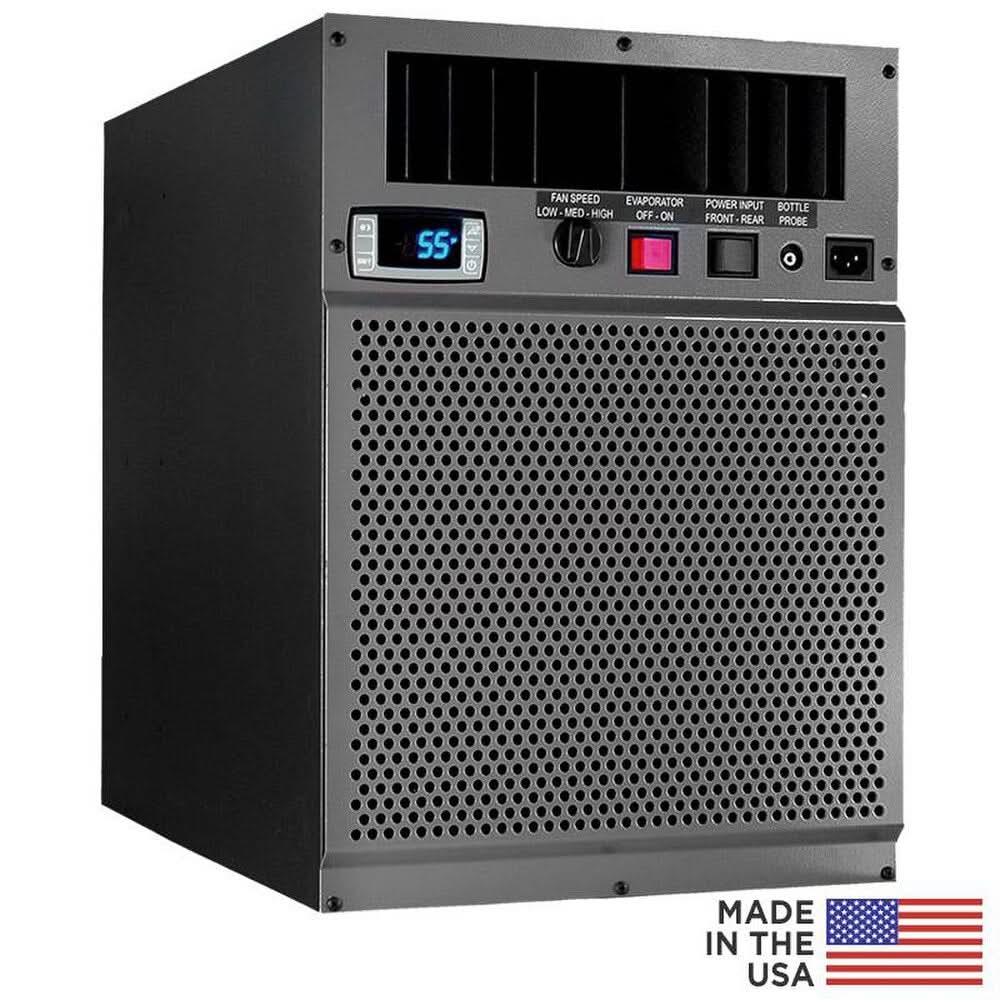

Self Contained A/V 4200VSi #2181

CellarPro 4200VSi-ECX-AV Cooling Unit (P/N 2181). NOW WITH ENERGY-EFFICIENT EC FANS! CellarPro's 4200VSi-ECX-AV cooling unit is engineered to maintain ideal temperature conditions in Audio-Visual equipment rooms. 4200VSi-ECX-AV uses an optimized compressor and oversized coils to generate cool, consistent 75-degree temperatures with minimal noise.

Designed for indoor use only, 4200VSi-ECX-AV units can operate in environments ranging from 110F to 40F out of the box.

All air-cooled refrigeration equipment requires fresh air intake to dissipate the heat generated by the cooling unit. The fresh air intake CANNOT come from the wine cellar space - it must come from space outside the cellar. The unit can be remotely located and ducted to/from the cellar using our cold-side duct hood, or located through a cellar wall (with or without a decorative grill - not included.)

Size: 14 1/8w x 25 1/8d x 19 5/8h (in)

Weight: 155 lbs

Power/Rating:
115V AC / 60 Hz
Compressor Amps:
- Common dedicated 15-amp circuit is required to power the unit.
- Startup: 42.0 Amps
- Unit Amp Rating: 10.5 Amps (high fan speed)
- 1/2 Ton Nominal
- Total Watts: 578 (med fan speed)

Capacity: 5265 BTUH @ 75F*

Sizing Table: Click here to view sizing table

Warranty Resources
- Warranty Overview
- Limited Warranty - 2 Years (Entire System) / 5 Years (Compressor)

Click on one of the following links for more information:

• Sizing Table
• Monthly Operating Cost
• Sound Performance
• Cut Sheet
• Front Ducted Cut Sheet
• Framing Diagram
• Installation Diagrams
• Configuration Options
• Product Brochure
• Owner's Manual
