Self Contained A/V 1/8 Ton 1800QTL #2180

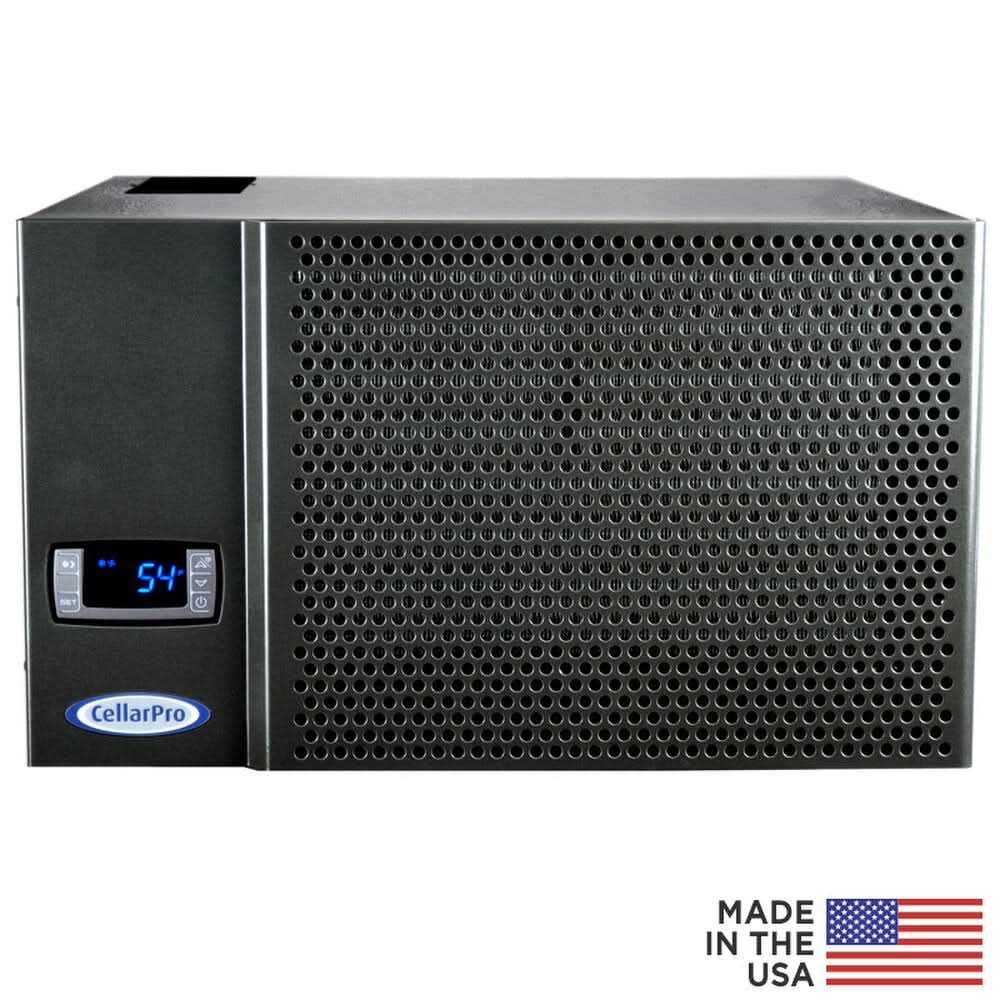

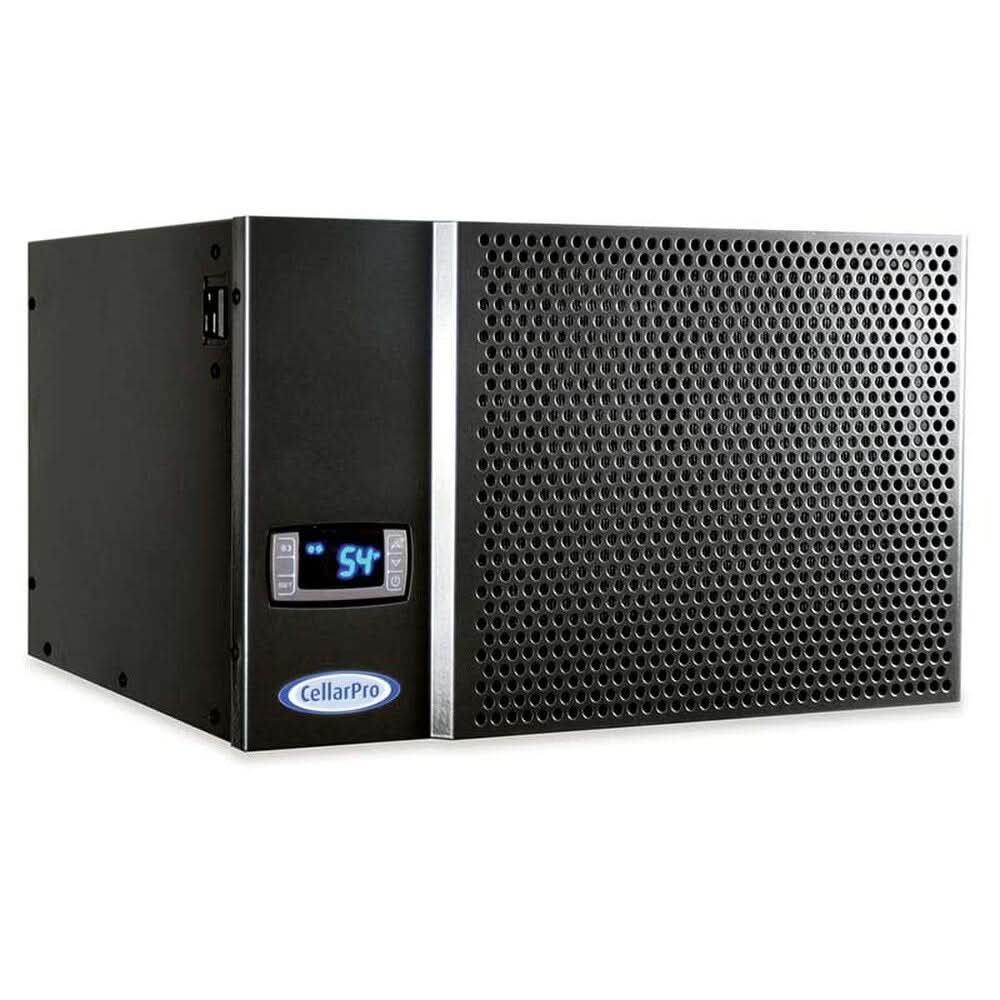

CellarPro 1800QTL-ECX-AV Cooling Unit (P/N 2180). NOW WITH ENERGY-EFFICIENT EC FANS! CellarPro's 1800QTL-ECX-AV cooling unit is engineered to maintain ideal temperature conditions in Audio-Visual equipment rooms. 1800QTL-ECX-AV uses an optimized compressor and oversized coils to generate cool, consistent 75-degree temperatures with minimal noise.

All air-cooled refrigeration equipment requires fresh air intake to dissipate the heat generated by the cooling unit. The fresh air intake CANNOT come from the AV room - it must come from space outside the AV room. Designed for indoor use only, 1800QTL-ECX-AV units can operate in environments ranging from 95F to 40F out of the box.

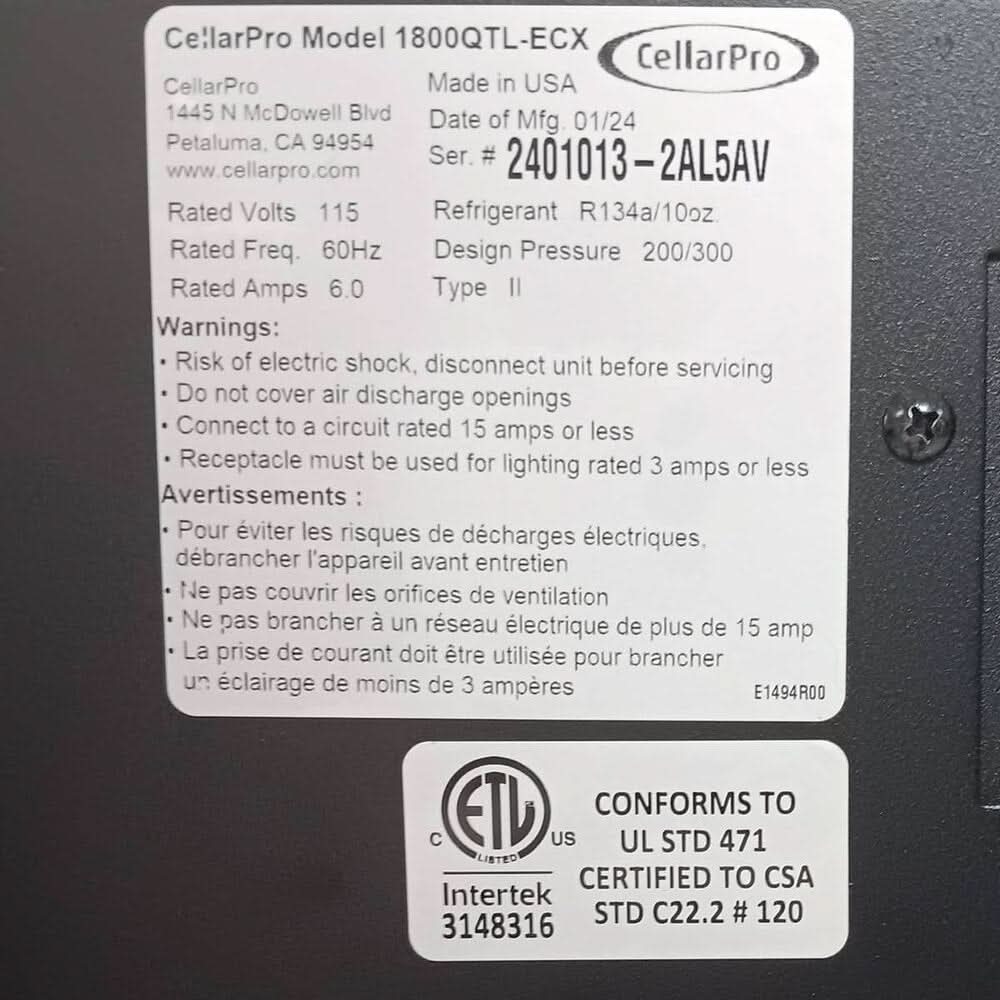

Power/Rating:
115V AC / 60 Hz
Compressor Amps:
- Running: 2.4 Amps
- Startup: 14.2 Amps
- Total Watts: 191
- Requires: Dedicated 15-Amp Circuit
- Recommended: Surge Protector
Decibels: 41 dBA (Rear)

Capacity: 1584 BTUH @ 75F

Sizing Table: Click here to view sizing table

Warranty Resources
- Warranty Overview
- Limited Warranty - 2 Years (Entire System) / 5 Years (Compressor)

Click on one of the following links for more information:

- Sizing Table
- Owner's Manual
- Product Brochure

Installation Diagrams
- Configuration Options
- Rear Drawings - As Ducted
- Mounting Clips
- Shelf

Operating Specs
- Monthly Operating Cost
- Sound Level

Dimensions:
- Front, Rear & Side Views

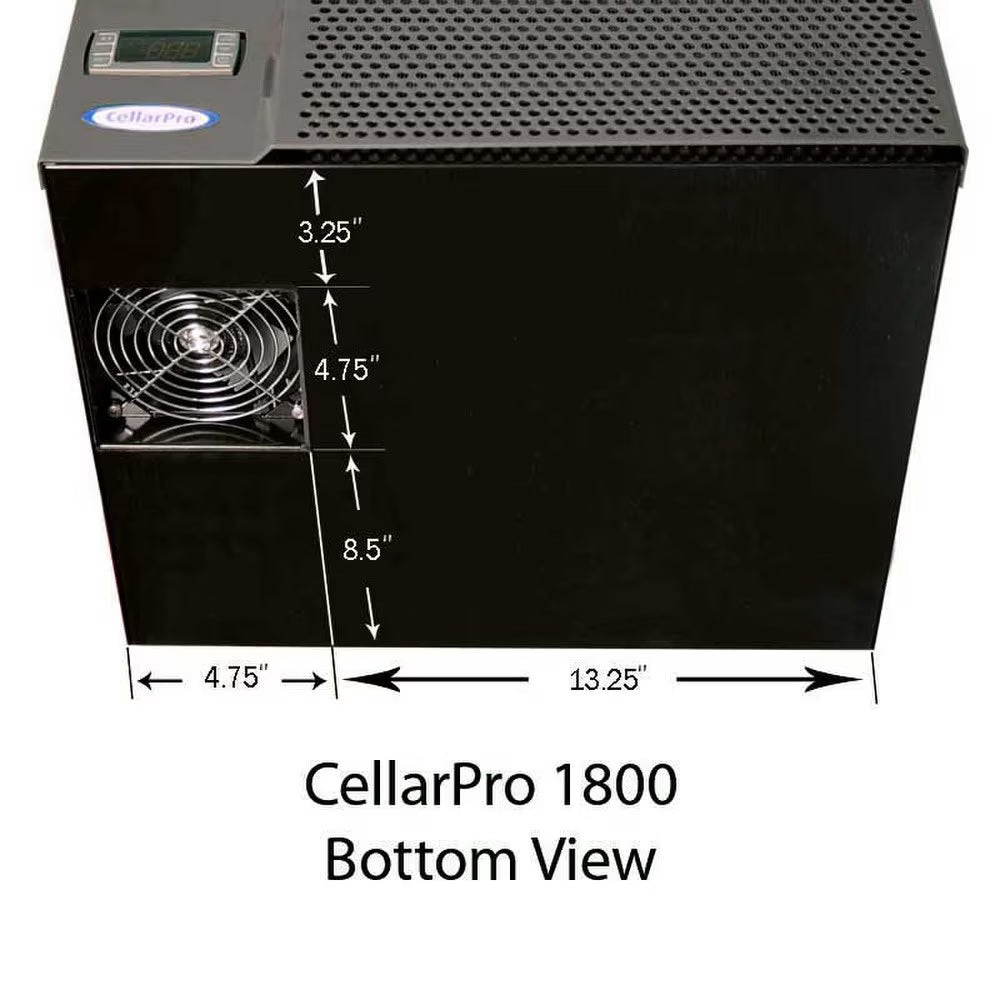

- Top & Bottom View
