Product Details

Features:

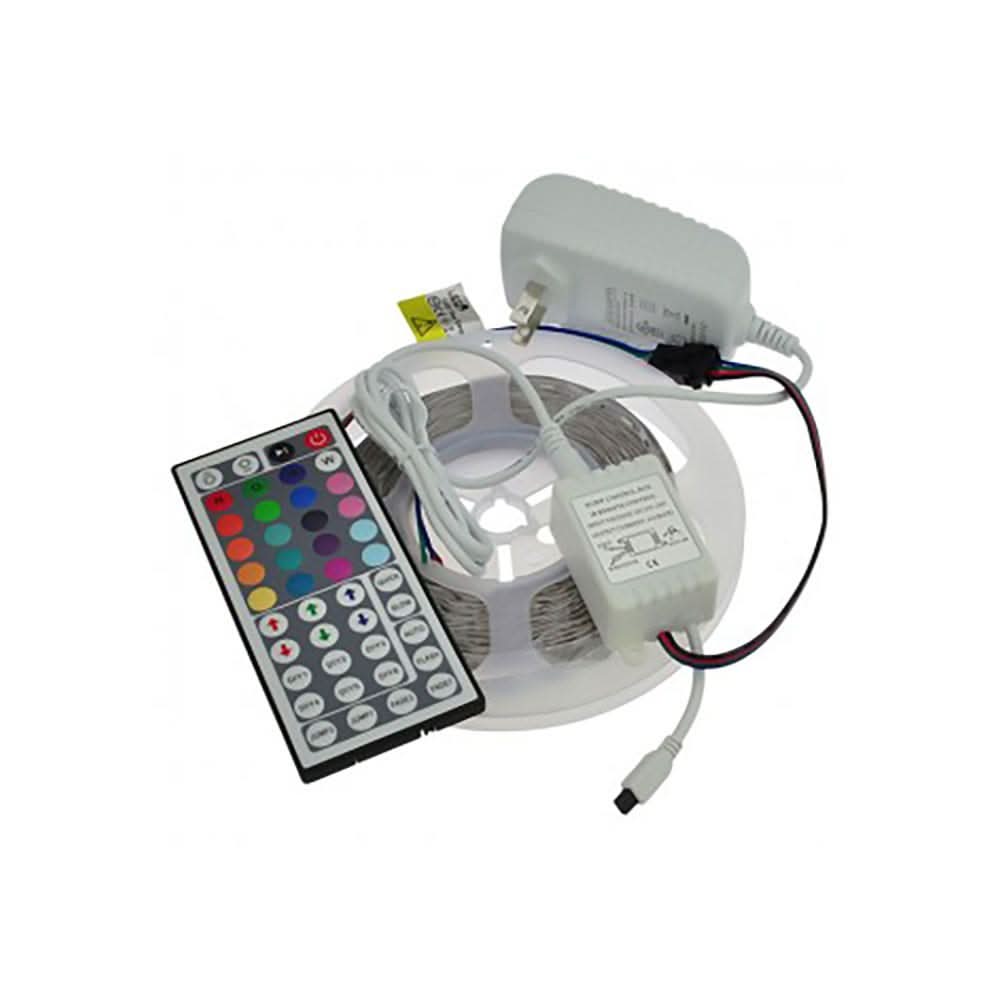

  • Complete kit includes: LED strip, controller with wireless IR remote, and power supply
  • Set static colors, adjust brightness, select various auto color-changing modes via wireless IR remote
  • The LED strip is cuttable every 3 LEDs, approx. every 4", at the designated cut marks to fit various length requirements
  • LED strip cut sections are linkable by directly soldering wires
  • Adhesive back on LED strip for easy installation on dry, flat, smooth, non-porous surfaces

Description: The entire roll is 16.4 feet (5 meters) in length, and is cuttable and re-linkable with optional connectors or directly soldering wires. The controller allows the user to select static colors, adjust brightness, and select various color-changing modes. Great for accent lighting.

Wiring:

  • Unroll LED strip completely.
  • Any exposed wires on the other end of the LED strip must not touch one another (or any metal object), creating a short.
  • Connect the 4-pin connector of controller to that of the LED strip.
  • Connect DC jack of power supply to controller.
  • Remove the plastic seal in the battery compartment of the wireless remote.
  • Double check that all connections are correct and secure, then plug in power supply to power outlet.

Note:

  • While the included controller can handle the power requirement of two such strips, the power supply only has the capacity to drive a single strip.
  • Avoid exposure to direct sunlight.
  • Minimum bending radius: 5cm (2").
  • Unused wires of LED strip must be isolated to prevent potential short circuit.
  • Unroll LED strip completely before powering on. T
  • est all components before cutting or permanently mounting the strip.
  • Do not lengthen LED strip by directly connecting additional strips to it; additional lengths should be wired in parallel (controller and power supply must be of adequate capacity).

LED Strip Lighting Kit

SKU: LEDSTRIPKIT
Regular price $99.00
Unit price
per
Shipping calculated at checkout.

Handmade in America

Lifetime Warranty

Product Details

Features:

  • Complete kit includes: LED strip, controller with wireless IR remote, and power supply
  • Set static colors, adjust brightness, select various auto color-changing modes via wireless IR remote
  • The LED strip is cuttable every 3 LEDs, approx. every 4", at the designated cut marks to fit various length requirements
  • LED strip cut sections are linkable by directly soldering wires
  • Adhesive back on LED strip for easy installation on dry, flat, smooth, non-porous surfaces

Description: The entire roll is 16.4 feet (5 meters) in length, and is cuttable and re-linkable with optional connectors or directly soldering wires. The controller allows the user to select static colors, adjust brightness, and select various color-changing modes. Great for accent lighting.

Wiring:

  • Unroll LED strip completely.
  • Any exposed wires on the other end of the LED strip must not touch one another (or any metal object), creating a short.
  • Connect the 4-pin connector of controller to that of the LED strip.
  • Connect DC jack of power supply to controller.
  • Remove the plastic seal in the battery compartment of the wireless remote.
  • Double check that all connections are correct and secure, then plug in power supply to power outlet.

Note:

  • While the included controller can handle the power requirement of two such strips, the power supply only has the capacity to drive a single strip.
  • Avoid exposure to direct sunlight.
  • Minimum bending radius: 5cm (2").
  • Unused wires of LED strip must be isolated to prevent potential short circuit.
  • Unroll LED strip completely before powering on. T
  • est all components before cutting or permanently mounting the strip.
  • Do not lengthen LED strip by directly connecting additional strips to it; additional lengths should be wired in parallel (controller and power supply must be of adequate capacity).
